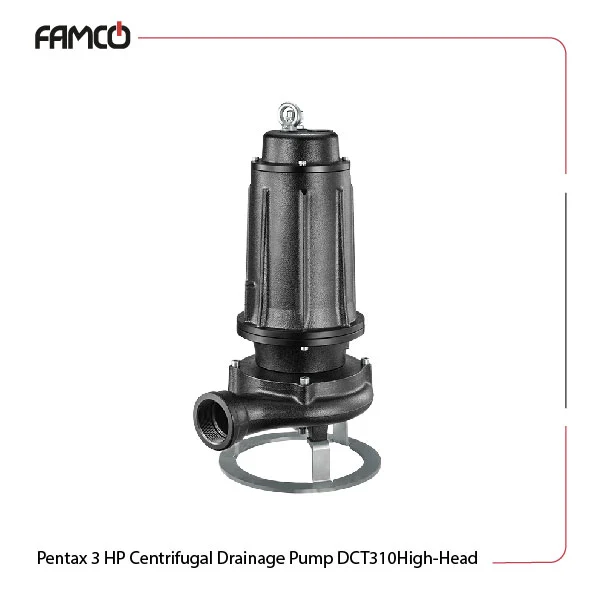

Pentax 3 HP Centrifugal Drainage Pump DCT310High-Head Specifications
This product operates efficiently within a temperature range of 0 to 40 degrees Celsius. This Pentax pump collection offers solids free passage up to 10 mm. The maximum immersion depth is 20 meters. Equipped with two poles and an insulation class of F, this submersible pump guarantees reliable performance. The protection degree is IP X8, meaning these drainage pumps are well-protected against water ingress. It operates at a frequency of 50 Hz and has a power output of 2.2 kW, equivalent to 3 HP. The maximum flow rate is 42 cubic meters per hour, and it can achieve a head of 5.9 to 26.4 meters. Its versatility in voltage options allows for easy integration into existing systems by enhancing its usability across different setups. The product supports multiple three-phase voltage options: 230, 400, 230/400, and 400/690 volts.
| Specification | Value |
| Max temperature (°C) | 0-40 |
| Max solids size (mm) | 10 |
| Maximum immersion (m) | 20 |
| No. of Poles | 2 |
| Insulation Class | F |
| Protection degree | IP X8 |
| Frequency (Hz) | 50 |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Max. flow rate (m3/h) | 42 |
| Head (m) | 5.9-26.4 |
| Three-phase voltage (V) | 230, 400, 230-400, 400-690 |
Pentax 3 HP Centrifugal Drainage Pump DCT310High-Head Materials
- Pump body: cast iron
- Impeller: cast iron
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic-graphite
Pentax 3 HP Centrifugal Drainage Pump DCT310High-Head Technical Data
| m3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 39 | 42 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 |
| Head (m) | 26.4 | 25.4 | 24.2 | 22.4 | 19.9 | 16.4 | 12.1 | 9.1 | 5.9 |

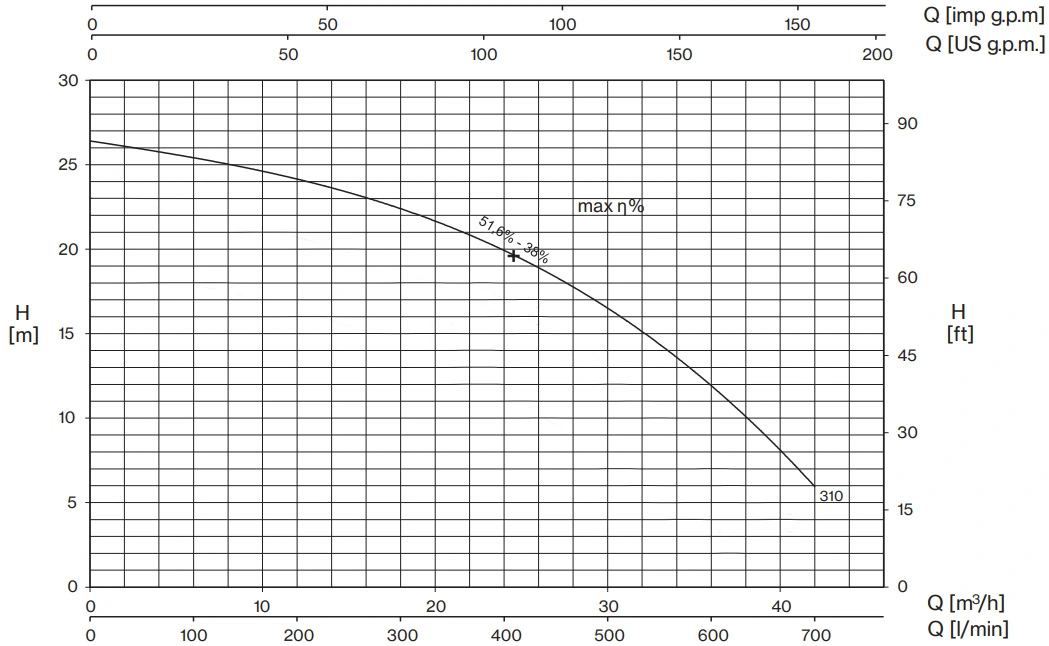

Pentax 3 HP Centrifugal Drainage Pump DCT310High-Head Performance Curve
Pentax 3 HP Centrifugal Drainage Pump DCT310High-Head Applications
- Water transfer in industrial settings
- Irrigation systems for agriculture
- Drainage in construction sites
- Cooling systems in manufacturing processes
Pentax 3 HP Centrifugal Drainage Pump DCT310High-Head Benefits
- High efficiency with a maximum flow rate of 42 m3/h
- Durable design with IP X8 protection for harsh environments
- Versatile voltage options for easy integration
- Reliable performance with a maximum immersion depth of 20 m
Pentax 3 HP Centrifugal Drainage Pump DCT310High-Head Price List
| No. | Name | Price |
| 1 | Pentax 3 HP Centrifugal Drainage Pump DCT310High-Head Price | Contact us |
