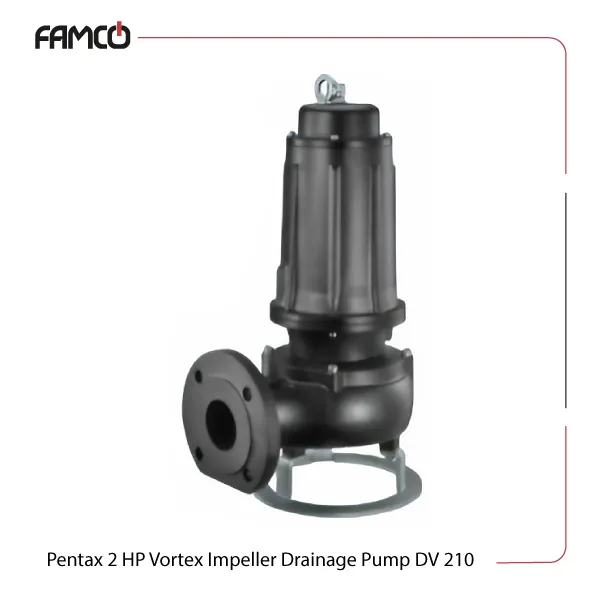

Pentax 2 HP Vortex Impeller Drainage Pump DV 210 Specifications
This here is a 2 HP pump manufactured by Pentax with a power of 1.5 kW, equivalent to 2 HP. It supports multiple voltage options, including three-phase configurations at 230V, 400V, 230/400V, and 400/690V, as well as a single-phase supply at 230V. The device runs at a frequency of 50 Hz and operates with consistent performance. It can lift water to 13.7 meters and handle a maximum flow rate of 850 liters per minute, making it efficient for water transfer tasks. The pump’s body and impeller are constructed from durable cast iron, providing strength and corrosion resistance. To reach maximum sealing technology, the presented Pentax drainage pump features a silicon carbide mechanical seal on the pump side and a ceramic-graphite seal on the motor side, ensuring unity of performance in this Pentax pump. The pump can operate at a maximum immersion depth of 20 meters and allows for a free solid passage of up to 50 mm, suitable for handling solids in liquids. It is designed to work with liquids at temperatures between 0 and 40 degrees Celsius. The device has a two-pole motor, with an insulation class rated F for safety and efficiency. Its protection degree is IPX8, indicating excellent waterproofing, ideal for submerged applications. Overall, this pump is built for durability, versatility, and high performance in various water management tasks.
| Specification | Value |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Three-phase voltage (V) | 230, 400, 230/400, 400/690 |
| Single-phase voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Max. head (m) | 13.7 |
| Max. flow rate (l/min) | 850 |
| Pump body | cast iron |
| Impeller | cast iron |
| Mechanical seal on pump side | silicon carbide |
| Mechanical seal on motor side | ceramic-graphite |
| Max. immersion depth (m) | 20 |
| Max. free solid passage (mm) | 50 |
| Max. liquid temperature (° C) | 0-40 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IPX8 |

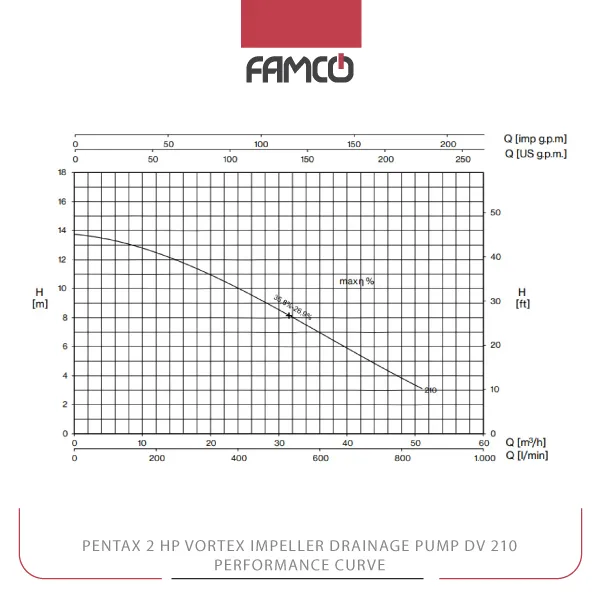

Pentax 2 HP Vortex Impeller Drainage Pump DV 210 Performance Data
| m³/h | 0 | 12 | 24 | 36 | 42 | 48 | 51 |
| l/min | 0 | 200 | 400 | 600 | 700 | 800 | 850 |
| Head (m) | 13.7 | 12.6 | 9.9 | 7.0 | 5.4 | 3.8 | 3.1 |

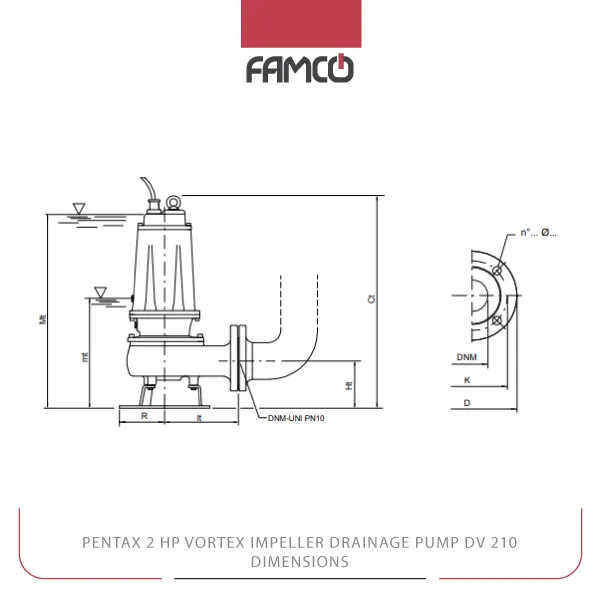

Pentax 2 HP Vortex Impeller Drainage Pump DV 210 Dimensions
| Dimensions (mm) | Weight (kg) | |||||||
| Ct | Ht | R | It | mt | Mt | DNM | Single-phase | 40.5 |
| 551 | 123 | 117 | 191 | 243 | 513 | 65 | Three-phase | 41.5 |
Pentax 2 HP Vortex Impeller Drainage Pump DV 210 Applications
- Sump and drainage pumping
- Irrigation systems
- Water transfer in industrial settings
- Flood control and emergency water removal
Pentax 2 HP Vortex Impeller Drainage Pump DV 210 Benefits
- High durability with cast iron construction
- Versatile voltage options for different setups
- Reliable sealing for long-term use
- Suitable for submerged operation up to 20 meters
Pentax 2 HP Vortex Impeller Drainage Pump DV 210 Price List
| No. | Name | Price |
| 1 | Pentax 2 HP Vortex Impeller Drainage Pump DV 210 Price | Contact us |
