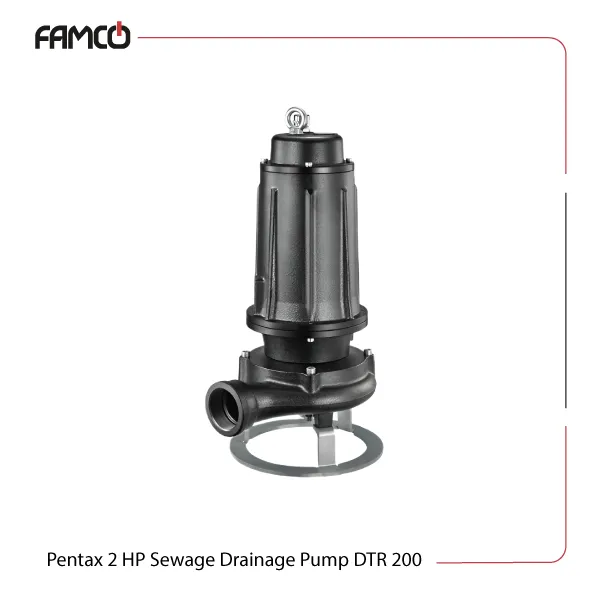

Pentax 2 HP Sewage Drainage Pump DTR 200 Specifications
This pump features a 1.5 kW (2 HP) motor, suitable for various power supplies, including single-phase 230V and three-phase options up to 690V. It operates at a frequency of 50Hz and has a maximum head of 22.1 meters, making it effective for lifting liquids over considerable heights. The pump can handle a flow rate of up to 300 liters per minute, ideal for demanding applications. Built with a durable cast-iron pump body and impeller, it ensures longevity and resistance to wear. If you take a moment to check out this Pentax pump’s specs below, you will see how durable it actually is. The mechanical seals are made of silicon carbide on the pump side and ceramic-graphite on the motor side, providing reliable sealing and reducing leaks. It can be submerged up to 20 meters deep and works efficiently within a liquid temperature range of 0 to 40°C. The Pentax drainage pump offered to you here features a two-pole motor with an insulation class F with optimal and maximized thermal protection. Its protection degree is IPX8, suitable for continuous underwater operation. The grinder component is made of treated stainless steel, capable of handling solid waste and debris, making this pump suitable for wastewater and sewage applications. Overall, this pump combines robustness, efficiency, and versatility for various industrial and residential uses.
| Specification | Value |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Three-phase voltage (V) | 230, 400, 230/400, 400/690 |
| Single-phase voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Max. head (m) | 22.1 |
| Max. flow rate (l/min) | 300 |
| Weight (kg) | 38.5 |
| Pump body | cast iron |
| Impeller | cast iron |
| Mechanical seal on pump side | silicon carbide |
| Mechanical seal on motor side | ceramic-graphite |
| Max. immersion depth (m) | 20 |
| Max. liquid temperature (°C) | 0-40 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IPX8 |
| Grinder | treated stainless steel |

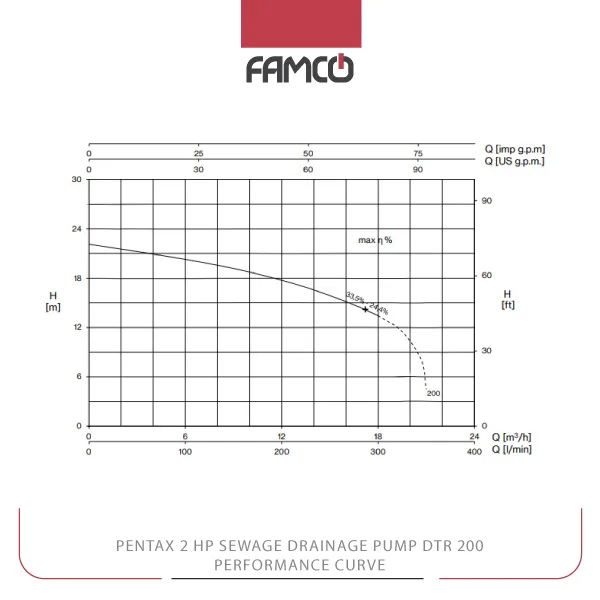

Pentax 2 HP Sewage Drainage Pump DTR 200 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 13.2 | 15 | 18 |
| l/min | 0 | 50 | 100 | 150 | 200 | 220 | 250 | 300 |
| Head (m) | 22.1 | 21.3 | 20.3 | 19.1 | 17.7 | 17.1 | 16 | 13.4 |

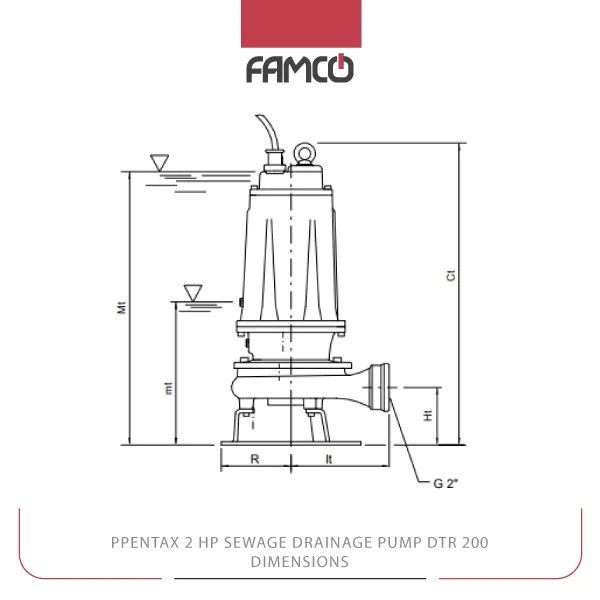

Pentax 2 HP Sewage Drainage Pump DTR 200 Dimensions
| Dimensions (mm) | Weight (kg) | ||||||
| Ct | Ht | R | It | mt | Mt | DNM | 38.5 |
| 513 | 102 | 117 | 174 | 205 | 475 | 2”G | |
Pentax 2 HP Sewage Drainage Pump DTR 200 Applications
- Wastewater and sewage pumping
- Drainage systems in industrial facilities
- Flood control and water removal
- Sewage treatment plants
Pentax 2 HP Sewage Drainage Pump DTR 200 Benefits
- High durability with cast iron construction
- Reliable sealing with silicon carbide and ceramic-graphite seals
- Efficient operation at various voltages and depths
- Suitable for handling solids with stainless steel grinder
Pentax 2 HP Sewage Drainage Pump DTR 200 Price List
| No. | Name | Price |
| 1 | Pentax 2 HP Sewage Drainage Pump DTR 200 Price | Contact us |
