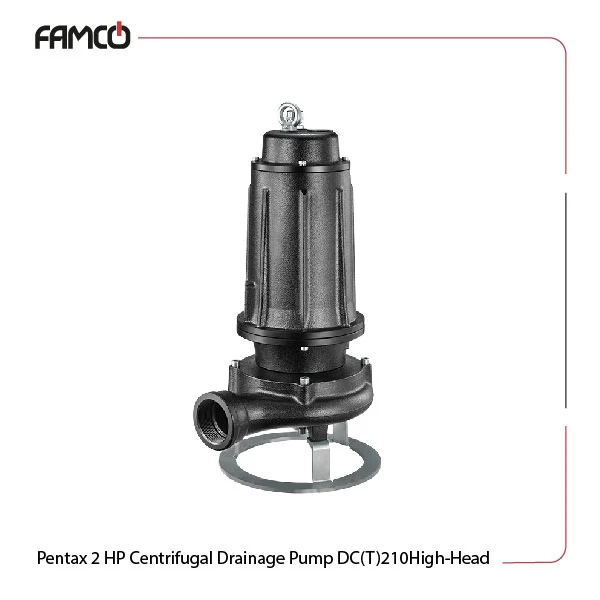

Pentax 2 HP Centrifugal Drainage Pump DC(T)210High-Head Specifications
This product is designed to operate efficiently within a temperature range of 0 to 40 degrees Celsius. Its versatility allows it to be used in different setups, catering to both single-phase and three-phase power systems. This makes it a great choice for users looking for efficiency and durability in their pumping solutions. Pentax pumps stand out with considerable free passage of up to 10 mm. The maximum immersion depth is 20 meters, so as a drainage pump it can take care of diverse installation requirements. With 2 poles and an insulation class of F, this submersible pump ensures safety and reliability. The protection degree is IP X8, meaning it is well-protected against water immersion. Operating at a frequency of 50 Hz, it delivers a power output of 1.5 kW or 2 HP. The maximum flow rate is an impressive 39 m3/h, with a head range of 4.5 to 23.0 meters. It supports single-phase voltage of 230 V and three-phase voltages of 230, 400, 230/400, and 400/690 V, making it adaptable to different electrical systems.
| Specification | Value |
| Max temperature (°C) | 0-40 |
| Max solids size (mm) | 10 |
| Maximum immersion (m) | 20 |
| No. of Poles | 2 |
| Insulation Class | F |
| Protection degree | IP X8 |
| Frequency (Hz) | 50 |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Max. flow rate (m3/h) | 39 |
| Head (m) | 4.5-23.0 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 230, 400, 230-400, 400-690 |
Pentax 2 HP Centrifugal Drainage Pump DC(T)210High-Head Materials
- Pump body: cast iron
- Impeller: cast iron
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic-graphite
Pentax 2 HP Centrifugal Drainage Pump DC(T)210High-Head Technical Data
| m3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 39 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 650 |
| Head (m) | 23.0 | 22.2 | 20.7 | 18.6 | 15.9 | 12.5 | 7.4 | 4.5 |

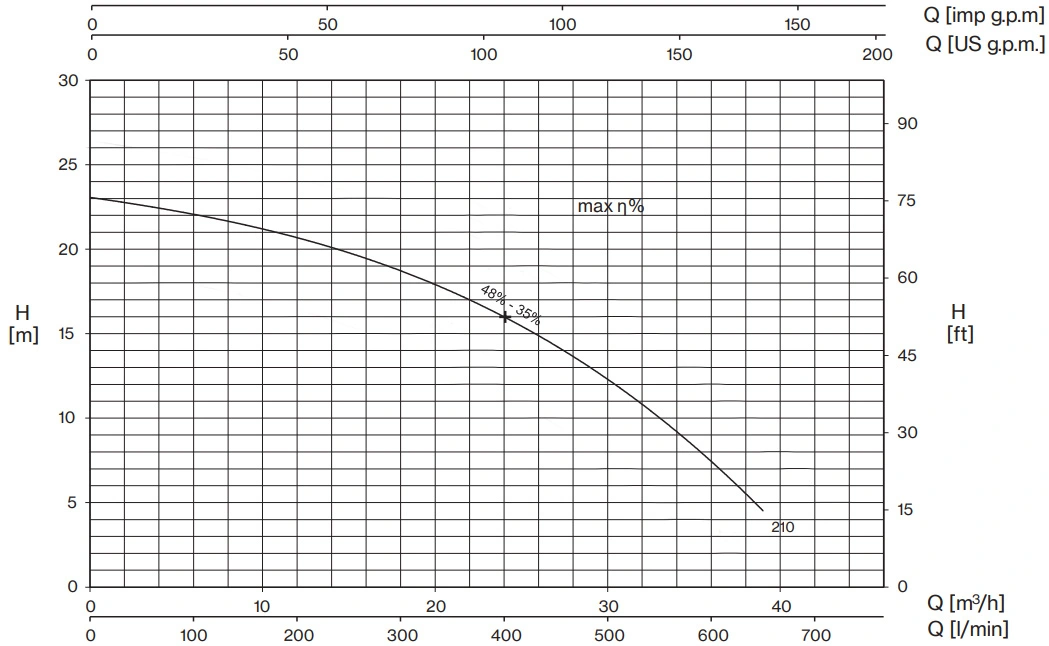

Pentax 2 HP Centrifugal Drainage Pump DC(T)210High-Head Performance Curve
Pentax 2 HP Centrifugal Drainage Pump DC(T)210High-Head Applications
- Water transfer in industrial settings
- Irrigation systems for agriculture
- Drainage in construction sites
- Cooling systems in HVAC applications
Pentax 2 HP Centrifugal Drainage Pump DC(T)210High-Head Benefits
- High flow rate for efficient operation
- Durable construction for long-lasting use
- Versatile voltage options for compatibility
- IP X8 rating ensures protection against water damage
Pentax 2 HP Centrifugal Drainage Pump DC(T)210High-Head Price List
| No. | Name | Price |
| 1 | Pentax 2 HP Centrifugal Drainage Pump DC(T)210High-Head Price | Contact us |
