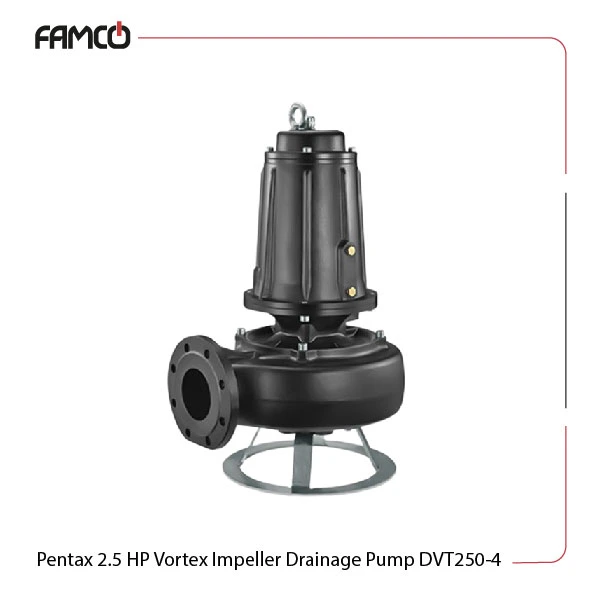

Pentax 2.5 HP Vortex Impeller Drainage Pump DVT250-4 Specifications
This powerful pump features an unmatched design with a cast iron body and impeller. This series of Pentax pumps is made to perform safely and durably with an IPX8 protection degree and F insulation degree. The mechanical seals on both the pump and motor sides are made from high-quality materials for a lasting operation. This high-performance three-phase pump works with a 230 to 690 voltage range. Using top-tier materials, like cast iron in its pump body and impeller, means this drainage pump handles tough conditions while delivering impressive flow rates of up to 96 m3/h. Its advanced sealing technology ensures minimal maintenance, making this series of submersible pumps a smart choice for professionals seeking durability and efficiency.
| Specification | Value |
| No. of poles | 4 |
| Voltage in three-phase (V) | 230, 400, 230-400, 400-690 |
| Insulation class | F |
| Protection degree | IPX8 |
| Max. immersion depth (m) | 20 |
| Liquid temperature (℃) | 0-40 |
| Frequency | 50Hz |
| Power (HP) | 2.5 |
| Power (kW) | 1.8 |
| Head (m) | 2.3-8.7 |
| Max. flow rate (m3/h) | 96 |
| Weight (kg) | 69.5 |
Pentax 2.5 HP Vortex Impeller Drainage Pump DVT250-4 Materials
- Pump body: cast iron
- Impeller: cast iron
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic/ graphite
Pentax 2.5 HP Vortex Impeller Drainage Pump DVT250-4 Technical Data
| M3/h | 0 | 12 | 24 | 36 | 48 | 60 | 72 | 84 | 96 |
| l/min | 0 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 |
| Head (m) | 8.7 | 8.3 | 7.8 | 7.1 | 6.4 | 5.5 | 4.6 | 3.5 | 2.3 |

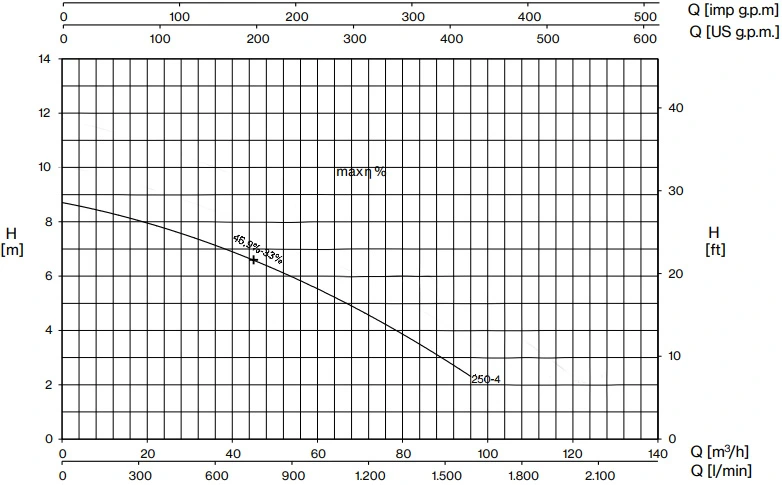

Pentax 2.5 HP Vortex Impeller Drainage Pump DVT250-4 Performance Curve
Pentax 2.5 HP Vortex Impeller Drainage Pump DVT250-4 Applications
- Water transfer in industrial settings
- Irrigation for agricultural fields
- Drainage in construction sites
- Pumping wastewater and sewage
Pentax 2.5 HP Vortex Impeller Drainage Pump DVT250-4 Benefits
- Durable cast iron construction for longevity
- High flow rate and efficiency for various tasks
- Advanced sealing technology reduces maintenance needs
- Versatile voltage options for different setups
Pentax 2.5 HP Vortex Impeller Drainage Pump DVT250-4 Price List
| No. | Name | Price |
| 1 | Pentax 2.5 HP Vortex Impeller Drainage Pump DVT250-4 Price | Contact us |
