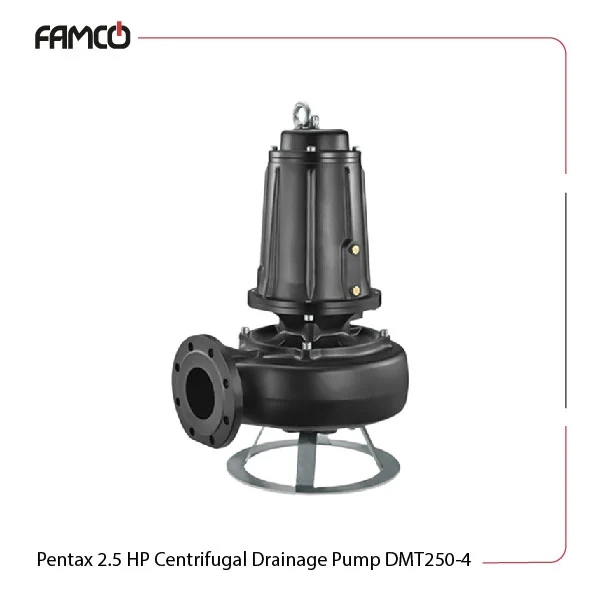

Pentax 2.5 HP Centrifugal Drainage Pump DMT250-4 Specifications
This pump operates efficiently within a liquid temperature range of 0 to 40 degrees Celsius. This Pentax submersible pump can be immersed up to 20 meters deep. Four poles, and an F insulation class guarantees forceful yet safer operations. The pump has an IPX8 protection degree, indicating it is highly resistant to water ingress. This Pentax pump has a power rating of 1.8 kW or 2.5 HP, with a head range of 2.1 to 10.8 meters. The maximum flow rate is 18 m3/h, and this drainage pump operates at a frequency of 50 Hz. Set on a three-phase voltage with the options are accessible in the table below. The mechanical seals are made of silicon carbide on the pump side and ceramic/graphite on the motor side, ensuring durability. Both the impeller and pump body are constructed from cast iron, which provides strength in the long run.
| Specification | Value |
| Max. liquid temperature (℃) | 0-40 |
| Max. immersion depth (m) | 20 |
| No. of poles | 4 |
| Insulation class | F |
| Protection degree | IPX8 |
| Power rating (kW) | 1.8 |
| Power rating (HP) | 2.5 |
| Head (m) | 2.1-10.8 |
| Max. flow rate (m3/h) | 84 |
| Frequency (Hz) | 50 |
| Three-phase voltage (V) | 230,400,230/400, 400/690 |
Pentax 2.5 HP Centrifugal Drainage Pump DMT250-4 Materials
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic/graphite
- Impeller: cast iron
- Pump body: cast iron
Pentax 2.5 HP Centrifugal Drainage Pump DMT250-4 Technical Data
| M3/h | 0 | 12 | 24 | 36 | 48 | 60 | 72 | 84 |
| l/min | 0 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 |
| Head (m) | 10.8 | 9.6 | 8.5 | 7.4 | 6.3 | 5.1 | 3.6 | 2.1 |

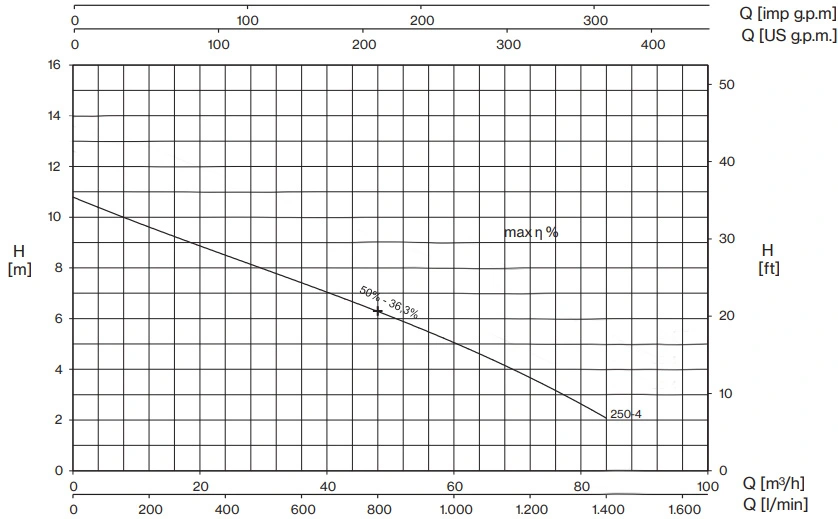

Pentax 2.5 HP Centrifugal Drainage Pump DMT250-4 Performance Curve
Pentax 2.5 HP Centrifugal Drainage Pump DMT250-4 Applications
- Water transfer for irrigation systems
- Drainage in construction and landscaping
- Industrial water circulation
- Aquaculture and fish farming
Pentax 2.5 HP Centrifugal Drainage Pump DMT250-4 Benefits
- High efficiency with a maximum flow rate of 84 m3/h
- Durable construction with cast iron materials
- Reliable performance with advanced mechanical seals
- Versatile use in various applications
Pentax 2.5 HP Centrifugal Drainage Pump DMT250-4 Price List
| No. | Name | Price |
| 1 | Pentax 2.5 HP Centrifugal Drainage Pump DMT250-4 Price | Contact us |
