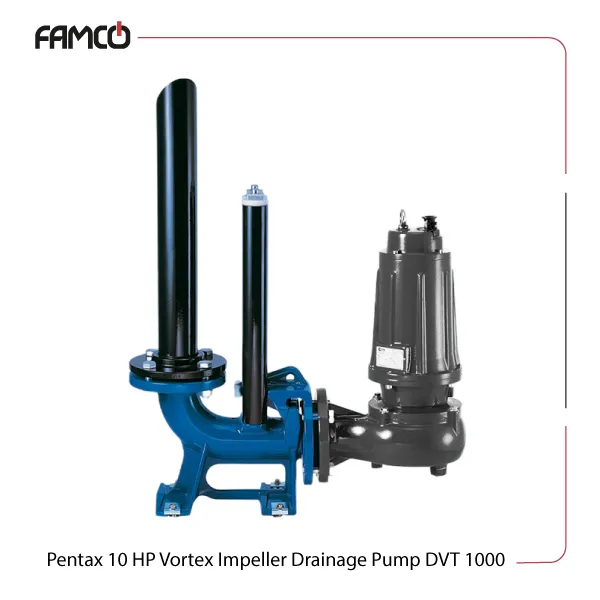

Pentax 10 HP Vortex Impeller Drainage Pump DVT 1000 Specifications
This robust pump operates with a power of 7.5 kW, equivalent to 10 HP, making it suitable for demanding applications. It supports three-phase power supplies with voltages of 230, 400, 230/400, and 400/690 volts, and runs at a frequency of 50 Hz. The pump can generate a maximum head of 26.7 meters and handle a flow rate up to 2000 liters per minute, ideal for water transfer and drainage tasks. Constructed with a cast-iron body, it offers durability and resistance to corrosion. The impeller embedded in this Pentax pump is made of cast-iron, also, to ensure efficient water movement. Mechanical seals are made of silicon carbide on the pump side and ceramic-graphite on the motor side, providing reliable sealing and long service life. It can operate at a maximum immersion depth of 20 meters and is equipped with a float switch for automatic operation. The pump can pass solids up to 45 mm in size, making this Pentax drainage pump applicable for handling debris-laden liquids. It supports liquids with temperatures ranging from 0 to 40°C. The device features a 2-pole motor, insulation class F, and an IPX8 protection degree, ensuring safety and performance in various environments.
| Specification | Value |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Three-phase voltage (V) | 230, 400, 230/400, 400/690 |
| Frequency (Hz) | 50 |
| Max. head (m) | 26.7 |
| Max. flow rate (l/min) | 2000 |
| Weight (kg) | 92.5 |
| Pump body | cast iron |
| Impeller | cast iron |
| Mechanical seal on pump side | silicon carbide |
| Mechanical seal on motor side | ceramic-graphite |
| Max. immersion depth (m) | 20 |
| Max. free solid passage (mm) | 45 |
| Max. liquid temperature (° C) | 0-40 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IPX8 |
Pentax 10 HP Vortex Impeller Drainage Pump DVT 1000 Performance Data
| m³/h | 0 | 12 | 24 | 36 | 42 | 48 | 51 | 54 | 60 | 72 | 78 | 84 | 90 | 96 | 108 | 114 | 120 |
| l/min | 0 | 200 | 400 | 600 | 700 | 800 | 850 | 900 | 1000 | 1200 | 1300 | 1400 | 1500 | 1600 | 1800 | 1900 | 2000 |
| Head (m) | 26.7 | 25.2 | 23.2 | 21.2 | 20 | 18.8 | 18.2 | 17.6 | 16.3 | 13.7 | 12.3 | 10.8 | 9.4 | 8.0 | 5.1 | 3.8 | 2.6 |
Pentax 10 HP Vortex Impeller Drainage Pump DVT 1000 Dimensions
| Dimensions (mm) | Weight (kg) | ||||||
| Ct | Ht | R | It | mt | Mt | DNM | 41.5 |
| 551 | 123 | 117 | 191 | 243 | 513 | 65 | |
Pentax 10 HP Vortex Impeller Drainage Pump DVT 1000 Applications
- Industrial water transfer
- Drainage in construction sites
- Agricultural irrigation
- Wastewater management
Pentax 10 HP Vortex Impeller Drainage Pump DVT 1000 Benefits
- High flow rate for quick water movement
- Durable cast iron and cast iron construction
- Automatic operation with float switch
- Supports solids up to 45 mm for versatile use
Pentax 10 HP Vortex Impeller Drainage Pump DVT 1000 Price List
| No. | Name | Price |
| 1 | Pentax 10 HP Vortex Impeller Drainage Pump DVT 1000 Price | Contact us |
