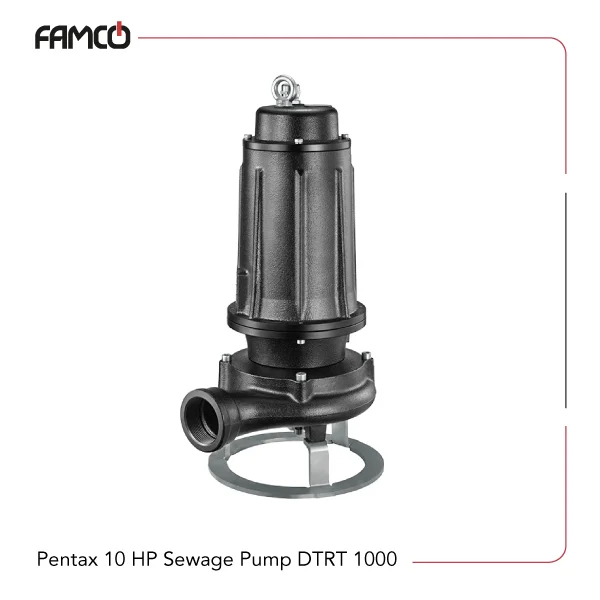

Pentax 10 HP Sewage Drainage Pump DTRT 1000 Specifications
Pentax 10 HP sewage drainage pump DTRT 1000 features a cast iron body and impeller, ensuring durability and reliable performance in demanding environments. It is equipped with a double seal with an oil barrier, utilizing silicon carbide on the pump side and a sealing ring on the engine side, which provides excellent sealing and reduces leakage. The pump shaft end is made of high-quality steel AISI 304, offering corrosion resistance and strength. Suitable for ambient temperatures between 0 and 40 degrees Celsius, it can handle a maximum head of 52.7 meters and flow rates from 50 to 360 liters per minute. This Pentax sewage pump includes a 20-meter stainer for effective debris management, and its insulation class is F, indicating good thermal resistance. With an IPX8 protection degree, it is highly resistant to water ingress, making it suitable for various outdoor and submerged applications. The pump operates on a 10 HP (7.5 kW) motor, providing powerful performance in water transfer tasks. Its pipe diameter is 60 mm, and it weighs approximately 94.5 kilograms, ensuring stability during operation and ease of installation.
| Specification | Value |
| Pump body | cast iron |
| Impeller | cast iron |
| Seal | double seal with oil barrier: pump side silicon carbide, engine side sealing ring |
| Pump shaft end | steel AISI 304 |
| Ambient temperature | 0 – 40 °C |
| STAINER | 20 m |
| insulation class | F |
| Protection degree | IPX8 |
| Power | 7.5 kW |
| Flow rate range (l/min) | 50 – 360 |
| Head (m) | 15-52.7 |
| Pipe-DNM | 60 |
| Weight (kg) | 94.5 |
Pentax 10 HP Sewage Drainage Pump DTRT 1000 Applications
- Irrigation systems in agriculture
- Water transfer in industrial facilities
- Flood control and drainage
- Water supply for large-scale projects
Pentax 10 HP Sewage Drainage Pump DTRT 1000 Benefits
- Durable cast iron construction for long-term use
- Effective double seal with oil barrier for leak prevention
- High power output for demanding tasks
- Waterproof and resistant to harsh environments
Pentax 10 HP Sewage Drainage Pump DTRT 1000 Price List
| No. | Name | Price |
| 1 | Pentax 10 HP Sewage Drainage Pump DTRT 1000 Price | Contact us |
