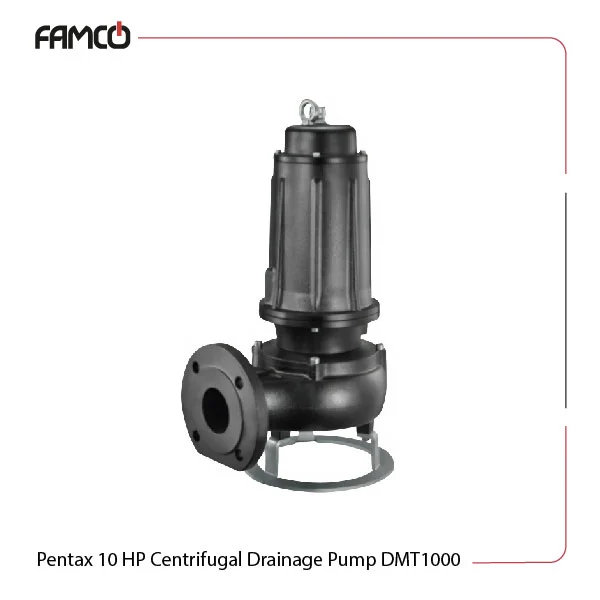

Pentax 10 HP Centrifugal Drainage Pump DMT1000 Specifications
This powerful 10 HP pump operates at a maximum immersion depth of 20 meters and can handle liquid temperatures ranging from 0 to 40 degrees Celsius. This Pentax drainage pump runs on a frequency of 50Hz and is designed with an insulation class of F, without compromising durability and safety. The pump offers users a high protection degree of IPX8, which comes in handy in wet environments. This series of submersible pumps supports both three-phase and single-phase voltages, with options of 380, 400, 230/400, 400/690 volts for three-phase and 230 volts for single-phase. The premium-quality construction includes a cast iron impeller and pump body, while the mechanical seals are made of silicon carbide on the pump side and ceramic-graphite on the motor side.
| Specification | Value |
| Immersion depth (m) | 20 |
| Liquid temperature (℃) | 0-40 |
| Frequency | 50Hz |
| Insulation class | F |
| Protection degree | IPX8 |
| Three-phase voltage (V) | 380, 400, 230/400, 400/690 |
| Single-phase voltage (V) | 230 |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Max. head (m) | 2.1-34.9 |
| Max. flow rate (m3/h) | 144 |
Pentax 10 HP Centrifugal Drainage Pump DMT1000 Materials
- Impeller: cast iron
- Pump body: cast iron
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic-graphite
Pentax 10 HP Centrifugal Drainage Pump DMT1000 Technical Data
| M3/h | 0 | 12 | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 108 | 120 | 132 | 144 |
| l/min | 0 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
| Head (m) | 34.9 | 30.9 | 28.3 | 26.1 | 23.7 | 21.3 | 18.7 | 16.1 | 13.2 | 10.2 | 7.4 | 4.6 | 2.1 |
Pentax 10 HP Centrifugal Drainage Pump DMT1000 Performance Curve
Pentax 10 HP Centrifugal Drainage Pump DMT1000 Applications
- Industrial water supply systems
- Agricultural irrigation
- Construction site dewatering
- Wastewater management
Pentax 10 HP Centrifugal Drainage Pump DMT1000 Benefits
- High efficiency with a maximum flow rate of 144 m3/h
- Durable construction with cast iron components
- Versatile voltage options for different setups
- Reliable operation in wet environments with IPX8 protection
Pentax 10 HP Centrifugal Drainage Pump DMT1000 Price List
| No. | Name | Price |
| 1 | Pentax 10 HP Centrifugal Drainage Pump DMT1000 Price | Contact us |
There are no reviews yet.
