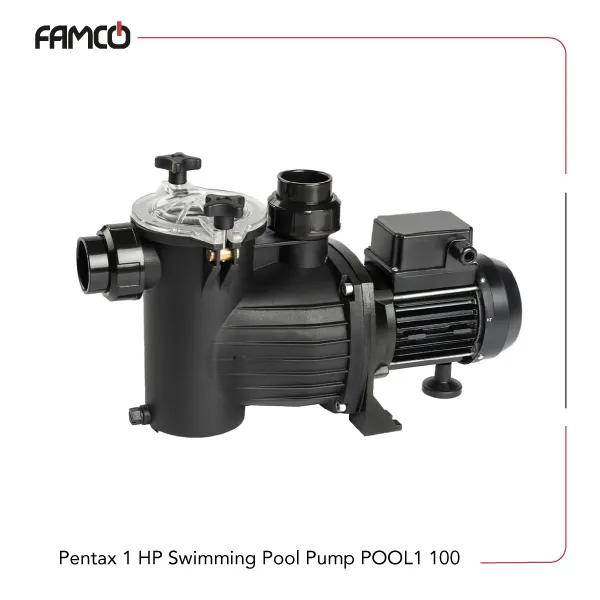

Pentax 1 HP Swimming Pool Pump POOL1 100

0.75 kW (1 HP)

Single- or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Pentax 1 HP Swimming Pool Pump POOL1 100

With flow rates going above 280 l/min, the POOL1 100 Pentax swimming pool pump is the perfect addition to residential or domestic pools. Made to cater to maintaining water health, this swimming pool pump is a 1 HP solution with the ability to handle 16-meter head deliveries. As an Italian brand, Pentax has implemented sturdy materials in the POOL1 100, such as polypropylene and fiberglass in the Pump body, seal housing, and diffuser. This Pentax pump is offered operating on two modes:

Pentax 1 HP Swimming Pool Pump POOL1 100M (Single-phase)

Pentax 1 HP Swimming Pool Pump POOL1 100T (Three-phase)

Related Products

Pentax 1 HP Swimming Pool Pump POOL1 100 Specifications

The 1 HP Pentax swimming pool pump POOL 1 100 is a strong solution even in its class. The single-phase version operates on a 230 V, while the three-phase version operates on both 230 and 400 voltages. With flow rates going above 283 l/min, this Pentax swimming pool pump is equipped with a 2 pole induction motor. The motor shaft is made of stainless steel AISI 316, and the impeller of Noryl. You can easily peak into the pre-filter sieve with this model to identify any clogs and solid accumulations. Easy monitoring is made possible due to the polycarbonate pre-filter cover that appears as transparent. This way, you can detect any caused of blockage in the pump’s sieve and clean it before it causes performance issues. The Pentax pumps are top-tier solutions, now offering swimming pool products. You can select the most suitable POOL1 Pentax pump based on the area of the swimming pool and other factors.

Pentax 1 HP Swimming Pool Pump POOL1 100



Specification Value
Number of poles 2
Single-phase voltage (V) 230/400
Three-phase voltage (V) 400
Insulation class F
Protection IP55
Pump body, seal housing, diffuser polypropylene + fiberglass
Impeller Noryl
mechanical seal ceramic-graphite-AISI 316
Liquid temperature max 40 °C max 40 °C
Power (kW) 0.75
Power (HP) 1
Head (m) 16
Flow rate (m3/h) 17
Flow rate (l/min) 283
Single-phase weight (kg) 10.9
Three-phase weight (kg) 10.8

Pentax 1 HP Swimming Pool Pump POOL1 100 Performance Data

H (m) 4 6 8 10 12 14 16
m³/h 17 16 15.3 13 10.5 7.6 5.5

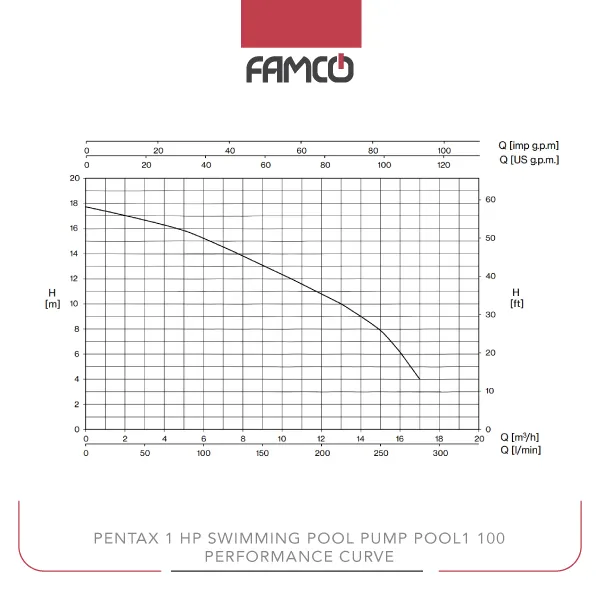

Pentax 1 HP Swimming Pool Pump POOL1 100 Performance Curve



Pentax 1 HP Swimming Pool Pump POOL1 100 Applications

  • Domestic or residential scale swimming pools
  • Increased water circulation in swimming pools
  • Maintaining swimming pools’ water quality



Pentax 1 HP Swimming Pool Pump POOL1 100 Benefits

  • Enhanced water circulation
  • Visible pre-filter sieve
  • Resistant to pool chemicals



Pentax 1 HP Swimming Pool Pump POOL1 100 Price List

No. Name Price
1 Pentax 1 HP Swimming Pool Pump POOL1 100 Price Contact us
Brand

Applications

, ,

Power (kW)

Power (HP)

Maximum Flow Rate (m3/h)

Maximum Delivery Head (m)
