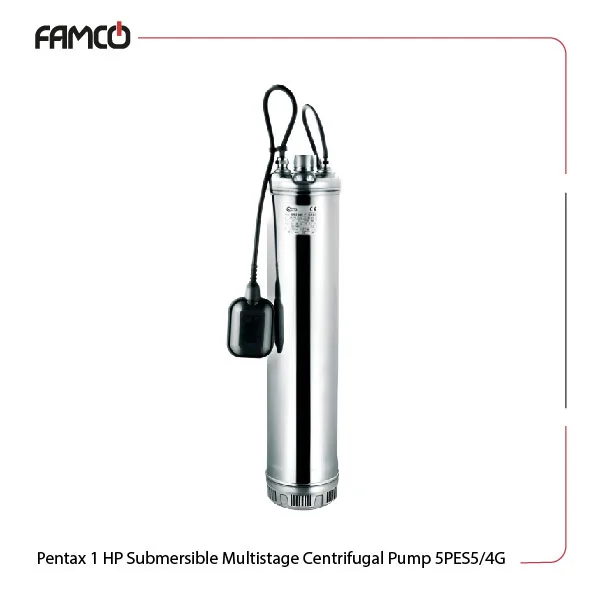

Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES5/4G Specifications
This 1 HP product features a powerful construction with an external jacket, impellers, and diffusers made from steel AISI 304 to enhance durability and resistance to corrosion. The product’s impressive immersion depth reaching 20 meters deep and temperature range (5-40°C) help it adapt to different operational conditions by providing versatility and efficiency. The pre-filter sieve implemented inside this submersible pump has a size of 2 mm for efficient filtration. This Pentax submersible pump can handle a maximum solids passage of 2 mm and can be immersed up to a depth of 20 meters.
The unit operates effectively within a liquid temperature range of 5 to 40 degrees Celsius. It is available in both three-phase (380/415V) and single-phase (220/240V) versions, with a frequency of 50 Hz. The insulation class is rated at F, and it has a protection degree of IP68 to make it suitable for harsh environments.
| Specification | Value | |
| Pre-filter sieve | 2 mm | |
| Max. Solids passage (mm) | 2 | |
| Max. Immersions depth (m) | 20 | |
| Max. Liquids temperature (°C) | 5-40 | |
| Voltage (V) | three-phase version | 380/415V |
| single-phase versions | 220/240V | |
| Frequency (Hz) | 50 | |
| Insulation class | F | |
| Protection degree | IP68 | |
| Power (HP) | 1 | |
| Power (kW) | 0.75 | |
| Flow rate (l/min) | 23-57.1 | |
| H (m) | 15.9-44.7 | |
Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES5/4G Materials
- External jacket and diffusers: steel AISI 304
- Mechanical Seal: Ceramic alumina, Carbon Graphite, NBR
- Impeller: steel AISI 304

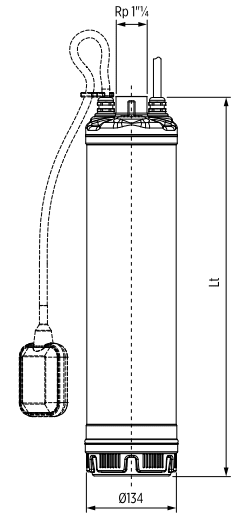

Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES5/4G Dimensions and Weight
| Type | Dimensions (mm) | Weight (kg) | |||
| 1~ | 3~ | Lt | DNM | 1~ | 3~ |
| 5PES 5/4 | 5PEST 5/4 | 470 | 1” ¼ G | 13.5 | 14 |
Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES5/4G Technical Data
| M3/h | 0 | 1.5 | 2 | 2.5 | 3 | 4.5 | 7.5 |
| l/min | 0 | 25 | 33.3 | 41.7 | 50 | 75 | 125 |
| H (m) | 44.7 | 38.9 | 37.5 | 32.4 | 30.5 | 25.8 | 15.9 |

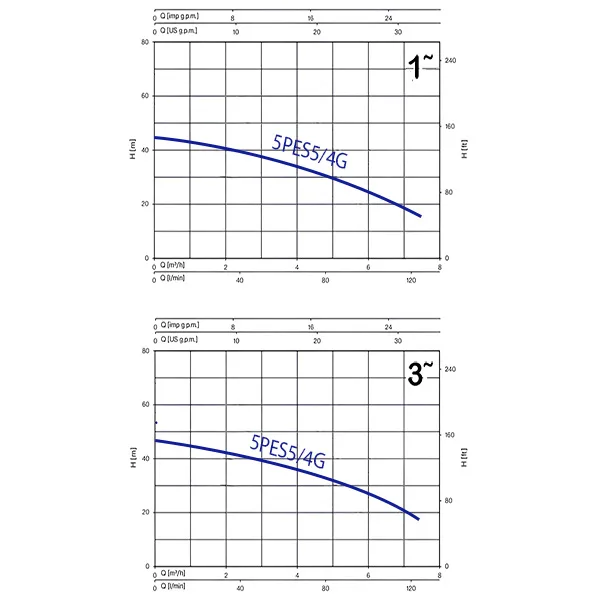

Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES5/4G Performance Curve
Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES5/4G Applications
- Wastewater management
- Industrial fluid transfer
- Agricultural irrigation systems
- Construction site dewatering
Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES5/4G Benefits
- Durable stainless steel construction
- High efficiency in solid handling
- Versatile temperature and depth capabilities
- Reliable performance in harsh conditions
Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES5/4G Price List
| No. | Name | Price |
| 1 | Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES5/4G Price | Contact us |
