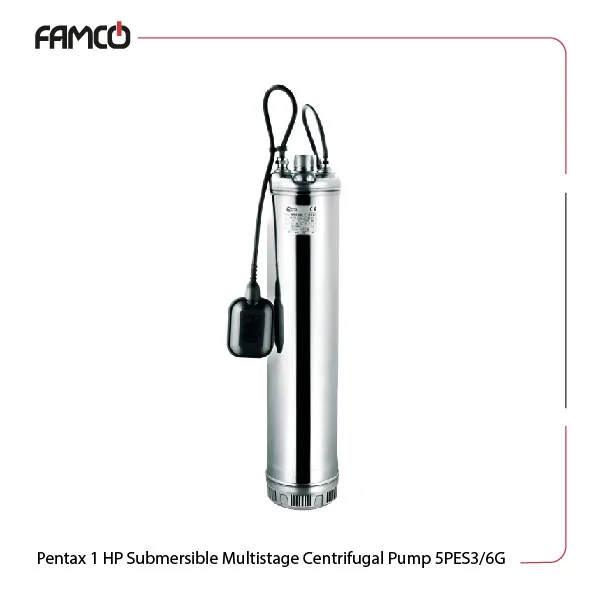

Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/6G Specifications
This product features a solid construction with an external jacket, impellers, and diffusers made from AISI 304 steel for enhanced durability and resistance to corrosion. This Pentax submersible pump has a pre-filter sieve with a size of 2 mm to handle solids up to 2 mm in diameter. The maximum immersion depth is 20 meters to take care of different pumping needs with ease. It operates efficiently within a liquid temperature range of 5 to 40 degrees Celsius.
This product is available in both three-phase (380/415V) and single-phase (220/240V) versions, with a frequency of 50 Hz. It has an insulation class of F and a protection degree of IP68 to make sure of its effectiveness in environments with wet conditions. The power output is 1 HP (0.75 kW), with a flow rate ranging from 23 to 57.1 liters per minute, and a head range of 21.8 to 64.4 meters.
| Specification | Value | |
| Pre-filter sieve | 2 mm | |
| Max. Solids passage (mm) | 2 | |
| Max. Immersions depth (m) | 20 | |
| Max. Liquids temperature (°C) | 5-40 | |
| Voltage (V) | three-phase version | 380/415V |
| single-phase versions | 220/240V | |
| Frequency (Hz) | 50 | |
| Insulation class | F | |
| Protection degree | IP68 | |
| Power (HP) | 1 | |
| Power (kW) | 0.75 | |
| Flow rate (l/min) | 23-57.1 | |
| H (m) | 21.8-64.4 | |
Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/6G Materials
- External jacket, impellers and diffusers: steel AISI 304
- Mechanical Seal: Ceramic alumina, Carbon Graphite, NBR
- Impeller: AISI 304

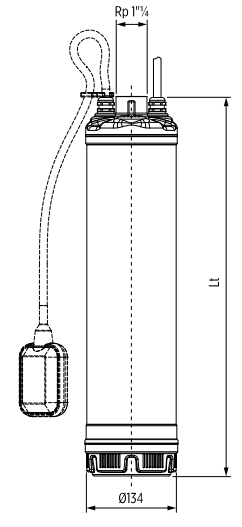

Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/6G Dimensions and Weight
| Type | Dimensions (mm) | Weight (kg) | |||
| 1~ | 3~ | Lt | DNM | 1~ | 3~ |
| 5PES 3/6 | 5PEST 3/6 | 568 | 1” ¼ G | 14.8 | 15 |
Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/6G Technical Data
| M3/h | 0 | 1.5 | 2 | 2.5 | 3 | 4.5 |
| l/min | 0 | 25 | 33.3 | 41.7 | 50 | 75 |
| H (m) | 64.4 | 55.5 | 51.2 | 45.9 | 40.7 | 21.8 |

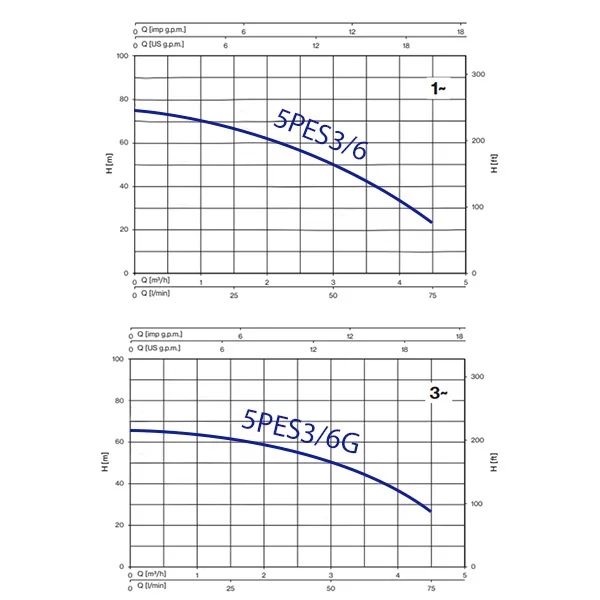

Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/6G Performance Curve
Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/6G Applications
- Wastewater management
- Irrigation systems
- Fluid transfer in industrial processes
- Aquaculture and fish farming
Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/6G Benefits
- Durable AISI 304 steel construction
- Handles solids up to 2 mm efficiently
- Operates at significant depths and temperatures
- Versatile for various industrial applications
Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/6G Price List
| No. | Name | Price |
| 1 | Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/6G Price | Contact us |
