Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/5G Specifications
This product features a solid construction with an external jacket, impellers, and diffusers made from AISI 304 steel to enhance durability and resistance to corrosion. This Pentax multistage centrifugal submersible pump has a pre-filter sieve with a size of 2 mm for efficient filtration of solids. The maximum solids passage is 2 mm which is suitable for various applications. This pump is submersible up to a depth of 20 meters, withstanding liquid temperatures ranging from 5 to 40 degrees Celsius.
The product operates on both three-phase (380/415V) and single-phase (220/240V) power sources, with a frequency of 50 Hz. It also has an insulation class of F and a protection degree of IP68 to reach maximum safety and reliability. The product’s power output of 1 HP (0.75 kW) and a flow rate between 23 to 57.1 liters per minute achieve a head of 19.6 to 54.3 meters, which is more than versatile for various pumping needs.
| Specification | Value | |
| Pre-filter sieve | 2 mm | |
| Max. Solids passage (mm) | 2 | |
| Max. Immersions depth (m) | 20 | |
| Max. Liquids temperature (°C) | 5-40 | |
| Voltage (V) | three-phase version | 380/415V |
| single-phase versions | 220/240V | |
| Frequency (Hz) | 50 | |
| Insulation class | F | |
| Protection degree | IP68 | |
| Power (HP) | 1 | |
| Power (kW) | 0.75 | |
| Flow rate (l/min) | 23-57.1 | |
| Head (m) | 19.6-54.3 | |
Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/5G Materials
- External jacket, impellers and diffusers: steel AISI 304
- Mechanical Seal: Ceramic alumina, Carbon Graphite, NBR
- Impeller: AISI 304
Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/5G Dimensions and Weight
| Type | Dimensions (mm) | Weight (kg) | |||
| 1~ | 3~ | Lt | DNM | 1~ | 3~ |
| 5PES 3/5 G | 5PEST 3/5 G | 544 | 1” ¼ G | 14.3 | 14.5 |

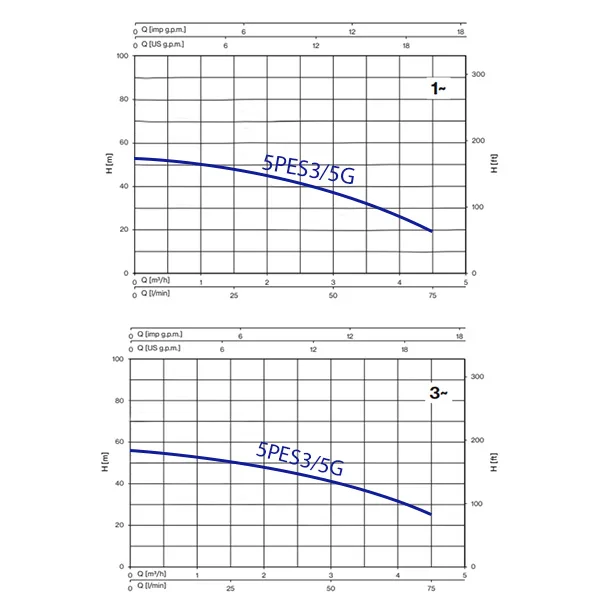

Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/5G Performance Curve
| M3/h | 0 | 1.5 | 2 | 2.5 | 3 | 4.5 |
| l/min | 0 | 25 | 33.3 | 41.7 | 50 | 75 |
| H (m) | 54.3 | 47.4 | 43.9 | 39.6 | 35.4 | 19.6 |
Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/5G Applications
- Wastewater management
- Irrigation systems
- Fluid transfer in industrial settings
- Cooling systems
Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/5G Benefits
- Durable AISI 304 steel construction
- High efficiency with adjustable flow rates
- Versatile for various applications
- Reliable performance with IP68 protection
Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/5G Price List
| No. | Name | Price |
| 1 | Pentax 1 HP Submersible Multistage Centrifugal Pump 5PES3/5G Price | Contact us |
There are no reviews yet.
