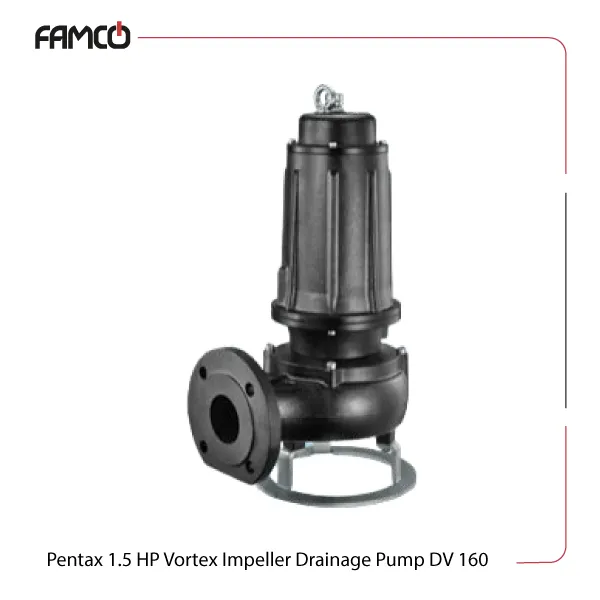

Pentax 1.5 HP Vortex Impeller Drainage Pump DV 160 Specifications
This robust pump operates with a power of 1.1 kW, equivalent to 1.5 HP, suitable for various industrial and water management tasks. It supports multiple voltage options, including three-phase configurations at 230V, 400V, 230/400V, and 400/690V, as well as a single-phase supply at 230V. The device runs at a frequency of 50 Hz, ensuring reliable performance across different power systems. The maximum head this Pentax pump generates reaches 12.2 meters and handles a flow rate of up to 900 liters per minute, making it ideal for applications requiring significant water movement. The pump’s body and impeller are made from durable cast iron, providing strength and resistance to corrosion. Its mechanical seals are composed of silicon carbide on the pump side and ceramic-graphite on the motor side, ensuring longevity and effective sealing under demanding conditions. The pump can operate at a maximum immersion depth of 20 meters and can pass solids up to 50 mm in size, which is useful for handling debris or solids in liquids. This Pentax drainage pump has it all to work with liquids at temperatures between 0 and 40 degrees Celsius. The device features a two-pole motor, with insulation rated class F for safety and efficiency, and a protection degree of IPX8, indicating it is fully waterproof and suitable for submersion. Overall, this pump combines power, durability, and versatility, making it suitable for various water transfer, drainage, and industrial applications requiring reliable and efficient operation.
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Three-phase voltage (V) | 230, 400, 230/400, 400/690 |
| Single-phase voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Max. head (m) | 12.2 |
| Max. flow rate (l/min) | 900 |
| Pump body | cast iron |
| Impeller | cast iron |
| Mechanical seal on pump side | silicon carbide |
| Mechanical seal on motor side | ceramic-graphite |
| Max. immersion depth (m) | 20 |
| Max. free solid passage (mm) | 50 |
| Max. liquid temperature (° C) | 0-40 |
| Number of poles | 2 |
| Insulation class | F |
| Protection degree | IPX8 |

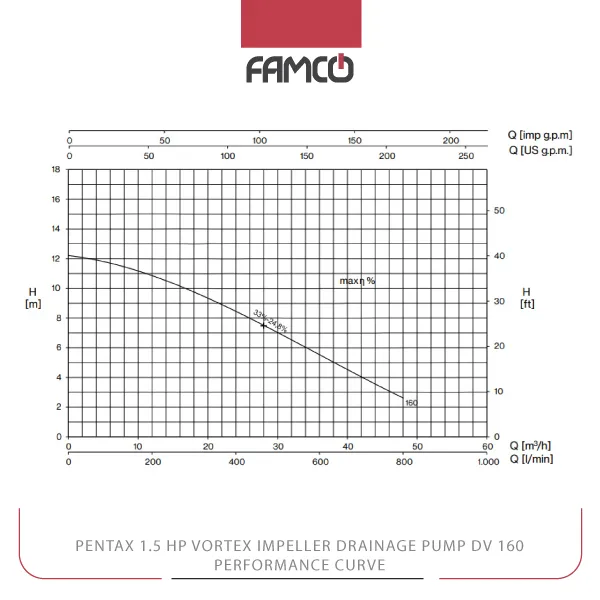

Pentax 1.5 HP Vortex Impeller Drainage Pump DV 160 Performance Data
| m³/h | 0 | 12 | 24 | 36 | 42 | 48 |
| l/min | 0 | 200 | 400 | 600 | 700 | 800 |
| Head (m) | 12.2 | 10.9 | 8.4 | 5.6 | 4.1 | 2.6 |

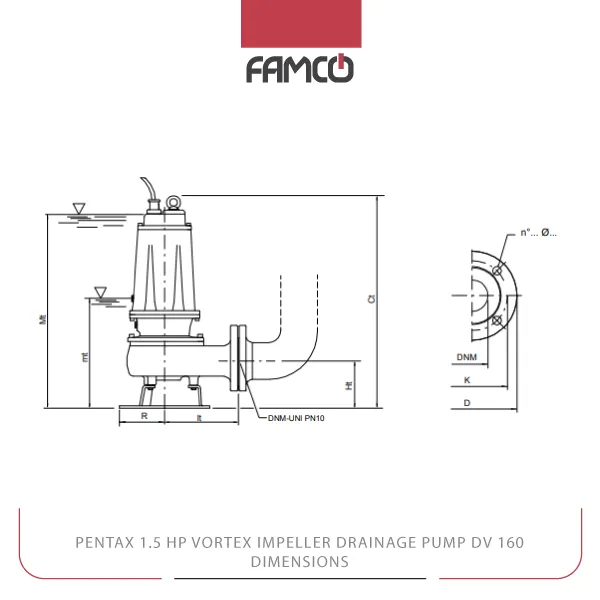

Pentax 1.5 HP Vortex Impeller Drainage Pump DV 160 Dimensions
| Dimensions (mm) | Weight (kg) | |||||||
| Ct | Ht | R | It | mt | Mt | DNM | Single-phase | 40.5 |
| 551 | 123 | 117 | 191 | 243 | 513 | 65 | Three-phase | 39.5 |
Pentax 1.5 HP Vortex Impeller Drainage Pump DV 160 Applications
- Water supply systems
- Drainage and sewage management
- Irrigation systems
- Industrial fluid transfer
Pentax 1.5 HP Vortex Impeller Drainage Pump DV 160 Benefits
- High durability with cast iron construction
- Versatile voltage options for different power supplies
- Efficient performance with high flow rate and head
- Waterproof design suitable for submersion
Pentax 1.5 HP Vortex Impeller Drainage Pump DV 160 Price List
| No. | Name | Price |
| 1 | Pentax 1.5 HP Vortex Impeller Drainage Pump DV 160 Price | Contact us |
