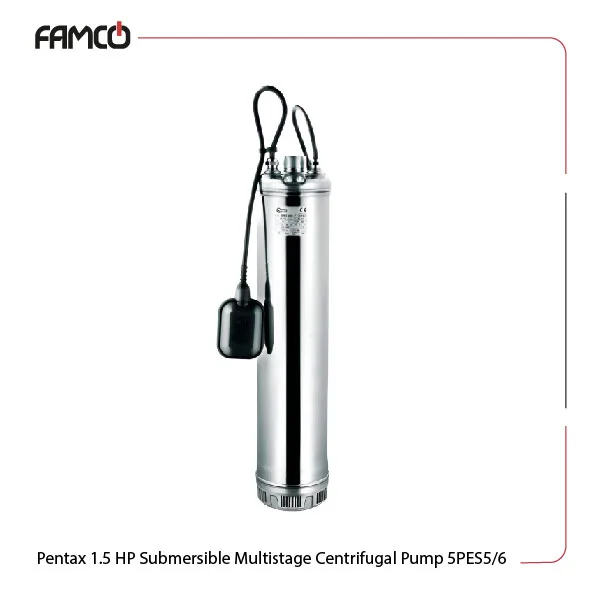

Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES5/6 Specifications
This product features a powerful construction with an external jacket, impellers, and diffusers made from AISI 304 steel, ensuring durability and resistance to corrosion. This pump can operate at a maximum immersion depth of 20 meters and work with liquid temperatures ranging from 5 to 40 degrees Celsius. This product is available in both three-phase (380/415V) and single-phase (220/240V) versions for various applications. This Pentax submersible pump has a pre-filter sieve with a size of 2 mm to handle solids up to 2 mm in diameter.The product’s frequency of 50 Hz has an insulation class of F and a protection degree of IP68 for safety reasons and reliability in wet environments. The power output is 1.5 HP (1.1 kW), and it offers a flow rate between 23 to 57.1 liters per minute, with a head range of 25.9 to 68 meters.
| Specification | Value | |
| Pre-filter sieve | 2 mm | |
| Max. Solids passage (mm) | 2 | |
| Max. Immersions depth (m) | 20 | |
| Max. Liquids temperature (°C) | 5-40 | |
| Voltage (V) | three-phase version | 380/415V |
| single-phase versions | 220/240V | |
| Frequency (Hz) | 50 | |
| Insulation class | F | |
| Protection degree | IP68 | |
| Power (HP) | 1.5 | |
| Power (kW) | 1.1 | |
| Flow rate (l/min) | 23-57.1 | |
| H (m) | 25.9-68 | |
Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES5/6 Materials
- External jacket, impellers and diffusers: steel AISI 304
- Mechanical Seal: Ceramic alumina, Carbon Graphite, NBR
- Impeller: AISI 304

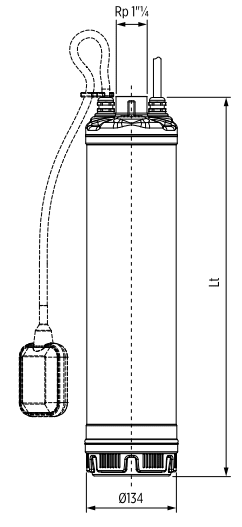

Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES5/6 Dimensions and Weight
| Type | Dimensions (mm) | Weight (kg) | |||
| 1~ | 3~ | Lt | DNM | 1~ | 3~ |
| 5PES 5/6 | 5PEST 5/6 | 568 | 1” ¼ G | 16.2 | 15 |
Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES5/6 Technical Data
| Single-phase | M3/h | 0 | 2.5 | 3.0 | 4.5 | 5.0 | 6.0 | 7.5 |
| l/min | 0 | 42 | 50.0 | 75.0 | 83 | 100 | 125 | |
| H (m) | 68 | 59.7 | 57.7 | 50.2 | 47.5 | 40.6 | 25.9 | |
| Three-phase | M3/h | 0 | 2.5 | 3.0 | 4.5 | 5.0 | 6.0 | 7.5 |
| l/min | 0 | 42 | 50.0 | 75.0 | 83 | 100 | 125 | |
| H (m) | 67.4 | 58.5 | 56.4 | 48.6 | 45.9 | 38.8 | 24 |

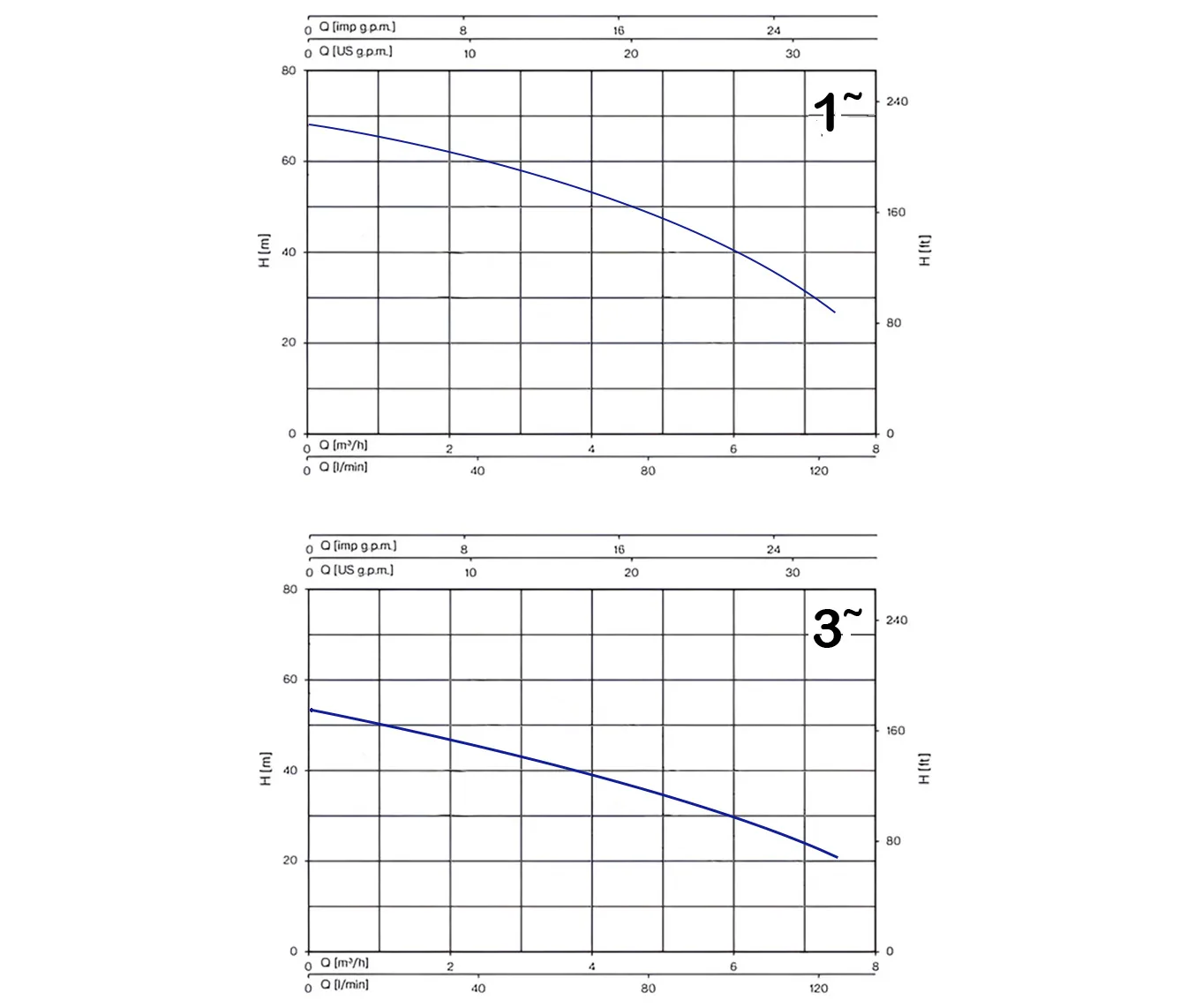

Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES5/6 Performance Curve
Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES5/6 Applications
- Industrial water transfer
- Wastewater management
- Irrigation systems
- Cooling systems
Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES5/6 Benefits
- Durable stainless steel construction
- High efficiency with adjustable flow rates
- Suitable for deep immersion applications
- Reliable operation in various temperature ranges
Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES5/6 Price List
| No. | Name | Price |
| 1 | Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES5/6 Price | Contact us |
