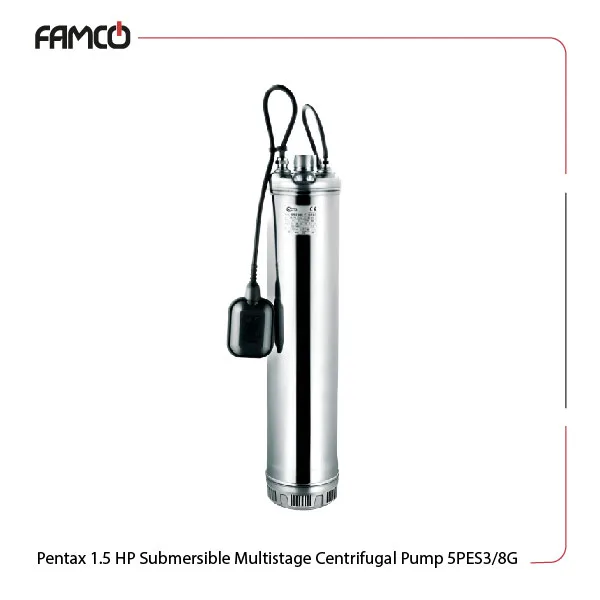

Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES3/8G Specifications
This product features a steady construction with an external jacket, impellers, and diffusers made from AISI 304 steel, to enhance durability and resistance to corrosion. This Pentax submersible multistage centrifugal pump has a pre-filter sieve with a size of 2 mm for handling solids up to 2 mm in diameter. The maximum immersion depth in this pump is set at 20 mm, considering it is a suitable choice for various applications. It operates efficiently within a liquid temperature range of 5 to 40 °C. The product is available in both three-phase (380/415V) and single-phase (220/240V) versions, with a frequency of 50 Hz. It boasts an insulation class of F and a protection degree of IP68, making it ideal for wet environments. With a power output of 1.5 HP (1.1 kW) and a flow rate ranging from 23 to 57.1 liters per minute, these submersible pumps can achieve a height of 32.8 to 87.8 meters, ensuring effective performance in various settings.
| Specification | Value | |
| Pre-filter sieve | 2 mm | |
| Max. Solids passage (mm) | 2 | |
| Max. Immersions depth (mm) | 20 | |
| Max. Liquids temperature (°C) | 5-40 | |
| Voltage (V) | three-phase version | 380/415V |
| single-phase versions | 220/240V | |
| Frequency (Hz) | 50 | |
| Insulation class | F | |
| Protection degree | IP68 | |
| Power (HP) | 1.5 | |
| Power (kW) | 1.1 | |
| Flow rate (l/min) | 23-57.1 | |
| Head (m) | 32.8-87.8 | |
Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES3/8G Materials
- External jacket and diffusers: steel AISI 304
- Mechanical Seal: Ceramic alumina, Carbon Graphite, NBR
- Impeller: AISI 304

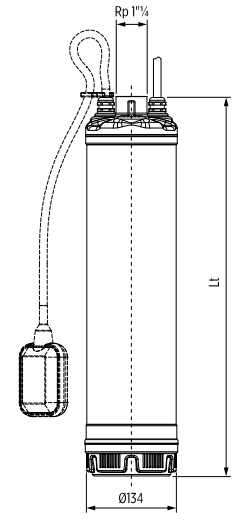

Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES3/8G Dimensions and Weight
| Type | Dimensions (mm) | Weight (kg) | |||
| 1~ | 3~ | Lt | DNM | 1~ | 3~ |
| 5PES 3/8 | 5PEST 3/8 | 616 | 1” ¼ G | 17.1 | 16 |
Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES3/8G Technical Data
| M3/h | 0 | 1.5 | 2 | 2.5 | 3 | 4.5 |
| l/min | 0 | 25 | 33.3 | 41.7 | 50 | 75 |
| H (m) | 87.8 | 77.1 | 71.6 | 64.8 | 58 | 32.8 |

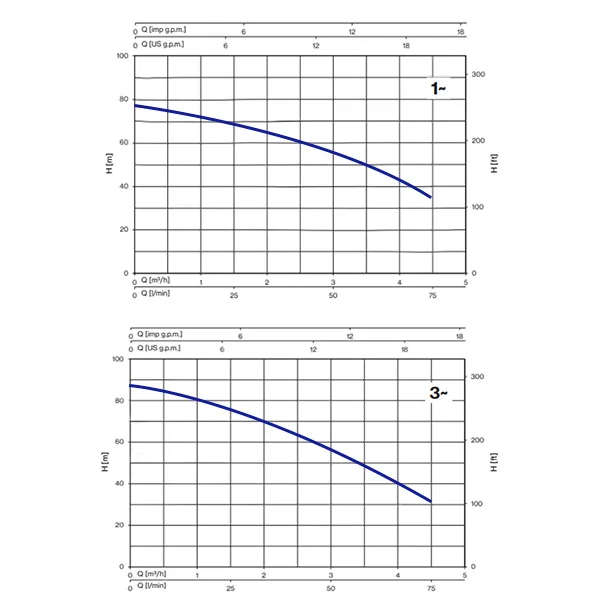

Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES3/8G Performance Curve
Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES3/8G Applications
- Water drainage in construction sites
- Irrigation systems for agriculture
- Wastewater management in residential areas
- Industrial liquid transfer processes
Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES3/8G Benefits
- Durable AISI 304 steel construction
- Handles solids up to 2 mm efficiently
- Wide temperature range for liquids
- High flow rate and lifting capacity
Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES3/8G Price List
| No. | Name | Price |
| 1 | Pentax 1.5 HP Submersible Multistage Centrifugal Pump 5PES3/8G Price | Contact us |
