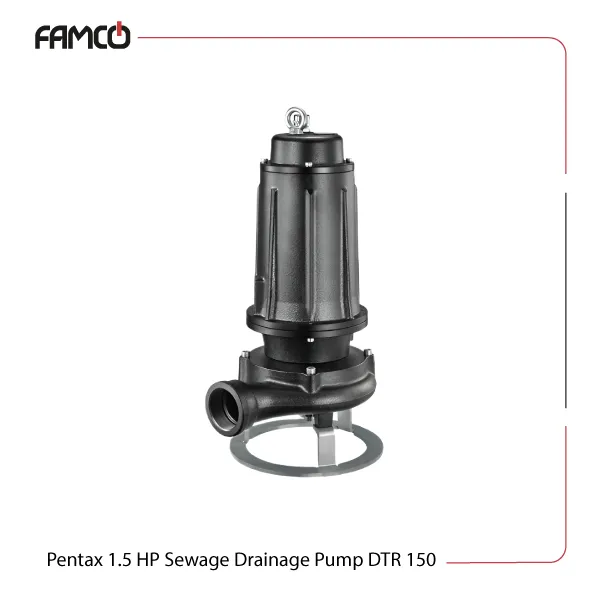

Pentax 1.5 HP Sewage Drainage Pump DTR 150 Specifications
This pump features a robust cast iron body and impeller, ensuring durability and reliable performance in demanding environments. It operates with a power of 1.5 HP (1.1 kW) and is equipped with a silicon carbide mechanical seal on the pump side and a ceramic-graphite seal on the motor side, providing excellent sealing and longevity. The device can be submerged up to 20 meters deep and handles liquids with temperatures ranging from 0 to 40 degrees Celsius. This Pentax pump unit includes a stainless steel grinder, which is treated for enhanced corrosion resistance. The pump has a two-pole motor, suitable for both single-phase (230V) and three-phase power supplies (230V, 230-400V, 400-690V, 400V). It operates at a frequency of 50 Hz and has an insulation class F. Tailored to continuous submersion, this Pentax drainage pump’s protection degree is IPX8. It can deliver a maximum flow rate of 300 liters per minute and achieve a maximum head of 19.4 meters. The overall weight of the pump is 38 kilograms, making it sturdy yet manageable for installation and maintenance.
| Specification | Value |
| Power (HP) | 1.5 |
| Power (kW) | 1.1 |
| Pump body | cast iron |
| Impeller | cast iron |
| Mechanical seal on pump side | silicon carbide |
| Mechanical seal on motor side | ceramic-graphite |
| Max. immersion depth (m) | 20 |
| Max. liquid temperature (° C) | 0-40 |
| Grinder | treated stainless steel |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 230, 230-400, 400-690, 400 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection degree | IPX8 |
| Max. flow rate (l/min) | 300 |
| Max. delivery head (m) | 19.4 |
| Weight (kg) | 38 |

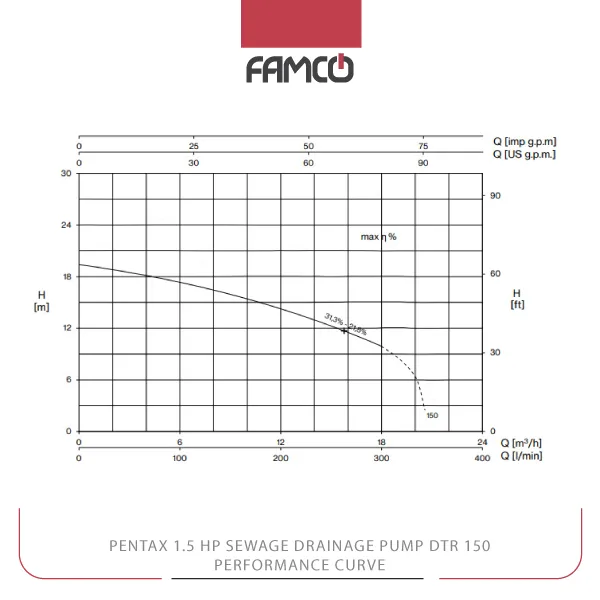

Pentax 1.5 HP Sewage Drainage Pump DTR 150 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 13.2 | 15 | 18 |
| l/min | 0 | 50 | 100 | 150 | 200 | 220 | 250 | 300 |
| Head (m) | 19.4 | 18.5 | 17.3 | 16 | 14.2 | 13.5 | 12.3 | 9.9 |

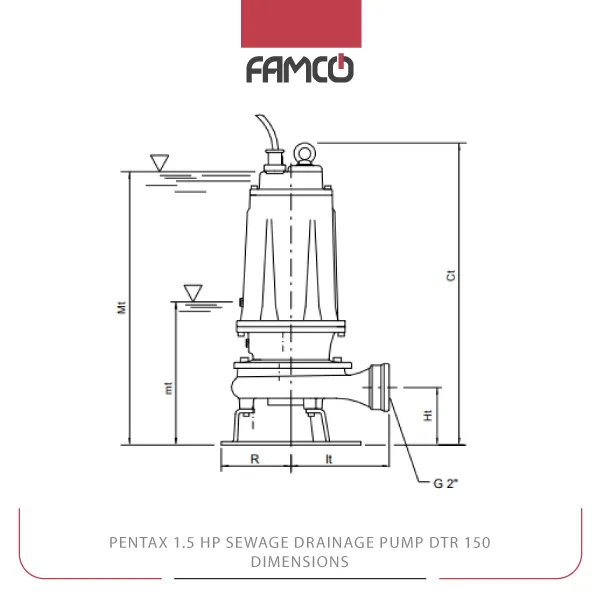

Pentax 1.5 HP Sewage Drainage Pump DTR 150 Dimensions
| Dimensions (mm) | Weight (kg) | ||||||
| Ct | Ht | R | It | mt | Mt | DNM | 38 |
| 513 | 102 | 117 | 174 | 205 | 475 | 2”G | |
Pentax 1.5 HP Sewage Drainage Pump DTR 150 Applications
- Wastewater and sewage pumping
- Drainage in industrial and residential settings
- Liquid transfer in construction sites
- Flood and water removal tasks
Pentax 1.5 HP Sewage Drainage Pump DTR 150 Benefits
- High durability with cast iron construction
- Reliable sealing system for long-term use
- Suitable for deep submersion up to 20 meters
- Flexible voltage options for various power supplies
