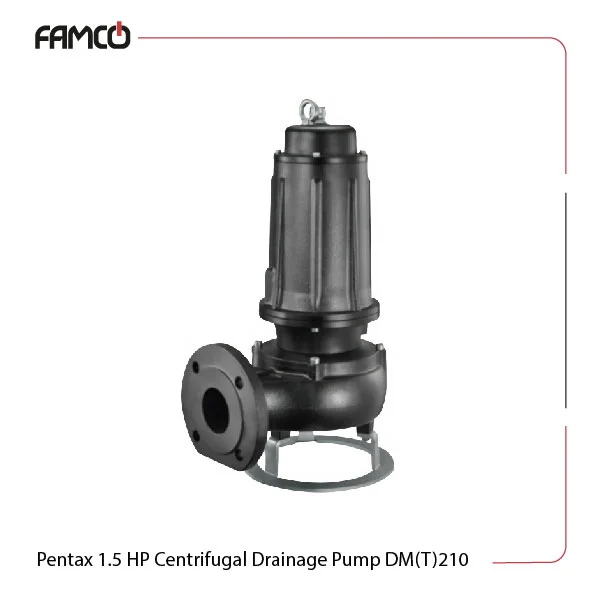

Pentax 1.5 HP Centrifugal Drainage Pump DM(T)210 Specifications
This pump features a powerful cast iron body and impeller. This Pentax pump is equipped with a silicon carbide mechanical seal on the pump side and a ceramic-graphite seal on the motor side, providing excellent protection against wear and tear. The pump can operate at a maximum immersion depth of 20 meters and handle liquid temperatures ranging from 0 to 40 degrees Celsius, all notable coming from a drainage pump of this power. Designed for a frequency of 50Hz, this series of Pentax submersible pumps has an insulation class of F and a protection degree of IPX8, making it suitable for various challenging environments. The pump supports both three-phase voltages (380, 400, 230/400, 400/690 V) and single-phase voltage (230 V). With a power output of 1.5 kW (2 HP), it achieves a maximum head of 19.9 meters and a flow rate of up to 60 m3/h, making it ideal for various applications.
| Specification | Value |
| Max. immersion depth (m) | 20 |
| Liquid temperature (℃) | 0-40 |
| Frequency | 50Hz |
| Insulation class | F |
| Protection degree | IPX8 |
| Three-phase voltage (V) | 380, 400, 230/400, 400/690 |
| Single-phase voltage (V) | 230 |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Head (m) | 5-19.9 |
| Max. flow rate (m3/h) | 60 |
Pentax 1.5 HP Centrifugal Drainage Pump DM(T)210 Materials
- Pump body: cast iron
- Impeller: cast iron
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic-graphite
Pentax 1.5 HP Centrifugal Drainage Pump DM(T)210 Technical Data
| M3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Head (m) | 19.9 | 18.4 | 16.7 | 15.2 | 13.8 | 12.4 | 11.3 | 10.1 | 8.6 | 7.0 | 5.2 |

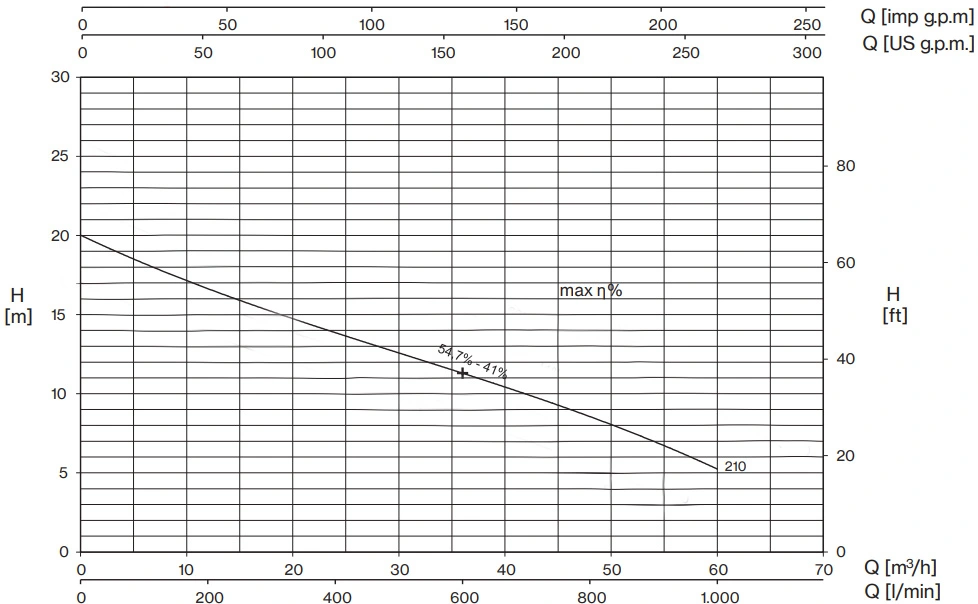

Pentax 1.5 HP Centrifugal Drainage Pump DM(T)210 Performance Curve
Pentax 1.5 HP Centrifugal Drainage Pump DM(T)210 Applications
- Water transfer for irrigation systems
- Industrial fluid handling
- Drainage in construction sites
- Aquaculture and fish farming
Pentax 1.5 HP Centrifugal Drainage Pump DM(T)210 Benefits
- Durable cast iron construction for long-lasting use
- High efficiency with a maximum flow rate of 60 m3/h
- Versatile operation in various temperature conditions
- Advanced sealing technology minimizes maintenance needs
Pentax 1.5 HP Centrifugal Drainage Pump DM(T)210 Price List
| No. | Name | Price |
| 1 | Pentax 1.5 HP Centrifugal Drainage Pump DM(T)210 Price | Contact us |
