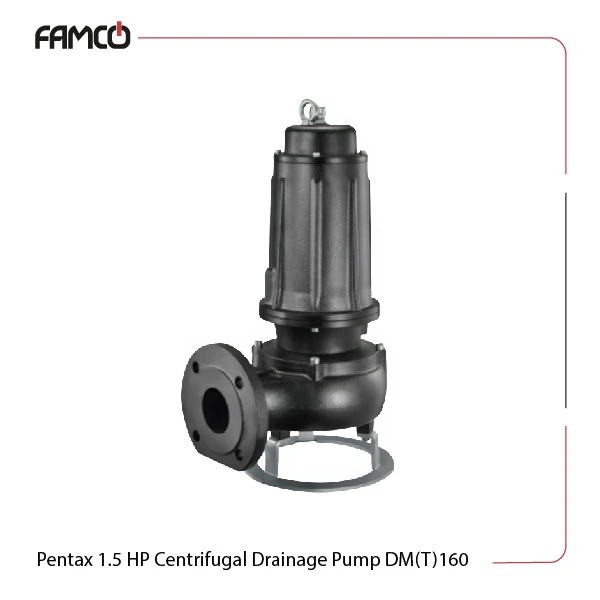

Pentax 1.5 HP Centrifugal Drainage Pump DM(T)160 Specifications
This pump features a durable cast iron body and impeller. This series of Pentax pumps is equipped with a silicon carbide mechanical seal on the pump side and a ceramic-graphite seal on the motor side, which provides excellent protection against wear and tear. The pump can operate at a maximum immersion depth of 20 meters, significant among submersible pumps, and handle liquid temperatures ranging from 0 to 40 degrees Celsius. Whether you need to move water or other compatible liquids, this 1.5 HP (1.1 kW) pump delivers efficiency and durability. Designed for a frequency of 50Hz, this Pentax drainage pump has an insulation class of F and a protection degree of IPX8, making it suitable for various environments. The pump supports both three-phase and single-phase voltages, with power ratings of 1.1 kW (1.5 HP). It can achieve a maximum head of 17 meters and a flow rate of up to 54 m3/h, making it efficient for various applications.
| Specification | Value |
| Max. immersion depth (m) | 20 |
| Liquid temperature (℃) | 0-40 |
| Frequency | 50Hz |
| Insulation class | F |
| Protection degree | IPX8 |
| Three-phase voltage (V) | 380, 400, 230/400, 400/690 |
| Single-phase voltage (V) | 230 |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Max. head (m) | 17 |
| Max. flow rate (m3/h) | 54 |
Pentax 1.5 HP Centrifugal Drainage Pump DM(T)160 Materials
- Pump body: cast iron
- Impeller: cast iron
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic-graphite
Pentax 1.5 HP Centrifugal Drainage Pump DM(T)160 Technical Data
| M3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 |
| Head (m) | 17.0 | 15.3 | 13.8 | 12.3 | 11.0 | 9.8 | 8.4 | 7.1 | 5.5 | 3.8 |

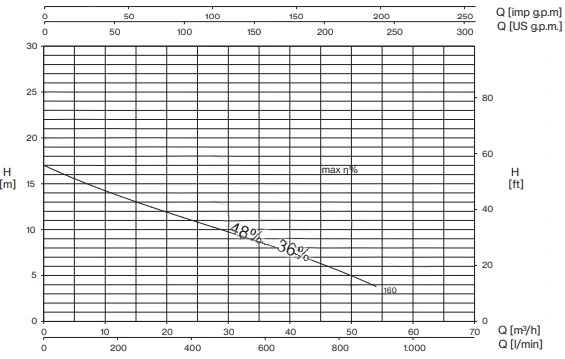

Pentax 1.5 HP Centrifugal Drainage Pump DM(T)160 Performance Curve
Pentax 1.5 HP Centrifugal Drainage Pump DM(T)160 Applications
- Irrigation systems in agriculture
- Water supply for industrial processes
- Drainage in construction sites
- Aquaculture and fish farming
Pentax 1.5 HP Centrifugal Drainage Pump DM(T)160 Benefits
- Durable cast iron construction for long-lasting use
- High efficiency with a maximum flow rate of 54 m3/h
- Versatile operation in various liquid temperatures
- Reliable mechanical seals reduce maintenance needs
Pentax 1.5 HP Centrifugal Drainage Pump DM(T)160 Price List
| No. | Name | Price |
| 1 | Pentax 1.5 HP Centrifugal Drainage Pump DM(T)160 Price | Contact us |
