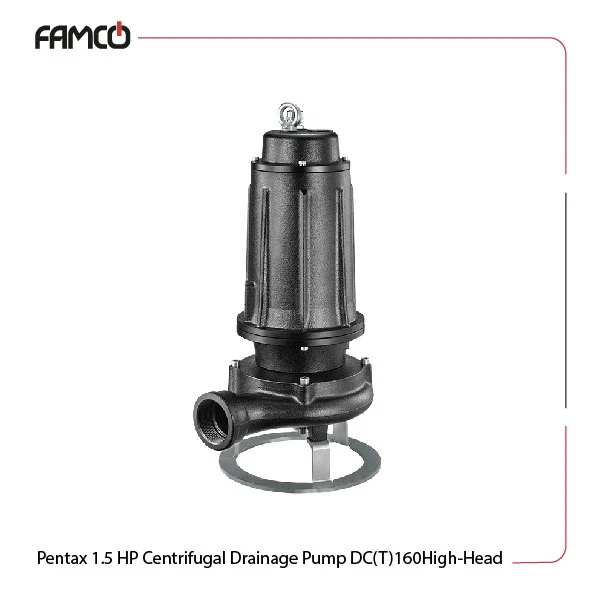

Pentax 1.5 HP Centrifugal Drainage Pump DC(T)160High-Head

1.1 kW (1.5 HP)

single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Drainage Pump Tags: Pentax Drainage Pump, Pentax Pumps

Overview of Pentax 1.5 HP Centrifugal Drainage Pump DC(T)160High-Head

The DC(T)160High-Head supports single-phase voltage of 230 V and three-phase voltages of 230, 400, 230/400, and 400/690 V with a pumping power of 1.5 HP. The maximum flow rate is an impressive 36 cubic meters per hour, with a head range of 3.0 to 18.9 meters. This product remains on the top-list of efficient pumps designed for various industrial and commercial applications. It excels in environments where water needs to be moved or managed effectively. Its high flow rate and solid handling capabilities take care of construction sites, agricultural irrigation, and wastewater management tasks. The durable design has made it a valuable asset for any operation requiring fluid transfer. This model is provided in both single- or three-phase versions.

Pentax 1.5 HP Centrifugal Drainage Pump DC160High-Head (single-phase)

Pentax 1.5 HP Centrifugal Drainage Pump DCT160High-Head (three-phase)

Pentax 1.5 HP Centrifugal Drainage Pump DC(T)160High-Head Specifications

This 1.5 HP product is designed to operate efficiently in a temperature range of 0 to 40 degrees Celsius. This collection of Pentax pumps can handle solid sizes up to 10 mm. The maximum immersion depth is 20 meters, allowing for versatile installation options while delivering flow rates of up to 600 l/min. With a two-pole configuration, this submersible pump ensures reliable performance. The insulation class is rated F to provide good thermal protection. It has a high protection degree of IP X8, which is waterproof and can withstand harsh conditions. Operating at a frequency of 50 Hz, this drainage pump delivers a power output of 1.1 kW or 1.5 HP.

Specification	Value
Max temperature (°C)	0-40
Max solids size (mm)	10
Maximum immersion (m)	20
No. of Poles	2
Insulation Class	F
Protection degree	IP X8
Frequency (Hz)	50
Power (kW)	1.1
Power (HP)	1.5
Max. flow rate (m3/h)	36
Head (m)	3.0-18.9
Single-phase voltage (V)	230
Three-phase voltage (V)	230, 400, 230-400, 400-690

Pentax 1.5 HP Centrifugal Drainage Pump DC(T)160High-Head Materials

Pump body: cast iron
Impeller: cast iron
Mechanical seal on pump side: silicon carbide
Mechanical seal on motor side: ceramic-graphite

Pentax 1.5 HP Centrifugal Drainage Pump DC(T)160High-Head Technical Data

m3/h	0	6	12	18	24	30	36
l/min	0	100	200	300	400	500	600
Head (m)	18.9	17.9	16.4	14.3	11.4	7.6	3.0

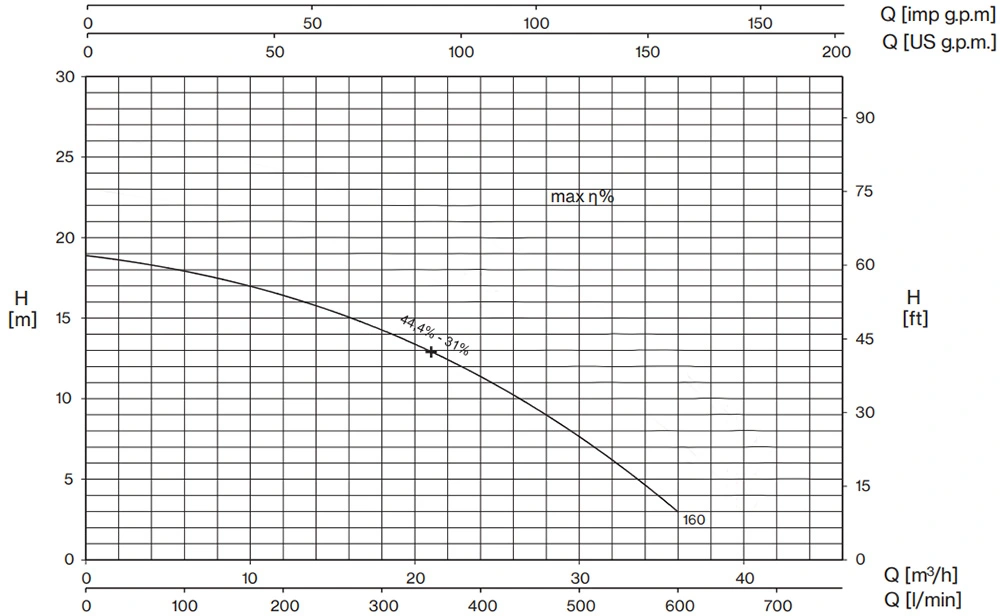

Pentax 1.5 HP Centrifugal Drainage Pump DC(T)160High-Head Performance Curve

Pentax 1.5 HP Centrifugal Drainage Pump DC(T)160High-Head Applications

Construction site dewatering
Agricultural irrigation systems
Wastewater management
Industrial fluid transfer

Pentax 1.5 HP Centrifugal Drainage Pump DC(T)160High-Head Benefits

High flow rate of 36 m3/h for efficient operation
Can handle solids up to 10 mm, reducing clogging
IP X8 rating ensures waterproof performance
Versatile voltage options for different setups

Pentax 1.5 HP Centrifugal Drainage Pump DC(T)160High-Head Price List

No.	Name	Price
1	Pentax 1.5 HP Centrifugal Drainage Pump DC(T)160High-Head Price	Contact us

Brand	Pentax
Maximum Liquid Temperature (°C)	40
Maximum immersion depth (m)	20
Number of Poles	2
Insulation Class	F
Degree of Protection	IPX8
Frequency (Hz)	50
Power (kW)	1.1
Power (HP)	1.5
Maximum Flow Rate (m3/h)	36
Maximum Delivery Head (m)	18.9
Voltage (V)	230, 230-400, 400, 400-690
Impeller Material	Cast Iron
Mechanical Seal	Ceramic/Graphite, Silicon Carbide
Applications	Construction Site Dewatering, Drainage, Fluid Transfer, Garden irrigation, Wastewater management
