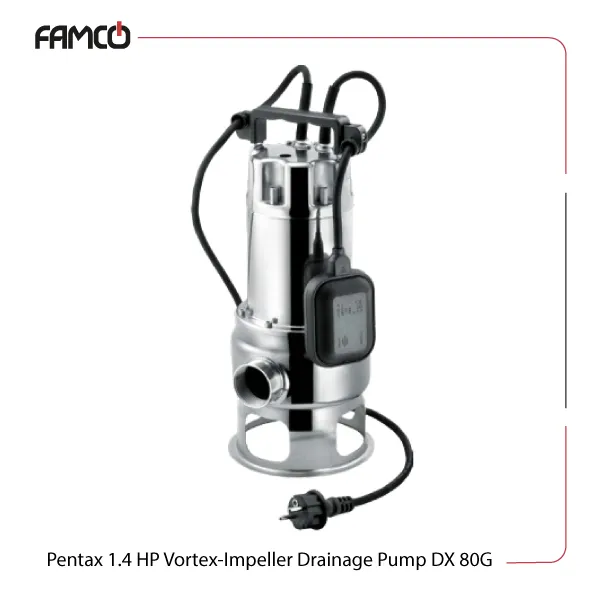

Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80G

1.05 kW (1.4 HP)

Single- or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80G

This 1.4 HP (1.05 kW) high-quality stainless steel pump is suitable for continuous submersion up to 5 meters. This pump is perfect for use in various settings, including industrial, residential, and agricultural environments. It features automatic operation with a float switch, ensuring ease of use. The device is compatible with standard power supplies and offers a good balance of power and flow rate. Its durable seals and corrosion-resistant materials ensure long-term performance, even in challenging conditions. The presented Pentax draiange pump is offered in two modes:

Pentax 1.4 HP Vortex-Impeller Drainage Pump DX80 (G) (Single-phase)

Pentax 1.4 HP Vortex-Impeller Drainage Pump DXT 80 (Three-phase)

Related Products

Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80G Specifications

This pump features a durable stainless steel body and impeller, making it suitable for various demanding environments. It is equipped with a silicon carbide mechanical seal on the pump side and a sealing ring on the motor side, ensuring reliable operation and longevity. The device can operate at a maximum immersion depth of 5 meters and handles liquids with temperatures from 0 to 40 degrees Celsius. You could opt for including a float switch (G) for automatic operation. This Pentax drainage pump has a two-pole motor, compatible with both 230V single-phase and 400V three-phase power supplies, operating at 50Hz. Its insulation class is F, providing good thermal resistance, and it boasts an IPX8 protection degree to make continuous submersions a breeze. The motor inside this Pentax pump consumes 1.05 kW (1.4 HP) and can deliver a maximum flow rate of 200 liters per minute, with a maximum head of 7.4 meters, making it ideal for water transfer, drainage, and other fluid handling tasks.

Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80G



Specification Value
Pump body stainless steel
Impeller stainless steel
Mechanical seal on pump side silicon carbide
Mechanical seal on motor side sealing ring
Max. immersion depth (m) 5
Liquid temperature (°C) 0-40
G float switch
Number of poles 2
Voltage (V) 230 (single-phase), 400 (three-phase)
Frequency (Hz) 50
Insulation class F
Protection degree IPX8
P1 (kW) 1.05
P1 (HP) 1.4
Max. flow rate (l/min) 200
Max. delivery head (m) 7.4



Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80G Performance Data

m³/h 0 3 6 9 12
l/min 0 50 100 150 200
Head (M) 7.4 6.3 5.4 4.5 3.5

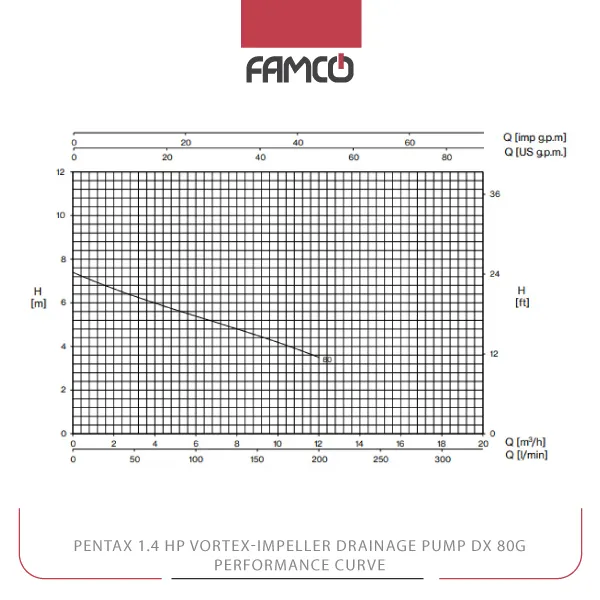

Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80G Performance Curve

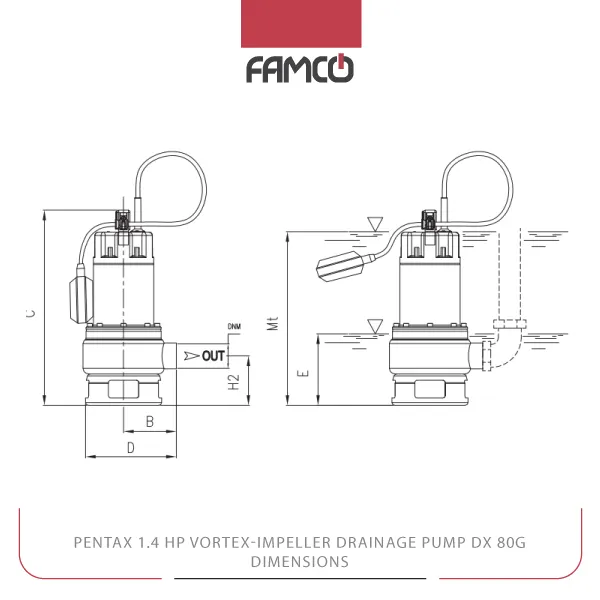

Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80G Dimensions

Dimensions (mm) Weight (kg)
B C D E H2 Mt DNM 10.5
104 400 183 125 112 280 1” ½ G



Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80G Dimensions



Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80G Applications

  • Water transfer in industrial settings
  • Drainage and sewage management
  • Irrigation systems in agriculture
  • Flood control and emergency water removal



Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80G Benefits

  • Durable stainless steel construction for longevity
  • Reliable silicon carbide seals prevent leaks
  • Automatic operation with float switch
  • High flow rate and strong head for versatile use



Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80G Price List

No. Name Price
1 Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80G Price Contact us
Brand

Pump Body

Maximum immersion depth (m)

Maximum Liquid Temperature (°C)

Voltage (V)

,

Frequency (Hz)

Insulation Class

Degree of Protection

Power (HP)

Power (kW)

Maximum Flow Rate (L/min)

Maximum Delivery Head (m)
