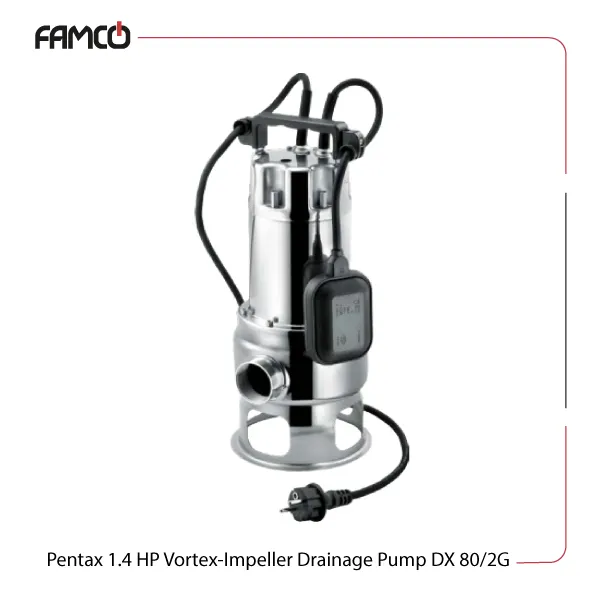

Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80/2

1.05 kW (1.4 HP)

Single- or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80/2

The DX 80/2 Pentax pump available here has the advantage of delivering 7.4-meter heads. Made with stainless steel, it offers durability and corrosion resistance. Its features include a float switch for automatic operation, making it easy to use in different settings. Suitable for depths up to 5 meters, it works well with water temperatures from 0 to 40°C. The pump is versatile, fitting both residential and industrial needs. Its compact size, slightly larger than the DX 80 model, makes this Pentax drainage pump easy to install and handle. With a powerful motor and a maximum of 200 liters per minute flow rate, it has it all for quick and reliable water movement. The pump’s sturdy construction, matched with a waterproof design, makes it the power tool for continuous operation in challenging environments. Whether for draining pools, basements, or industrial tanks, this pump provides a dependable solution for various water management tasks. This DX Pentax submersible pump has models that operate in two modes:

Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80/2G (Single-phase)

Pentax 1.4 HP Vortex-Impeller Drainage Pump DXT 80/2 (Three-phase)

Related Products

Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80/2 Specifications

This pump features a durable stainless steel body and impeller, ensuring longevity and resistance to corrosion. It is equipped with a silicon carbide mechanical seal on the pump side, providing a reliable seal under demanding conditions. The motor side utilizes a sealing ring for added protection. The pump can operate at a maximum immersion depth of 5 meters, making it suitable for various submersible applications. It handles liquids within a temperature range of 0 to 40 degrees Celsius, making this Pentax submersible pump suitable for water and light liquids. The device includes a float switch (G) for automatic operation, and it has a two-pole motor that runs on either 230V single-phase or 400V three-phase power supplies at 50Hz frequency. The insulation class is F, offering good thermal resistance throughout the Pentax drainage pump’s operations. The Pentax pump presented to you here has an IPX8 protection degree, making it fully waterproof for underwater use. The pump consumes 1.05 kW (or 1.4 HP), with a maximum flow rate of 200 liters per minute and a delivery head of up to 7.4 meters. It weighs approximately 10.5 kilograms and is slightly larger than the DX 80 model, suitable for various industrial and domestic applications requiring reliable water pumping and drainage solutions.

Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80/2



Specification Value
Pump body stainless steel
Impeller stainless steel
Mechanical seal on pump side silicon carbide
Mechanical seal on motor side sealing ring
Max. immersion depth (m) 5
Liquid temperature (° C) 0-40
G float switch
Number of poles 2
Voltage (V) 230 (single-phase), 400 (three-phase)
Frequency (Hz) 50
Insulation class F
Protection degree IPX8
P1 (kW) 1.05
P1 (HP) 1.4
Max. flow rate (l/min) 200
Max. delivery head (m) 7.4
Weight (kg) 10.5
Dimensions slightly bigger than the DX 80 model



Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80/2 Performance Data

m³/h 0 3 6 9 12
l/min 0 50 100 150 200
Head (M) 7.4 6.3 5.4 4.5 3.5

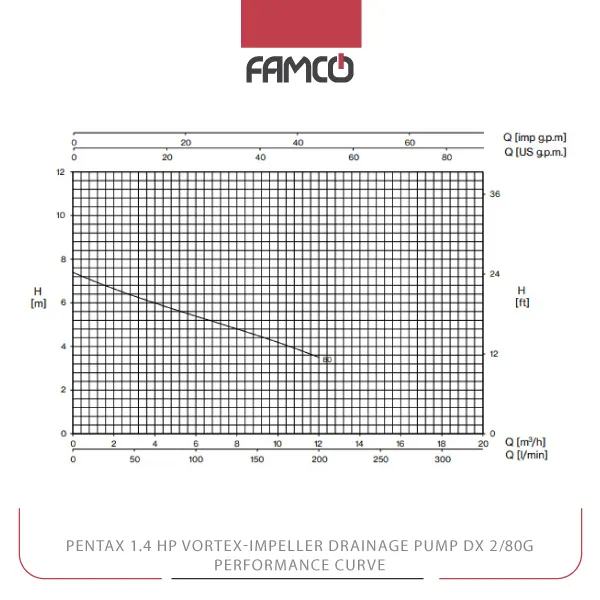

Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80/2 Performance Curve

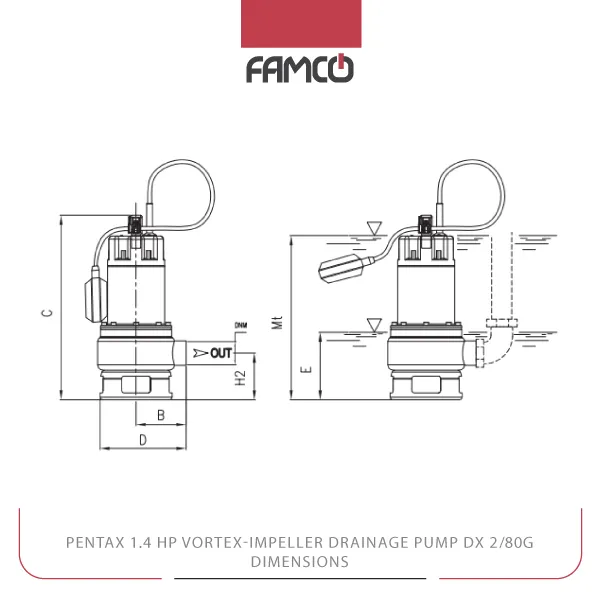

Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80/2 Dimensions

Dimensions (mm) Weight (kg)
B C D E H2 Mt DNM 10.5
114 400 183 125 112 280 2 G



Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80/2 Dimensions



Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80/2 Applications

  • Drainage of flooded areas
  • Water transfer in industrial processes
  • Pool and fountain water circulation
  • Sewage and wastewater management



Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80/2 Benefits

  • Durable stainless steel construction
  • Reliable silicon carbide seal
  • Automatic operation with float switch
  • High flow rate and strong head capacity



Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80/2 Price List

No. Name Price
1 Pentax 1.4 HP Vortex-Impeller Drainage Pump DX 80/2 Price Contact us
Brand

Pump Body

Impeller Material

Maximum immersion depth (m)

Maximum Liquid Temperature (°C)

Number of Poles

Voltage (V)

,

Frequency (Hz)

Insulation Class

Degree of Protection

Power (HP)

Power (kW)

Maximum Flow Rate (L/min)

Weight (kg)
