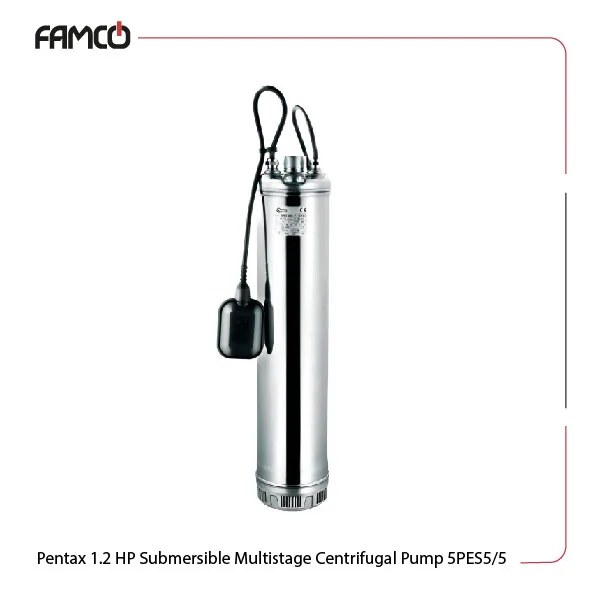

Pentax 1.2 HP Submersible Multistage Centrifugal Pump 5PES5/5 Specifications
This product features a solid construction with an external jacket, impellers, and diffusers made from a durable material, AISI 304 steel, which is resistant to corrosion. The pre-filter sieve has a size of 2.5 mm for effective filtration while maintaining a maximum solids passage of 2 mm. It can operate at a maximum immersion depth of 20 meters and handle liquid temperatures ranging from 5 to 40 °C. The device is available in both three-phase (380/415V) and single-phase (220/240V) versions, with a frequency of 50 Hz. These Pentax submersible pumps have an insulation class of F and a protection degree of IP68; suitable for various environments. The product’s power output of 1.2 HP (0.9 kW) and a flow rate between 23 to 57.1 liters per minute achieves a head of 15.3 to 43.4 meters for different applications.
| Specification | Value | |
| Pre-filter sieve | 2 mm | |
| Max. Solids passage (mm) | 2.5 | |
| Max. Immersions depth (m) | 20 | |
| Max. Liquids temperature (°C) | 5-40 | |
| Voltage (V) | three-phase version | 380/415V |
| single-phase versions | 220/240V | |
| Frequency (Hz) | 50 | |
| Insulation class | F | |
| Protection degree | IP68 | |
| Power (HP) | 1.2 | |
| Power (kW) | 0.9 | |
| Flow rate (l/min) | 23-57.1 | |
| H (m) | 15.3-43.4 | |
Pentax 1.2 HP Submersible Multistage Centrifugal Pump 5PES5/5 Materials
- External jacket, impellers and diffusers: steel AISI 304
- Mechanical Seal: Ceramic alumina, Carbon Graphite, NBR
- Impeller: AISI 304

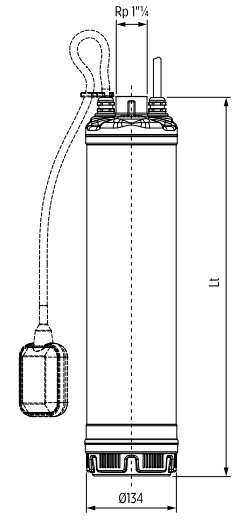

Pentax 1.2 HP Submersible Multistage Centrifugal Pump 5PES5/5 Dimensions and Weight
| Type | Dimensions (mm) | Weight (kg) | |||
| 1~ | 3~ | Lt | DNM | 1~ | 3~ |
| 5PES 5/5 | 5PEST 5/5 | 544 | 1” ¼ G | 15.7 | 14.5 |
Pentax 1.2 HP Submersible Multistage Centrifugal Pump 5PES5/5 Technical Data
| Single-phase | M3/h | 0 | 1.5 | 2 | 2.5 | 3 | 4.5 | 7.5 |
| l/min | 0 | 25 | 33.3 | 41.7 | 50 | 75 | 125 | |
| H (m) | 57.1 | 50.5 | 49 | 42.9 | 40.7 | 35.1 | 23 | |
| Three-phase | M3/h | 0 | 1.5 | 2 | 2.5 | 3 | 4.5 | 7.5 |
| l/min | 0 | 25 | 33.3 | 41.7 | 50 | 75 | 125 | |
| H (m) | 56.7 | 49.7 | 48 | 41.8 | 39.6 | 33.8 | 21.6 |

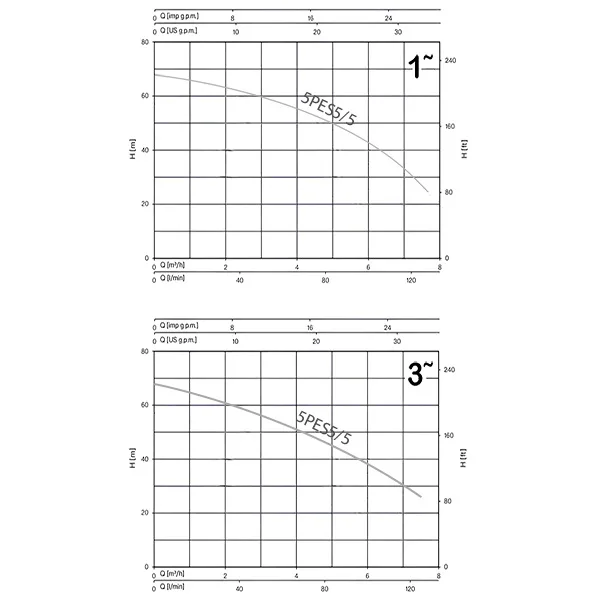

Pentax 1.2 HP Submersible Multistage Centrifugal Pump 5PES5/5 Performance Curve
Pentax 1.2 HP Submersible Multistage Centrifugal Pump 5PES5/5 Applications
- Water transfer in industrial settings
- Chemical processing and handling
- Wastewater management
- Irrigation systems
Pentax 1.2 HP Submersible Multistage Centrifugal Pump 5PES5/5 Benefits
- Durable AISI 304 steel construction
- High efficiency with adjustable flow rates
- Versatile for various liquid types and conditions
- IP68 protection for reliable performance in wet environments
Pentax 1.2 HP Submersible Multistage Centrifugal Pump 5PES5/5 Price List
| No. | Name | Price |
| 1 | Pentax 1.2 HP Submersible Multistage Centrifugal Pump 5PES5/5 Price | Contact us |
