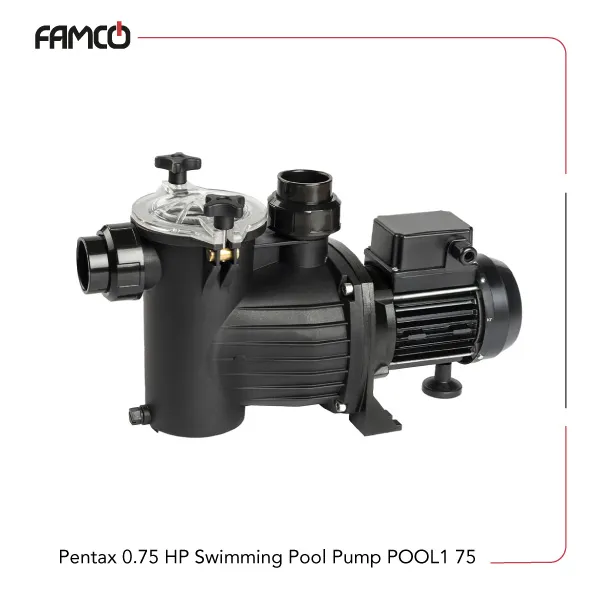

Pentax 0.75 HP Swimming Pool Pump POOL1 75

0.55 kW (0.75 HP)

Single- or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Pentax 0.75 HP Swimming Pool Pump POOL1 75

The 2-pole POOL1 75 Pentax swimming pool pump offers a 0.75 HP pumping power, with flow rates of up to 266 l/min. The most liquid temperature it handles must be up to 40 °C, which is perfect for most residential or domestic usages. Proper sealing of this Pentax pump is achieved by using a ceramic-graphite-AISI 316 combination of materials. The motor shaft is made from AISI 316 stainless steel, while the motor’s inculation class and protection degree are set at F and IP55. You can get this pump operating on two power setups:

Pentax 0.75 HP Swimming Pool Pump POOL1 75M (Single-phase)

Pentax 0.75 HP Swimming Pool Pump POOL1 75T (Three-phase)

Related Products

Pentax 0.75 HP Swimming Pool Pump POOL1 75 Specifications

This 0.75 HP Pentax swimming pool pump is from the POOL1 series. The maximum delivery heads reach up to 14 meters with flow rates getting up to 16 m³/h or 266 l/min. As one of the powerful POOL1 series Pentax pumps, the 75 has the potential to integrate with most mid-size swimming pool pumps in different settings, from domestic or residential scale usages. This Pentax pump operates on two power setups ranging from 230 to 400 V, which makes it an accessible solution to increase the pools’ water quality. The insulation class of this product is set at F, with an IP55 protection degree. An aluminum motor bracket and noryl impeller, matched with ceramic-graphite-AISI 316 mechanical seal, proves it is a sturdy swimming pool pump. This Pentax swimming pool pump is equipped with a polycarbonate pre-filter cover, that makes inspectingm the sieve easier than ever. This way clogs are easily identified and cleaned, before permanent damage to the pump itself.

Pentax 0.75 HP Swimming Pool Pump POOL1 75



Specification Value
Number of poles 2
Single-phase voltage (V) 230/400
Three-phase voltage (V) 400
Insulation class F
Protection IP55
Pump body, seal housing, diffuser polypropylene + fiberglass
Impeller Noryl
mechanical seal ceramic-graphite-AISI 316
Liquid temperature max 40 °C max 40 °C
Power (kW) 0.55
Power (HP) 0.75
Head (m) 14
Flow rate (m³/h) 16
Single-phase weight (kg) 10.9
Three-phase weight (kg) 10.8

Pentax 0.75 HP Swimming Pool Pump POOL1 75 Performance Data

H (m) 4 6 8 10 12 14
m³/h 16 15 12.5 10 8 4.2

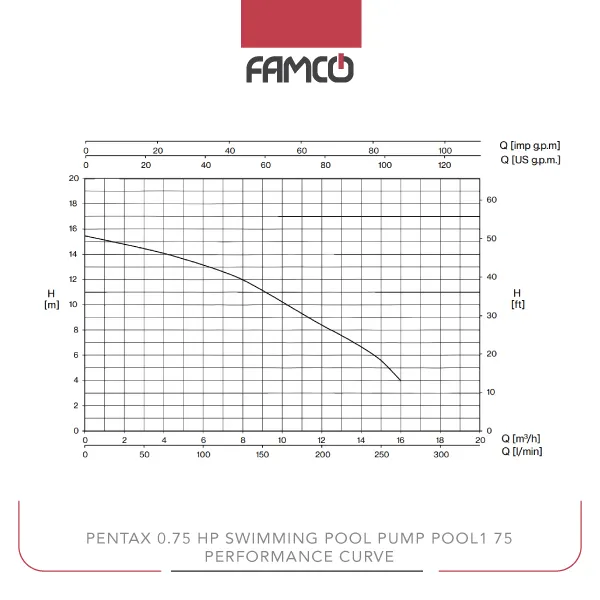

Pentax 0.75 HP Swimming Pool Pump POOL1 75 Performance Curve



Pentax 0.75 HP Swimming Pool Pump POOL1 75 Applications

  • Domestic or residential scale swimming pools
  • Increased water circulation in swimming pools
  • Maintaining swimming pools’ water quality



Pentax 0.75 HP Swimming Pool Pump POOL1 75 Benefits

  • Enhanced water circulation
  • Visible pre-filter sieve
  • Resistant to pool chemicals



Pentax 0.75 HP Swimming Pool Pump POOL1 75 Price List

No. Name Price
1 Pentax 0.75 HP Swimming Pool Pump POOL1 75 Price Contact us
Brand

Applications

, ,

Power (kW)

Power (HP)

Maximum Flow Rate (m3/h)

Maximum Delivery Head (m)

Weight (kg)

,
