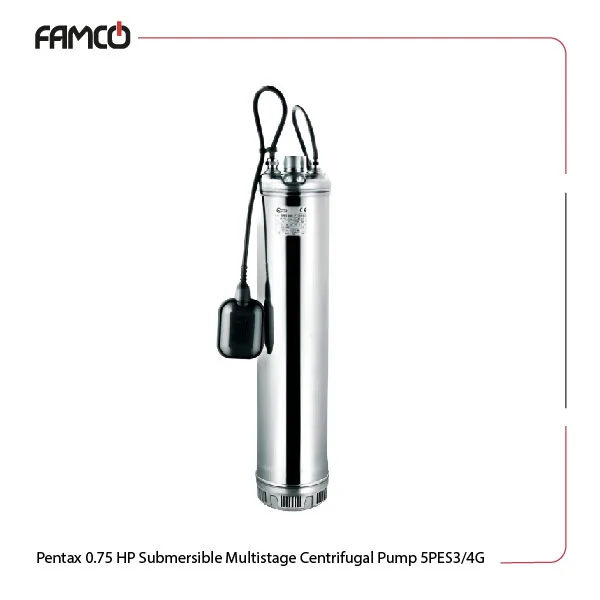

Pentax 0.75 HP Submersible Multistage Centrifugal Pump 5PES3/4G Specifications
This product features a powerful construction with an external jacket, impellers, and diffusers made from AISI 304 steel for durability and resistance to corrosion. This Pentax submersible pump has a pre-filter sieve with a size of 2 mm to enable an overall efficient filtration. The maximum solids passage is also 2 mm, considering it is suitable for handling small particles. This pump unit can operate at a maximum immersion depth of 20 m and handle liquid temperatures ranging from 5 to 40 degrees Celsius. It is available in both three-phase (380/415V) and single-phase (220/240V) versions, functioning with a frequency of 50 Hz. The insulation class is rated F, and it operates using a protection degree of IP68 to respond well at wet environments.
The power output of 5PES3/4G is 0.75 HP (0.55 kW), with a flow rate ranging from 25 to 75 liters per minute and a head range of 15.3 to 43.4 meters.
| Specification | Value | |
| Pre-filter sieve | 2 mm | |
| Max. Solids passage (mm) | 2 | |
| Max. Immersions depth (m) | 20 | |
| Max. Liquids temperature (°C) | 5-40 | |
| Voltage (V) | three-phase version | 380/415V |
| single-phase versions | 220/240V | |
| Frequency (Hz) | 50 | |
| Insulation class | F | |
| Protection degree | IP68 | |
| Power (HP) | 0.75 | |
| Power (kW) | 0.55 | |
| Flow rate (l/min) | 25-75 | |
| Head (m) | 15.3-43.4 | |
Pentax 0.75 HP Submersible Multistage Centrifugal Pump 5PES3/4G Materials
- External jacket, impellers and diffusers: steel AISI 304
- Mechanical Seal: Ceramic alumina, Carbon Graphite, NBR
- Impeller: AISI 304

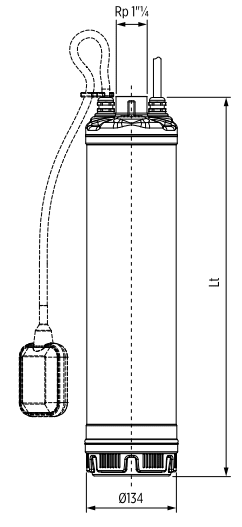

Pentax 0.75 HP Submersible Multistage Centrifugal Pump 5PES3/4G Dimensions and Weight
| Type | Dimensions (mm) | Weight (kg) | |||
| 1~ | 3~ | Lt | DNM | 1~ | 3~ |
| 5PES 3/4 | 5PEST 3/4 | 470 | 1” ¼ G | 12.7 | 14 |
Pentax 0.75 HP Submersible Multistage Centrifugal Pump 5PES3/4G Technical Data
| Single-phase | M3/h | 0 | 1.5 | 2 | 2.5 | 3 | 4.5 |
| l/min | 0 | 25 | 33.3 | 41.7 | 50 | 75 | |
| H (m) | 43.4 | 37.7 | 34.8 | 31.3 | 27.9 | 15.3 | |
| Three-phase | M3/h | 0 | 1.5 | 2 | 2.5 | 3 | 4.5 |
| l/min | 0 | 25 | 33.3 | 41.7 | 50 | 75 | |
| H (m) | 44.8 | 40.1 | 37.4 | 34.2 | 30.8 | 18.3 |

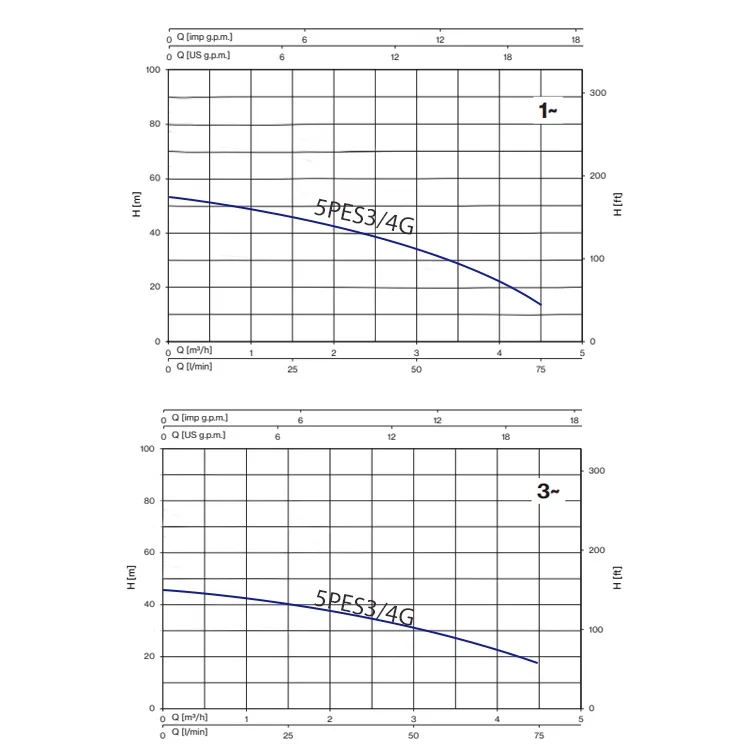

Pentax 0.75 HP Submersible Multistage Centrifugal Pump 5PES3/4G Performance Curve
Pentax 0.75 HP Submersible Multistage Centrifugal Pump 5PES3/4G Applications
- Drainage in residential and commercial properties
- Irrigation systems for agricultural use
- Wastewater management in industrial settings
- Pumping of clean or slightly contaminated liquids
Pentax 0.75 HP Submersible Multistage Centrifugal Pump 5PES3/4G Benefits
- Durable AISI 304 steel construction for long-lasting use
- Efficient filtration with a 2 mm pre-filter sieve
- Versatile operation with a wide range of flow rates
- High protection degree (IP68) for reliable performance in wet conditions
Pentax 0.75 HP Submersible Multistage Centrifugal Pump 5PES3/4G Price List
| No. | Name | Price |
| 1 | Pentax 0.75 HP Submersible Multistage Centrifugal Pump 5PES3/4G Price | Contact us |
