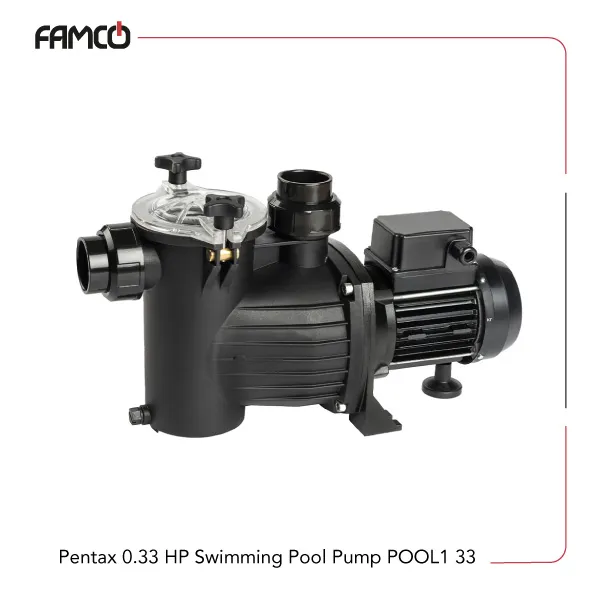

Pentax 0.33 HP Swimming Pool Pump POOL1 33 Specifications
The 0.33 HP Pentax pump is a swimming pool circulation solution that you can use in residential-sized pools. Made to world-class standards, these Pentax pumps manage flow rates of up to 12 m3/h with heads as high as 12 meters (maximum amounts). The POOL1 series of Pentax swimming pool pumps are compatible with single and three-phase power setups, so that everyone can integrate them into their swimming pools. Weighing around 10 kg, depending on the voltage setup, this Pentax pump’s weight stands at a manageable scale. Pentax has used polypropylene + fiberglass in this pump’s body, seal housing, and diffuser. The aluminum motor bracket keeps it running without corrosion, and the noryl impeller handles significant flow rates. This swimming pool pump can tolerate liquid temperatures of up to 40 °C, suitable for most pools. The Pentax pump’s spec shows its insulation class is rated F with an IP55 protection degree.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230/400 |
| Three-phase voltage (V) | 400 |
| Insulation class | F |
| Protection | IP55 |
| Pump body, seal housing, diffuser | polypropylene + fiberglass |
| Impeller | Noryl |
| mechanical seal | ceramic-graphite-AISI 316 |
| Liquid temperature max 40 °C | max 40 °C |
| Power (kW) | 0.25 |
| Power (HP) | 0.33 |
| Head (m) | 12 |
| Flow rate (m³/h) | 12 |
| Single-phase weight (kg) | 9.5 |
| Three-phase weight (kg) | 10.8 |
Pentax 0.33 HP Swimming Pool Pump POOL1 33 Performance Data
| H (m) | 4 | 6 | 8 | 10 | 12 |
| m³/h | 12 | 10 | 8 | 5.5 | 2.0 |
Pentax 0.33 HP Swimming Pool Pump POOL1 33 Applications
- Mid-size to small swimming pool pumps
- Preserving swimming pool water quality
- Preventing water stagnation
Pentax 0.33 HP Swimming Pool Pump POOL1 33 Benefits
- Enhanced water circulation
- Visible pre-filter sieve
- Resistant to pool chemicals
Pentax 0.33 HP Swimming Pool Pump POOL1 33 Price List
| No. | Name | Price |
| 1 | Pentax 0.33 HP Swimming Pool Pump POOL1 33 Price | Contact us |
