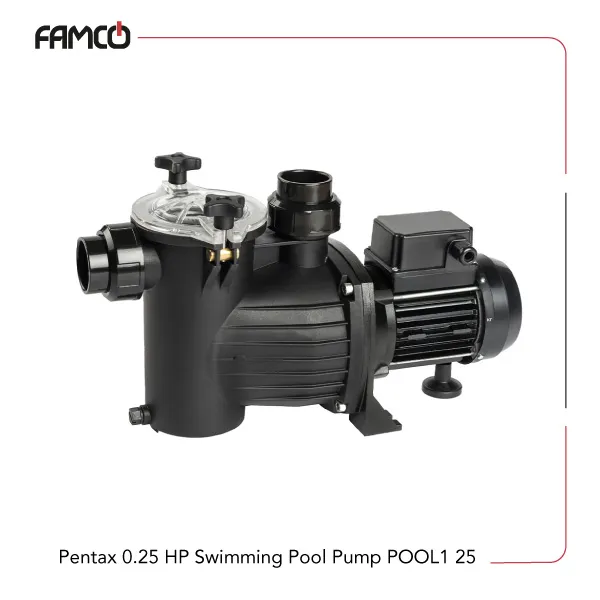

Pentax 0.25 HP Swimming Pool Pumps POOL1 25 Specifications
This POOL1 series Pentax swimming pool pump achieves 10 m3/h flow rates (166 l/min ), with heads as high as 12 meters. This 0.16 kW Pentax pump is a single and three-phase-compatible solution for residential swimming pools. Weighing only 9.5 kg in the single-phase version and 10.8 kg in the three-phase version, it is considered a compact and portable solution, as well. This Pentax swimming pool pump uses ceramic-graphite-AISI 316 as mechanical seals and a stainless steel motor shaft. With a 2-pole configured induction motor, it operates on a 50 Hz-friendly power setup. The POOL1 25 Pentax pump is protected with an IP55 degree. All the materials used in this Pentax pump series point to one thing: it is resistant to chemicals found in most swimming pools.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230/400 |
| Three-phase voltage (V) | 400 |
| Insulation class | F |
| Protection | IP55 |
| Pump body, seal housing, diffuser | polypropylene + fiberglass |
| Impeller | Noryl |
| mechanical seal | ceramic-graphite-AISI 316 |
| Liquid temperature max 40 °C | max 40 °C |
| Power (kW) | 0.16 |
| Power (HP) | 0.25 |
| Head (m) | 12 |
| Flow rate (m3/h) | 10 |
| Single-phase weight (kg) | 9.5 |
| Three-phase weight (kg) | 10.8 |

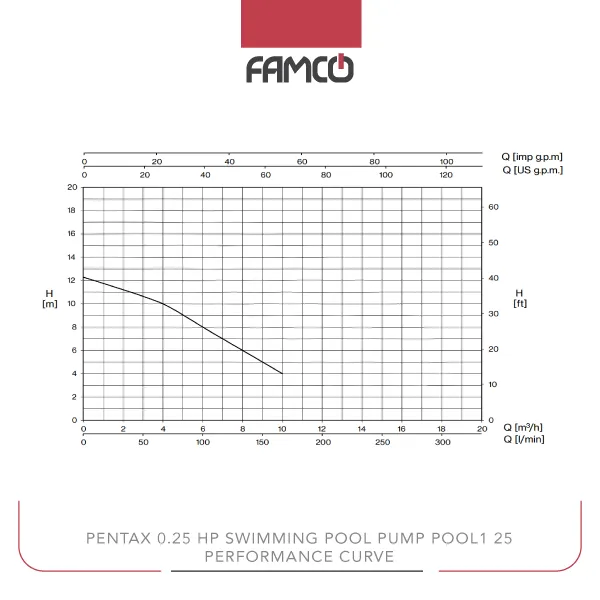

Pentax 0.25 HP Swimming Pool Pump POOL1 25 Performance Data
| H (m) | 4 | 6 | 8 | 10 | 12 |
| m³/h | 10 | 8 | 6 | 4 | 0.5 |
Pentax 0.25 HP Swimming Pool Pump POOL1 25 Applications
- Small residential or domestic swimming pools
- Swimming pools requiring high filtration
- Swimming pools relying on sufficient water circulation
Pentax 0.25 HP Swimming Pool Pump POOL1 25 Benefits
- Easy maintenance and inspection of the pump’s operation
- Made of durable materials
- Solid performance
Pentax 0.25 HP Swimming Pool Pumps POOL1 25 Price List
| No. | Name | Price |
| 1 | Pentax 0.25 HP Swimming Pool Pumps POOL1 25 Price | Contact us |
