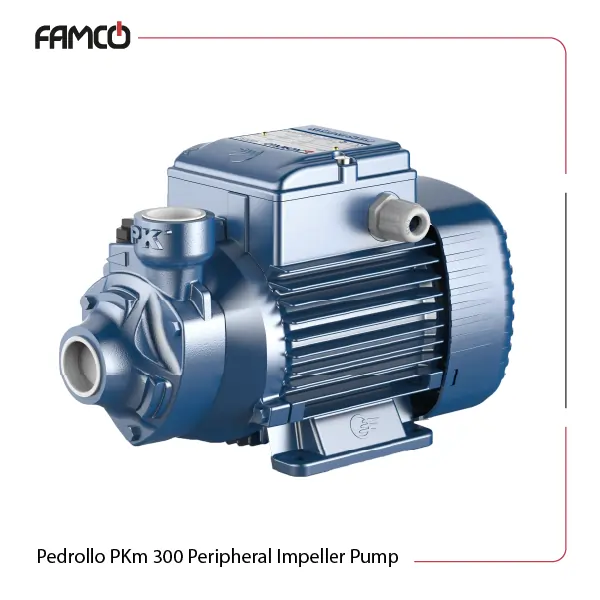

Overview of Pedrollo PKm300 Peripheral Impeller pump

The Pedrollo PKm300 Peripheral Impeller pump is a high-performance pump designed to transfer clean water free from abrasive particles and non-damaging liquids. It is reliable, easy to operate, and cost-effective. This pump is ideal for domestic applications, such as gardens and orchards, when used with small autoclave tanks. It features a flow rate of up to 90 l/min (5.4 m³/h) and a head of up to 100 m. The pump can handle a manometric suction head up to 8 m and liquid temperatures ranging from -10 °C to +60 °C. The ambient temperature limit is up to +40 °C.

The PKm300 model is equipped with a brass impeller with radial peripheral blades, floating on the shaft. The motor shaft is made of AISI 316 stainless steel. These pumps are directly coupled to an asynchronous, high-efficiency Pedrollo induction motor, which is quiet, closed, and externally ventilated, making it suitable for continuous duty. The maximum working pressure for the PKm300 model is 10 bar. Additionally, the pump comes with a non-return check valve for suction.

You can review the specifications of Pedrollo PKm300 Peripheral Impeller pump on this page.

How does Pedrollo PKm300 Peripheral Impeller pump work?

The Pedrollo PKm300 Peripheral Impeller pump operates by utilizing a brass impeller with radial peripheral blades to transfer clean water. When the pump is activated, the impeller spins rapidly, creating centrifugal force that moves the water from the center of the impeller to its edges. This action generates a high-pressure flow, which allows the pump to achieve a flow rate of up to 90 l/min (5.4 m³/h) and a head of up to 100 meters. The design ensures that the water is transferred efficiently without containing abrasive particles that could damage the pump components.

The motor, which is made of high-efficiency Pedrollo induction materials, drives the impeller. It is directly coupled to the pump, ensuring smooth and continuous operation. The motor shaft, constructed from AISI 316 stainless steel, provides durability and resistance to corrosion. The pump also features a non-return check valve for suction, which prevents backflow and maintains consistent water pressure. This combination of advanced impeller design and robust motor components allows the PKm300 to perform reliably in various domestic applications, such as garden irrigation and orchard watering.

Exclusive features and benefits of Pedrollo PKm300 Peripheral Impeller pump

The Pedrollo PKm300 Peripheral Impeller pump comes with several exclusive features and benefits:

• High Performance: The pump has a flow rate of up to 90 l/min (5.4 m3/h) and a head up to 100 m. It can handle a manometric suction head up to 8 m.
• Versatile Use: It is designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components. It is ideal for domestic applications, specifically for gardens and orchards, in combination with small autoclave tanks.
• Reliable and Cost-Effective: The pump is reliable, easy to operate, and cost-effective.
• Durable Construction: The pump is equipped with a brass impeller with radial peripheral blades, floating on the shaft. The motor shaft is made of AISI 316 stainless steel.
• Efficient Motor: The pumps are coupled directly to an asynchronous, high efficiency Pedrollo induction motor, which is quiet running, closed, and externally ventilated, with a structural shape suitable for continuous duty.
• High Working Pressure: The maximum working pressure for the PKm300 model is 10 bar.
• Built-in Check Valve: The pump comes with a non-return check valve for suction.

Pedrollo PKm300 Peripheral Impeller pump installation and usage

To install the Pedrollo PKm300 Peripheral Impeller pump:

• Positioning: Place the pump on a stable, dry surface close to the water source.
• Connections: Attach the suction and discharge pipes to the pump’s respective inlets and outlets, ensuring they are secure and leak-free.
• Priming: Fill the pump and suction line with water to remove any air pockets.
• Electrical: Connect the pump to a power supply according to the manufacturer’s wiring instructions, ensuring proper grounding.
• Testing: Turn on the pump and check for proper operation and any leaks. Adjust as necessary.

Usage:

The Pedrollo PKm Peripheral Impeller pump is suitable for various applications, including:

• Domestic Water Supply: Efficiently transfers clean water for household use.
• Garden Irrigation: Ideal for watering gardens, lawns, and small orchards.
• Boosting Pressure: Enhances water pressure in residential systems.
• Small Autoclave Tanks: Works effectively with small pressure tanks for water storage.
• Cooling Systems: Suitable for circulating water in cooling systems.
• Industrial Applications: Used in processes requiring clean water without abrasive particles.

Pedrollo PKm300 Peripheral Impeller pump components

The Pedrollo PKm300 Peripheral Impeller pump consists of several key components:

• Impeller: Made of brass with radial peripheral blades, responsible for creating centrifugal force to move water.
• Motor Shaft: Constructed from AISI 316 stainless steel, providing durability and corrosion resistance.
• Pump Body: Houses the impeller and motor shaft, typically made from robust materials for long-lasting performance.
• Motor: A high-efficiency asynchronous Pedrollo induction motor, which is quiet, closed, and externally ventilated, suitable for continuous duty.
• Suction and Discharge Ports: Inlets and outlets for connecting to water supply and discharge lines.
• Non-Return Check Valve: Prevents backflow and maintains consistent water pressure.
• Mechanical Seal: Ensures leak-free operation by sealing the interface between the motor and pump body.
• Cooling Fan: Helps in dissipating heat generated by the motor during operation.
• Terminal Box: Contains the electrical connections and wiring for the motor.

Important tips for buying Pedrollo PKm300 Peripheral Impeller pump

When buying a Pedrollo PKm300 Peripheral Impeller pump, consider these important tips:

• Application Needs: Ensure it matches your specific water transfer needs (e.g., garden irrigation, pressure boosting).
• Water Quality: Suitable for clean water free of abrasive particles.
• Flow Rate and Head: Check that its flow rate (up to 90 l/min) and head (up to 100 m) meet your requirements.
• Installation Environment: Ensure it can operate within the ambient and liquid temperature ranges.
• Power Supply: Verify compatibility with your electrical system.
• Component Quality: Look for durable materials like the brass impeller and stainless steel motor shaft.
• Warranty and Support: Consider the warranty period and availability of customer support.
• Price: You can check Pedrollo PKm300 Peripheral Impeller pump price on Famcocorp website.

You can buy Pedrollo Pumps online from Famcocorp.



Pedrollo PKm300 Peripheral Impeller Pump Price List

No.	Name	Price
1	Pedrollo PKm300 Peripheral Impeller Pump Price	Contact us
