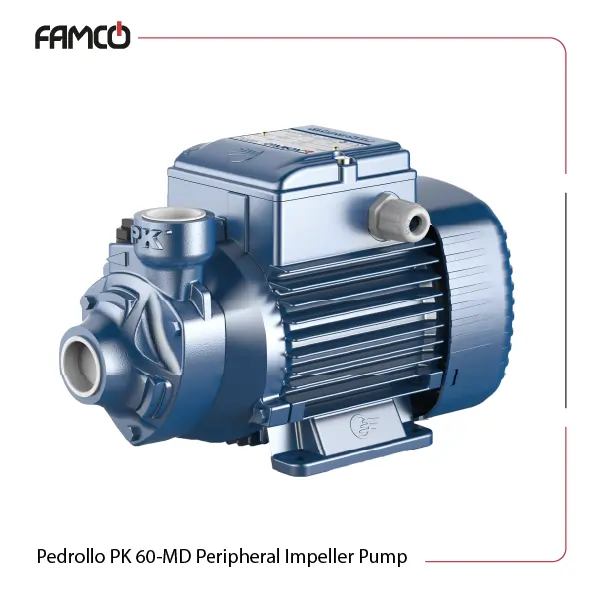

Overview of Pedrollo PK 60-MD Peripheral Impeller pump
The Pedrollo PK 60-MD Peripheral Impeller Pump is an efficient and cost-effective solution for various domestic applications such as garden irrigation and orchard maintenance, particularly when used with small autoclave tanks. This reliable pump is designed to transfer clean water and non-abrasive liquids with a flow rate of up to 40 liters per minute (2.4 cubic meters per hour) and a maximum head of 40 meters. It performs well in liquid temperatures ranging from -10°C to +60°C and can withstand ambient temperatures up to +50°C.
The Pedrollo PK 60-MD is built with a sturdy cast iron pump housing and a brass impeller. It includes an aluminum motor bracket with a brass cover and a stainless steel AISI 431 shaft. Operating at a maximum pressure of 6 bar, it is driven by a three-phase motor with a power output of 0.37 kW (0.5 HP). These characteristics combine to make the PK 60-MD a reliable and efficient option for a range of household water transfer requirements, providing dependable functionality and user-friendly operation.
You can review the specifications of Pedrollo PK 60-MD Peripheral Impeller pump on this page.
How does Pedrollo PK 60-MD Peripheral Impeller pump work?
This model of Pedrollo PK Peripheral Impeller Pump operates by harnessing the power of a rotating peripheral impeller to generate centrifugal force, which propels water from the inlet to the outlet. When the pump is turned on, water flows into the pump through the inlet and is drawn towards the rapidly rotating impeller, driven by a three-phase motor with a power output of 0.37 kW (0.5 HP). The impeller’s unique design creates a high-speed motion that boosts the water’s pressure as it moves radially outward from the center to the periphery. This pressure gradient enables the pump to transfer water from the low-pressure intake side to the high-pressure discharge side.
The water flows through the impeller and exits the pump through the outlet port after reaching the outer edge. The pump’s robust construction, which includes a cast iron housing, a brass impeller, and a stainless steel shaft, ensures efficient performance and longevity.
Exclusive features and benefits of Pedrollo PK 60-MD Peripheral Impeller pump
The Pedrollo PK 60-MD Peripheral Impeller pump offers several exclusive features and benefits:
- High Performance: The pump has a flow rate of up to 40 l/min (2.4 m3/h) and a head up to 40 m. It can operate in a liquid temperature between -10 °C and +60 °C, and an ambient temperature up to +50 °C.
- Versatile Use: It is designed for domestic applications, specifically for gardens and orchards, in combination with small autoclave tanks. It can transfer clean water free from abrasive particles and liquids that will not damage the pump’s components.
- Reliable and Economical: The pump is reliable, easy to operate, and cost-effective. It is our most economical and versatile product.
- Reduced Noise Level: The noise level of the pump is reduced by 20%.
- High Tolerance: The pump has a high tolerance to entrained air in the pumped liquid.
- Quality Construction: The pump housing is made of cast iron, the impeller is made of brass, and the shaft is made of stainless steel AISI 431. The motor bracket is made of aluminium with a brass cover.
Pedrollo PK 60-MD Peripheral Impeller pump installation and usage
Pedrollo PK 60-MD Peripheral Impeller Pump Installation:
- Place the pump on a level surface.
- Connect the suction and delivery pipes.
- Prime the pump by filling it with water.
- Connect to a three-phase power supply.
- Check for leaks and test the pump.
Usage:
- Garden Irrigation: Ideal for watering gardens, lawns, and flower beds efficiently.
- Orchard Maintenance: Perfect for providing water to fruit orchards and other small agricultural plots.
- Water Transfer: Useful for moving clean water between tanks, reservoirs, and cisterns.
- Domestic Water Supply: Suitable for supplying water to small residential systems.
- Pressure Boosting: Effective for boosting water pressure in household water systems.
Pedrollo PK 60-MD Peripheral Impeller pump components
The Pedrollo PK 60-MD Peripheral Impeller pump consists of the following key components:
- Pump Body: Made of cast iron, with UNI ISO 228/1 gas threaded suction and delivery ports.
- Motor Bracket: Made of aluminum with a brass insert. This patented design reduces difficulties when starting the pump after long periods without use.
- Impeller: Made of brass, with radial peripheral blades.
- Motor Shaft: Made of stainless steel.
- Mechanical Seal: Composed of ceramic, graphite, and NBR.
Important tips for buying Pedrollo PK 60-MD Peripheral Impeller pump
Essential factors to consider before purchasing the Pedrollo PK 60-MD Peripheral Impeller Pump:
- Application: Ensure the pump fits your needs. It’s best for domestic use, especially for tasks like garden irrigation, small pressure systems, and allotment watering.
- Performance: Evaluate the pump’s capabilities. It offers a flow rate of up to 40 l/min (2.4 m³/h) and can achieve a head of up to 40 meters. It operates within a liquid temperature range of -10°C to +60°C and an ambient temperature up to +50°C.
- Construction Materials: Check the quality of materials. The pump features a cast iron housing, a brass impeller, a stainless steel AISI 431 shaft, and an aluminium motor bracket with a brass cover.
- Installation: Plan for proper installation. The pump should be placed in a sheltered location or an enclosed environment to protect it from harsh weather.
- Reliability and Cost: Consider the pump’s reliability and value. It is known for being easy to operate, durable, and cost-effective.
- Price: You can check Pedrollo Pumps price on Famcocorp website.
You can buy Pedrollo PK 60-MD Peripheral Impeller Pump online from Famcocorp.
Pedrollo PK 60-MD Peripheral Impeller Pump Price List
| No. | Name | Price |
| 1 | Pedrollo PK 60-MD Peripheral Impeller Pump Price | Contact us |
