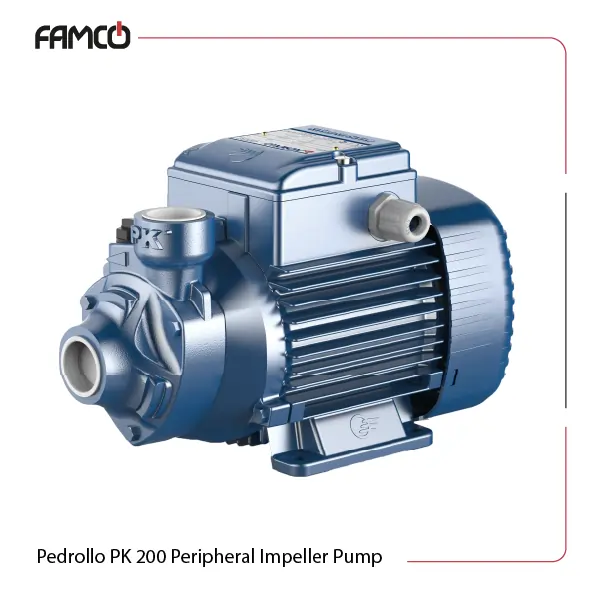

Pedrollo PK 200 Peripheral Impeller Pump

Overview of Pedrollo PK 200 Peripheral Impeller pumps

The Pedrollo PK 200 is a peripheral impeller pump designed for the efficient transfer of clean water without abrasive particles. It’s a reliable and cost-effective solution for domestic applications, particularly suitable for garden and orchard irrigation when used with small autoclave tanks. The PK 200 model can handle flow rates up to 90 l/min (5.4 m³/h) and generate a head up to 100 m. It operates within a liquid temperature range of -10 °C to +60 °C and can sustain a maximum working pressure of 10 bar. Its construction includes a cast iron pump body and brass impeller, with a motor protection rating of IP X4, ensuring durability and consistent performance.

You can review the specifications of Pedrollo PK 200 peripheral impeller pump on this page.

How does Pedrollo PK 200 Peripheral Impeller pumps work?

The Pedrollo PK 200 peripheral impeller pump operates on the principle of a close-coupled centrifugal pump. It features an impeller with numerous radial vanes on its outer edge. As the impeller rotates within the pump casing, water flows between the vanes and the casing. This action transfers a significant amount of energy to the water, resulting in an increase in pressure within the pump.

The high velocity of the water exiting the narrow spaces between the vanes and the casing converts kinetic energy into pressure energy, allowing the pump to move water efficiently and at high pressures, suitable for applications requiring high head. The PK 200 model is particularly designed to handle clean water without abrasive particles, making it ideal for domestic use, such as garden irrigation and operating in combination with small pressure tank.

Exclusive features and benefits of Pedrollo PK 200 Peripheral Impeller pumps

The Pedrollo PK 200 peripheral impeller pump boasts several exclusive features and benefits that make it a standout choice for domestic water transfer applications:

• High Efficiency: The PK 200 is designed to achieve high heads with low motor power, making it energy-efficient.
• Stable Performance: It offers small variations in delivery rates even with changes in pressure demand, ensuring consistent water supply.
• Air Handling: The pump has a high tolerance to entrained air in the liquid being pumped, which helps prevent issues like cavitation.
• Durability: With a cast iron pump body and brass impeller, the PK 200 is built to last and withstand the rigors of domestic use.
• Wide Operating Range: It can handle a flow rate up to 90 l/min (5.4 m³/h) and a head up to 100 m, covering a broad range of domestic applications.
• Temperature Resilience: The pump can operate with liquid temperatures ranging from -10 °C to +60 °C, making it versatile for various climates.
• Pressure Capability: It can sustain a maximum working pressure of 10 bar, which is suitable for high-pressure requirements.
• Protection: The motor has a protection rating of IP X4, safeguarding it against splashing water from any direction.

Pedrollo PK 200 Peripheral Impeller pumps installation and usage

Installing the Pedrollo pump involves several key steps to ensure proper operation and safety. Here’s a general overview of the installation process:

1. Location: Choose a stable, accessible location for the pump that is close to the water source and electrical supply.
2. Foundation: Mount the pump on a solid base to prevent vibrations and ensure stability.
3. Piping: Connect the suction and delivery pipes to the pump. Ensure that the suction pipe is as short and straight as possible to reduce friction losses.
4. Priming: Fill the pump casing with water before starting to avoid dry running, which can damage the pump.
5. Electrical Connection: Connect the pump to the power supply, ensuring that the electrical installation complies with local regulations and the pump’s requirements.
6. Safety Check: Install a safety valve in the discharge line if the pump is used with a pressure tank to prevent overpressure.
7. Testing: Once installed, run the pump to check for leaks and proper operation.

The Pedrollo PK 200 Peripheral Impeller pump is versatile and can be used in a variety of applications, particularly where high pressure and efficient water transfer are required. Here are some of the common applications:

• Domestic Water Supply: It’s suitable for distributing water in combination with small pressure tanks, ensuring a steady water supply for homes.
• Garden and Orchard Irrigation: The pump is ideal for the irrigation of gardens and orchards, providing the necessary pressure for sprinkler systems.
• Water Distribution: It can be used for the automatic distribution of water from surge tanks, which is essential in maintaining consistent water pressure in various systems.
• Boosting Mains Water Pressure: The PK 200 can boost insufficient mains water pressure, making it useful in situations where the existing water supply is inadequate.

Pedrollo PK 200 Peripheral Impeller pumps components

Here are some key components and technical features of the Pedrollo PK 200 pump:

1. Pump Body
2. Motor Bracket
3. Impelle.
4. Motor Shaft
5. Mechanical Seal
6. Flow Rate
7. Head.
8. Manometric Suction Lift
9. Liquid Temperature Range
10. Ambient Temperature
11. Maximum Working Pressure

Important tips for buying Pedrollo PK 200 Peripheral Impeller pumps

When considering the purchase of a Pedrollo PK 200 peripheral impeller pump, here are some important tips to keep in mind:

• Verify Compatibility: Ensure that the pump’s specifications match your water system’s requirements, including flow rate, head, and pressure.
• Check the Materials: The pump components should be suitable for the type of liquid you plan to pump. The PK 200 is designed for clean water without abrasive particles.
• Installation Environment: The pump should be installed in an enclosed environment or sheltered from inclement weather to protect it from damage.
• Electrical Requirements: Confirm the electrical requirements such as voltage and phase, and ensure they are compatible with your power supply.
• After-Sales Support: Consider the level of after-sales support offered, including availability of spare parts and technical assistance for installation.
• Professional Installation: It is recommended to have the pump installed by a qualified plumber to ensure proper setup and operation.
• Warranty and Service: Check the warranty period and understand the service terms to ensure you are covered in case of any issues.
• Budget: You can check Pedrollo PK 200 Peripheral Impeller pumps price on Famcocorp website.

You can buy Pedrollo PK pumps online from Famcocorp website.
