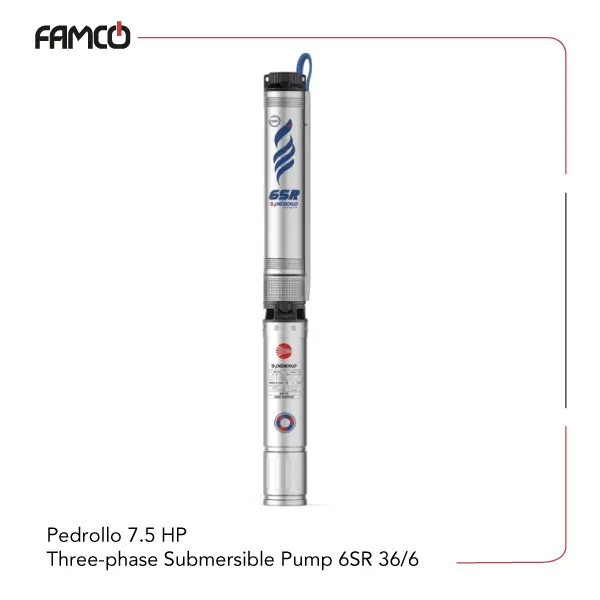

Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 36/6 Specifications
This pump is designed for demanding water applications, capable of handling liquids up to +35 °C. It can operate at a maximum depth of 200 meters when equipped with 6PD motors and 150 meters with 6PSR motors. The pump works in a vertical position and is suitable for well diameters of 6 inches or 153 mm. It features a robust construction with impellers made of Noryl™ and coated with a special elastomer resistant to sand, ensuring durability in sandy environments. The diffuser is also made of Noryl™, complementing the Pedrollo pump‘s impeller’s resilience. The pump shaft is crafted from AISI 304 stainless steel, providing corrosion resistance. It can start up to 20 times per hour at regular intervals, with a minimum cooling flow of 8 cm/s to prevent overheating. The power consumption is 5.5 kW or 7.5 HP, and it delivers a head of 75 meters with a maximum flow rate of 800 liters per minute. The pump operates on a three-phase voltage and is designed for continuous duty (S1), making this Pedrollo submersible pump suitable for long-term operation in water supply, irrigation, or industrial applications. The weight varies depending on the motor type, with the PD model weighing 59.1 kg and the PSR model 74.7 kg, reflecting the different motor configurations and construction features.
| Specification | Value |
| Liquid temperature | up to +35 °C |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth | – 200 m with 6PD motors, – 150 m with 6PSR motors |
| Operation position | Vertical |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power | 5.5 kW / 7.5 HP |
| Head | 75 meters |
| Maximum flow rate | 800 liters per minute |
| Voltage | Three-phase configured |
| Duty cycle | Continuous running duty (S1) |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft material | AISI 304 stainless steel |
| Weight | 59.1 kg (PD), 74.7 kg (PSR) |

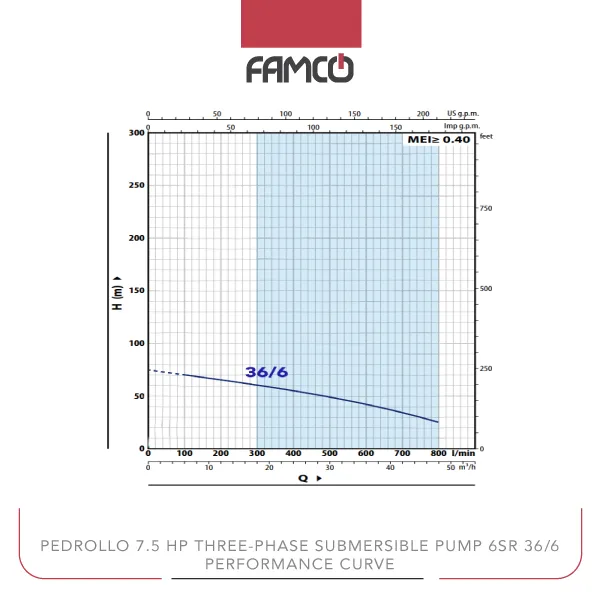

Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 36/6 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| head (m) | 75 | 70 | 65.5 | 60.5 | 55 | 49 | 42 | 34.5 | 254 |
Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 36/6 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water supply
- Municipal water management
Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 36/6 Benefits
- Handles high sand content efficiently
- Suitable for deep water levels up to 200 meters
- Durable construction with corrosion-resistant materials
- Reliable continuous operation for demanding tasks
Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 36/6 Price List
| No. | Name | Price |
| 1 | Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 36/6 Price | Contact us |
