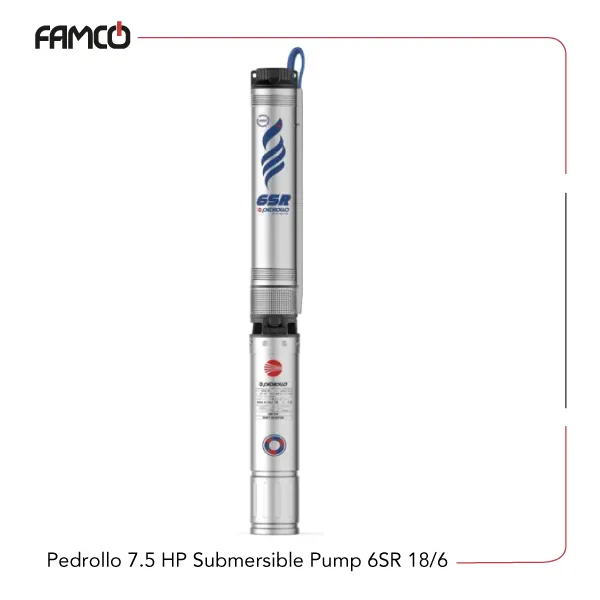

Pedrollo 7.5 HP Submersible Pump 6SR 18/6 Specifications
This pump features a power output of 5.5 kW (7.5 HP) and is designed for vertical operation. It can handle a maximum head of 81 meters and a flow rate of up to 450 liters per minute. The device is suitable for well diameters of 6 inches or 153 mm and operates efficiently in water temperatures up to +35 °C. This Pedrollo pump is equipped with impellers made from Noryl™ and coated with a special elastomer resistant to sand, ensuring durability in sandy environments. The diffusers are also made from Noryl™, and the pump shaft is constructed from AISI 304 stainless steel for corrosion resistance. The pump can operate at depths of up to 200 meters with 6PD motors and 150 meters with 6PSR motors. Capable of starting 20 times per hour at regular intervals, this Pedrollo submersible pump has a minimum cooling flow of 8 cm/s to prevent overheating. The dimensions vary slightly depending on the model, with heights of 628 mm, 525 mm, and 1253 mm, and weights of 53 kg and 68.6 kg. The pump is powered by a three-phase voltage supply and is designed for continuous duty (S1). It can be supplied with either a 6PD rewindable, oil-filled motor or a 6PSR rewindable, water-filled motor, making it versatile for different operational needs.
| Specification | Value |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Head (m) | 81 |
| Max. flow rate (l/min) | 450 |
| Voltage | three-phase configured |
| Operation | in vertical position |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ and coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Liquid temperature | up to +35 °C |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth | 200 m with 6PD motors, 150 m with 6PSR motors |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Motor options | 6PD rewindable and oil filled, 6PSR rewindable and water filled |
Pedrollo 7.5 HP Submersible Pump 6SR 18/6 Dimensions and Weight
| Dimensions (mm) | Value | PD | PSR |
| h1 | 628 | 628 | |
| h2 | 625 | 620 | |
| h3 | 1253 | 1248 | |
| Weight (kg) | 53 | 68.6 | |

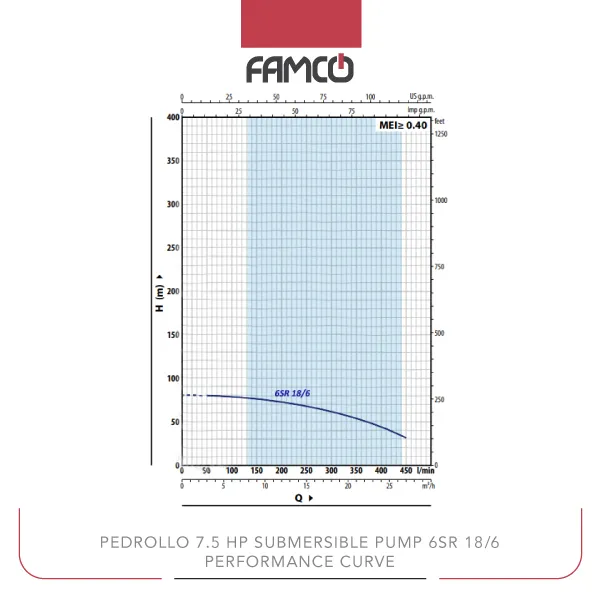

Pedrollo 7.5 HP Submersible Pump 6SR 18/6 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Head (m) | 81 | 80.5 | 79 | 77 | 74 | 69 | 63 | 55 | 45 | 32 |
Pedrollo 7.5 HP Submersible Pump 6SR 18/6 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water supply
- Municipal water projects
Pedrollo 7.5 HP Submersible Pump 6SR 18/6 Benefits
- High efficiency with 81-meter head capacity
- Durable construction with corrosion-resistant materials
- Flexible motor options for different environments
- Suitable for deep water and sandy conditions
Pedrollo 7.5 HP Submersible Pump 6SR 18/6 Price List
| No. | Name | Price |
| 1 | Pedrollo 7.5 HP Submersible Pump 6SR 18/6 Price | Contact us |
