Pedrollo 7.5 HP Submersible Pump 6SR 12/11 Specifications
This submersible pump features a power of 5.5 kW (7.5 HP) and is designed for vertical operation in water wells. It can operate at a maximum depth of 200 meters with 6PD motors and 150 meters with 6PSR motors. The pump has a head of 153 meters and a maximum flow rate of 330 liters per minute, making it suitable for various water extraction needs. It is equipped with durable Noryl™ impellers coated with a special elastomer resistant to sand, ensuring longevity in sandy environments. The diffuser is also made of Noryl™, and the pump shaft is constructed from AISI 304 stainless steel for corrosion resistance. This Pedrollo submersible pump is compatible with well diameters of 6 inches (153 mm) and operates in a continuous duty cycle (S1). The pump can be supplied with different motor options, including 6PD rewindable and oil-filled or 6PSR rewindable and water-filled motors. Its dimensions are approximately 845 mm in height (h1), with other measurements h2 at 625 mm and h3 at 1470 mm. The weight varies between 58.3 kg and 73.9 kg depending on the motor type. The Pedrollo pump can handle a maximum sand content of 100 g/m³ and is suitable for operation in water temperatures up to +35 °C. It starts up to 20 times per hour at regular intervals, requiring a minimum cooling flow of 8 cm/s for optimal performance.
| Specification | Value | |
| Power (kW) | 5.5 | |
| Power (HP) | 7.5 | |
| Head (m) | 153 | |
| Max. flow rate (l/min) | 330 | |
| Voltage | three-phase configured | |
| Operation | in vertical position | |
| Continuous running duty | S1 | |
| Suitable well diameters | 6 inches, 153 mm | |
| Impellers | Noryl™ coated with a special sand-resistant elastomer | |
| Diffusers | Noryl™ | |
| Pump shaft | AISI 304 stainless steel | |
| Maximum sand content | 100 g/m³ | |
| Maximum operating depth | 6PD motor | 200 |
| 6PSR motor | 150 | |
| Liquid temperature | +35 °C | |
| Starts per hour | 20 | |
| Minimum cooling flow | 8 cm/s | |
| Motor options | 6PD rewindable and oil filled, 6PSR rewindable and water filled | |
| Operation mode | vertical | |
| Pump type | submersible | |
Pedrollo 7.5 HP Submersible Pump 6SR 12/11 Dimensions and Weight
| Dimensions (mm) | Value | PD | PSR |
| h1 | 845 | 845 | |
| h2 | 625 | 620 | |
| h3 | 1470 | 1465 | |
| Weight (kg) | 58.3 | 73.9 | |

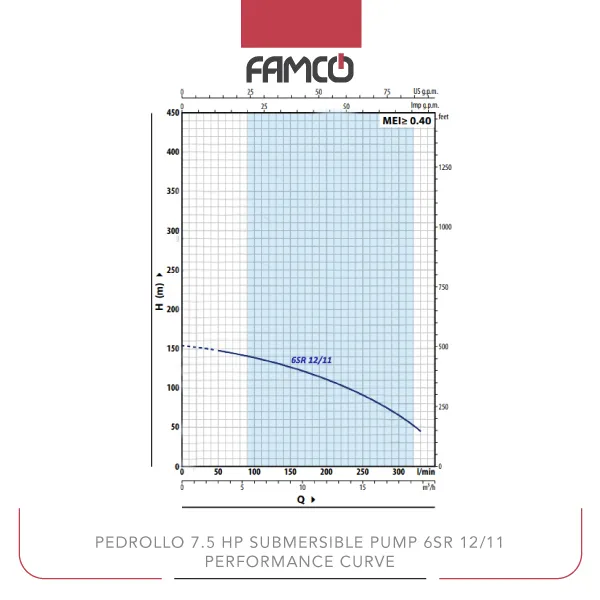

Pedrollo 7.5 HP Submersible Pump 6SR 12/11 Technical Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 19.8 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 330 |
| Head (m) | 153 | 146 | 138 | 125 | 110 | 91 | 65 | 44 |
Pedrollo 7.5 HP Submersible Pump 6SR 12/11 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Industrial water supply
- Municipal water treatment
Pedrollo 7.5 HP Submersible Pump 6SR 12/11 Benefits
- High efficiency with a strong head and flow rate
- Durable construction resistant to sand and corrosion
- Flexible motor options for different needs
- Suitable for deep water and continuous operation
