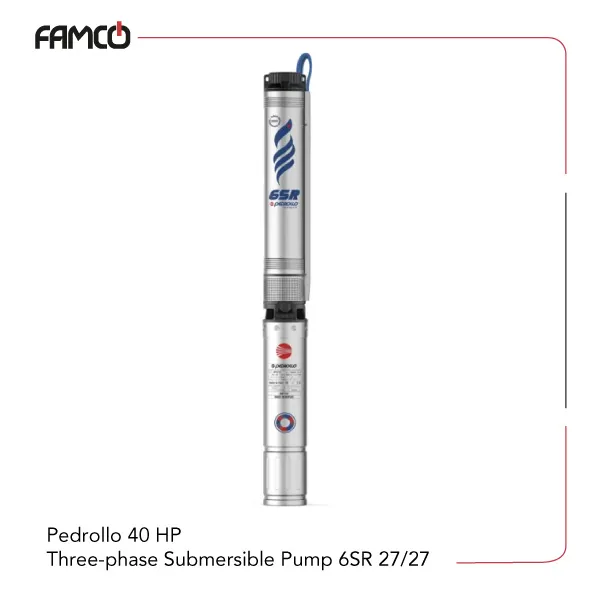

Pedrollo 40 HP Three-phase Submersible Pump 6SR 27/27 Specifications
This three-phase configured Pedrollo pump is designed for demanding water extraction tasks. It can operate with two types of motors: 6PD, which are rewindable and oil-filled, and 6PSR, which are rewindable and water-filled. The pump handles liquid temperatures up to +35 °C and can reach a maximum head of 367 meters. It is capable of pumping water at a maximum flow rate of 600 liters per minute, making it suitable for high-volume applications. The device is built to operate in vertical positions and can withstand sand content up to 100 grams per cubic meter, ensuring durability in sandy environments. It can operate at depths of up to 200 meters below water level with the 6PD motor and 150 meters with the 6PSR motor. The pump is designed for continuous operation, with up to 20 starts per hour at regular intervals, and requires a minimum cooling flow of 8 centimeters per second to prevent overheating. This Pedrollo submersible pump‘s components include impellers made of Noryl™ coated with a special elastomer resistant to sand abrasion, and diffusers made of Noryl™. The pump shaft is constructed from AISI 304 stainless steel, providing corrosion resistance and strength. It is powered by a three-phase voltage supply and is suitable for wells with a diameter of 6 inches or 153 millimeters. The weight of the 6SR series Pedrollo pump depends on the motor type, with the PD model weighing 130.1 kg and the PSR model weighing 165.9 kg, reflecting its sturdy construction and high performance capabilities.
| Specification | Value |
| Liquid temperature | +35 °C |
| Head (m) | 367 |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth below water level | 200 m with 6PD motors, 150 m with 6PSR motors |
| Operation | Vertical position |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 30 |
| Power (HP) | 40 |
| Max. flow rate (l/min) | 600 |
| Voltage | Three-phase configured |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight (kg) | 130.1 (PD), 165.9 (PSR) |

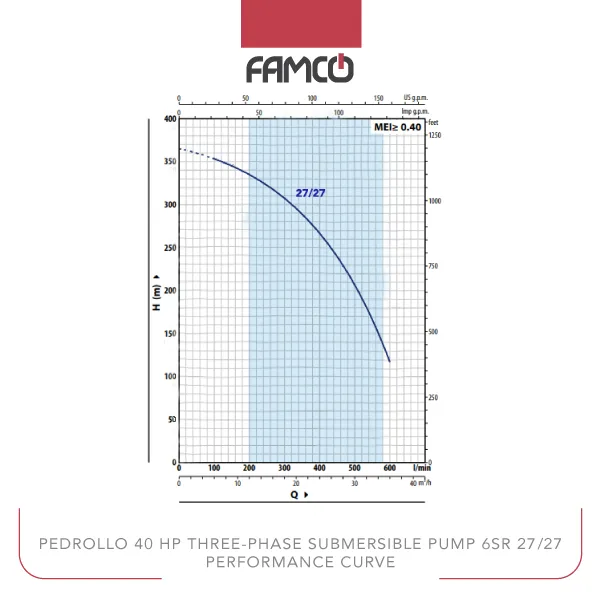

Pedrollo 40 HP Three-phase Submersible Pump 6SR 27/27 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 |
| head (m) | 367 | 356 | 335 | 308 | 270 | 205 | 119 |
Pedrollo 40 HP Three-phase Submersible Pump 6SR 27/27 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Municipal water supply
- Industrial water pumping
Pedrollo 40 HP Three-phase Submersible Pump 6SR 27/27 Benefits
- High efficiency with a 40 HP motor
- Durable components resistant to sand and corrosion
- Suitable for deep water applications up to 200 meters
- Reliable continuous operation for demanding tasks
Pedrollo 40 HP Three-phase Submersible Pump 6SR 27/27 Price List
| No. | Name | Price |
| 1 | Pedrollo 40 HP Three-phase Submersible Pump 6SR 27/27 Price | Contact us |
