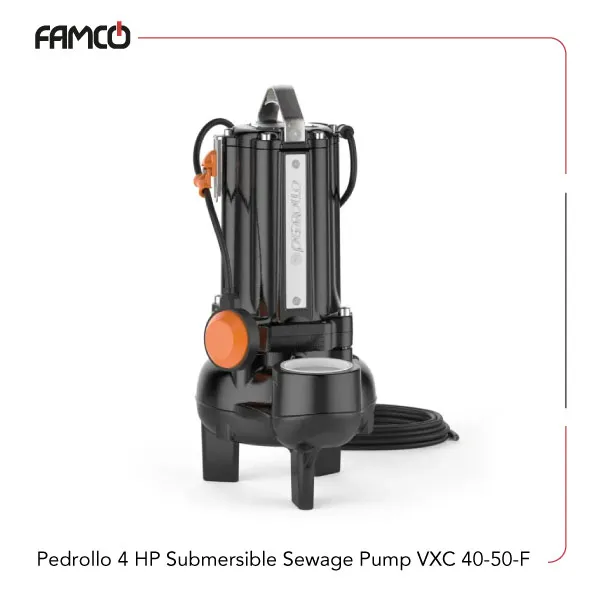

Pedrollo 4 HP Submersible Sewage Pump VXC 40/50-F Specifications
Pedrollo 4 HP submersible sewage pump VXC 40/50-F features a powerful 4 HP (3 kW) motor, designed for high efficiency and durability. It can handle a maximum flow rate of 63 cubic meters per hour, which translates to 1050 liters per minute, making it suitable for demanding applications. The maximum head height is 20 meters, allowing it to lift liquids over significant distances. It operates effectively in water temperatures up to +40°C, ensuring versatility in various environments. This Pedrollo sewage pump is capable of processing suspended solids up to 50 mm in diameter for the VXC /50-F model and up to 65 mm for the VXC /65-F, making it ideal for handling dirty or debris-laden liquids. It can operate at depths of up to 10 meters below water level when connected with an appropriate power cable. The motor is a 2-pole type, providing reliable performance, and the device boasts an ingress protection rating of IP 68, ensuring it is well-protected against dust and water ingress, suitable for outdoor or harsh conditions.
| Specification | Value |
| Power (HP) | 4 |
| Power (kW) | 3 |
| Maximum Flow rate (m3/h) | 63 |
| Maximum Flow rate (l/min) | 1050 |
| Maximum head (m) | 20 |
| Liquid temperature | up to +40°C |
| Capable of processing suspended solids | up to Ø 50 mm for VXC /50-F, up to Ø 65 mm for VXC /65-F |
| Maximum operating depth below water level | up to 10 m (with an appropriately sized power cable) |
| Motor | 2 poles |
| Ingress protection rating | IP 68 |

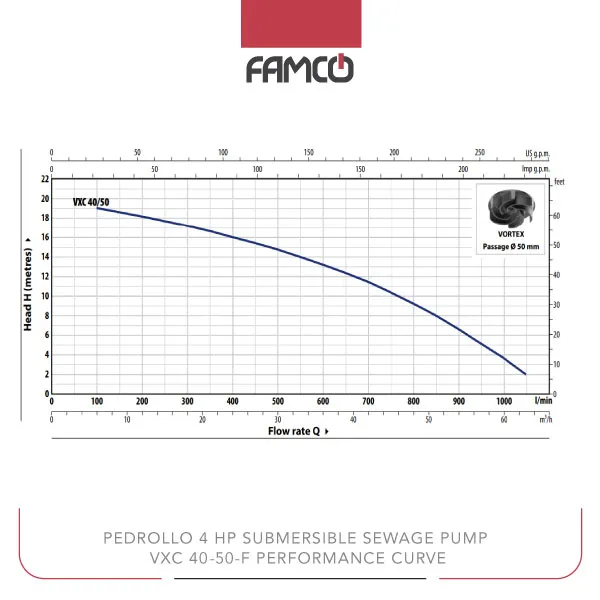

Pedrollo 4 HP Submersible Sewage Pump VXC 40/50-F Performance Data
| Q (m3/h) | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 51 | 60 | 63 |
| Q (l/min) | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 850 | 1000 | 1050 |
| Head (m) | 20 | 19 | 18.1 | 17.1 | 16 | 14.7 | 13.2 | 11.4 | 8 | 3.6 | 2 |
Pedrollo 4 HP Submersible Sewage Pump VXC 40/50-F Applications
- Industrial wastewater management
- Sewage and drainage systems
- Flood control and water transfer
- Construction site dewatering
Pedrollo 4 HP Submersible Sewage Pump VXC 40/50-F Benefits
- High flow capacity for demanding tasks
- Ability to process large solids
- Durable and weather-resistant design
- Suitable for deep water applications
Pedrollo 4 HP Submersible Sewage Pump VXC 40/50-F Price List
| No. | Name | Price |
| 1 | Pedrollo 4 HP Submersible Sewage Pump VXC 40/50-F Price | Contact us |
