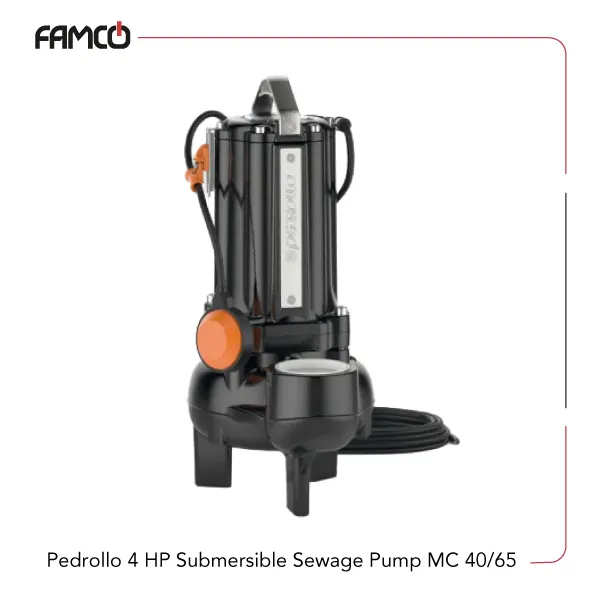

Pedrollo 4 HP Submersible Sewage Pump MC 40/65 Specifications
Sewage applications that involve high flow demands often rely on pumps capable of dealing with unpredictable debris and heavy loads, and the Pedrollo MC 40/65 fits that role extremely well. Its cast iron construction gives it the stability needed for long working hours, while the two-channel stainless steel impeller helps maintain a steady flow even under pressure. Within many industrial setups, Pedrollo submersible pumps are chosen because they manage to deliver strong output without constant intervention, which is critical when systems need to stay running for extended periods. This model also benefits from a double sealing arrangement designed to protect the motor and pump chamber from contamination, something especially important when dealing with the harsher realities of sewage handling. For sites where larger volumes must be moved quickly, Pedrollo sewage pumps like the MC 40/65 offer a reliable option that supports efficient operation in demanding three-phase environments.
| Specification | Value |
| Pump body | Cast iron |
| Impeller | TWO-CHANNEL type in micro-cast AISI 304 stainless steel |
| Double mechanical seal on pump side | Silicon carbide/Silicon carbide/NBR |
| Double mechanical seal on motor side | Ceramic / Graphite / NBR |
| Speed (rpm) | ≈ 2900 |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Head (m) | 17 |
| Flow rate (l/min) | 1600 |
| Three-phase voltage (V) | 400 |
| Three-phase weight (kg) | 49 |

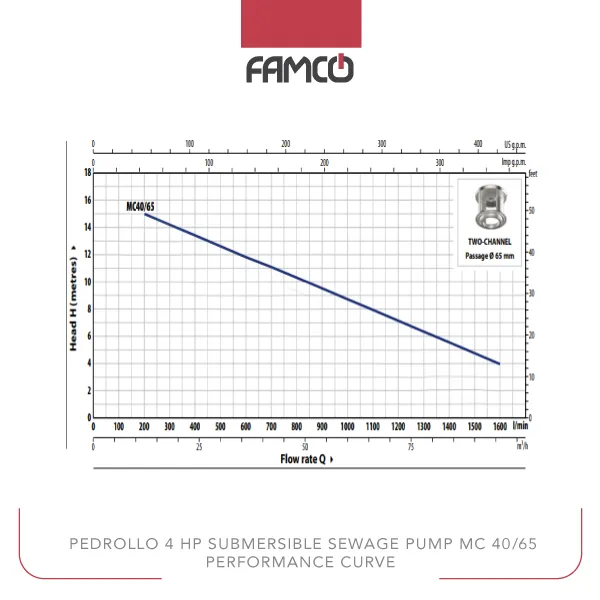

Pedrollo 4 HP Submersible Sewage Pump MC 40/65 Performance Data
| m³/h | 0 | 12 | 24 | 36 | 48 | 54 | 60 | 66 | 72 | 90 | 96 |
| l/min | 0 | 200 | 400 | 600 | 800 | 900 | 1000 | 1100 | 1200 | 1500 | 1600 |
| H metres | 17 | 15 | 13.5 | 12 | 10.5 | 9.5 | 8.5 | 8 | 7 | 4.8 | 4 |

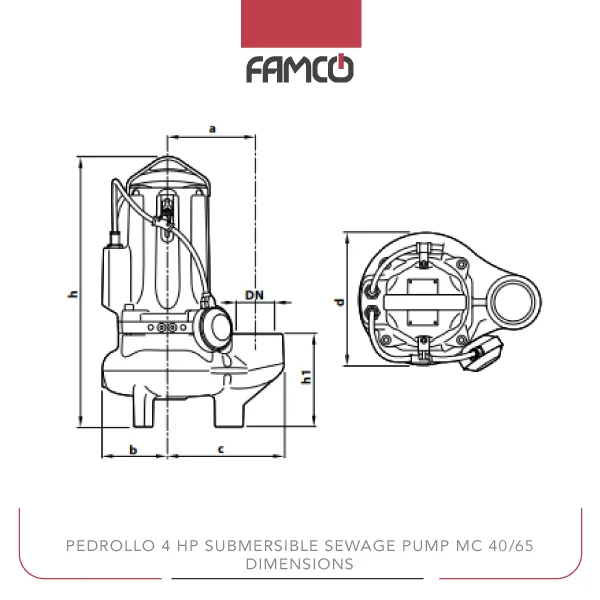

Pedrollo 4 HP Submersible Sewage Pump MC 40/65 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | |||||
| a | b | c | h | h1 | d | 3~ |
| 180 | 120 | 240 | 547 | 201 | 246 | 49.8 |
Pedrollo 4 HP Submersible Sewage Pump MC 40/65 Applications
- Water transfer in industrial plants
- Irrigation systems for agriculture
- Cooling water circulation
- Chemical and fluid handling
Pedrollo 4 HP Submersible Sewage Pump MC 40/65 Benefits
- High corrosion resistance with stainless steel impeller
- Reliable double mechanical seals for leak prevention
- Powerful flow rate suitable for large-scale tasks
- Durable cast iron construction for long-term use
Pedrollo 4 HP Submersible Sewage Pump MC 40/65 Price List
| No. | Name | Price |
| 1 | Pedrollo 4 HP Submersible Sewage Pump MC 40/65 Price | Contact us |
There are no reviews yet.
