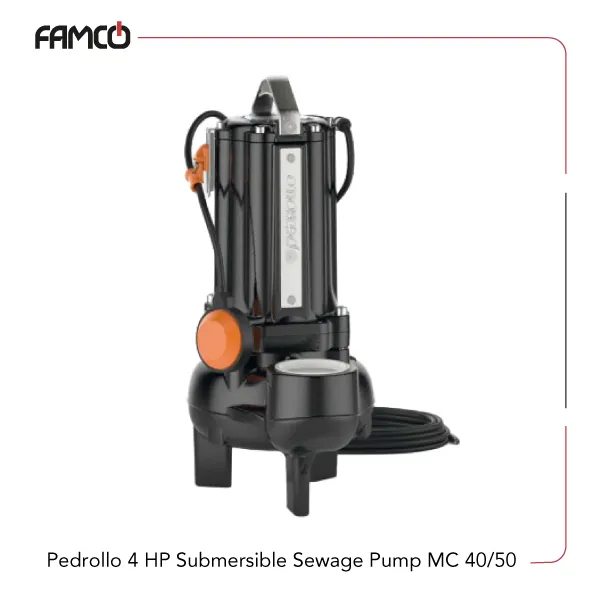

Pedrollo 4 HP Submersible Sewage Pump MC 40/50 Specifications
Sewage systems that face high volumes or tough solids need equipment that can stay steady under pressure, and this Pedrollo MC 40/50 is built exactly for that kind of workload. Its cast iron structure gives the pump the stability needed for continuous operation, while the two-channel AISI 304 stainless steel impeller helps maintain smooth flow even when dealing with challenging wastewater. Many professionals prefer units like this because Pedrollo submersible pumps tend to balance power with dependable mechanical sealing, reducing the chances of unnecessary downtime. Within industrial settings and larger facilities, it’s common to see Pedrollo sewage pumps used for tasks that require consistent throughput, especially when a strong three-phase motor is available. The double seal configuration adds an extra layer of protection for the internal components, which is essential in environments where abrasives or variable pH levels might otherwise shorten a pump’s lifespan. This model fits seamlessly into systems that demand high flow, strong lift capacity, and minimal fuss over maintenance.
| Specification | Value |
| Pump body | Cast iron |
| Impeller | TWO-CHANNEL type in micro-cast AISI 304 stainless steel |
| Double mechanical seal on pump side | Silicon carbide/Silicon carbide/NBR |
| Double mechanical seal on motor side | Ceramic / Graphite / NBR |
| Speed (rpm) | ≈ 2900 |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Head (m) | 25 |
| Flow rate (l/min) | 1100 |
| Three-phase voltage (V) | 400 |
| Three-phase weight (kg) | 47.8 |

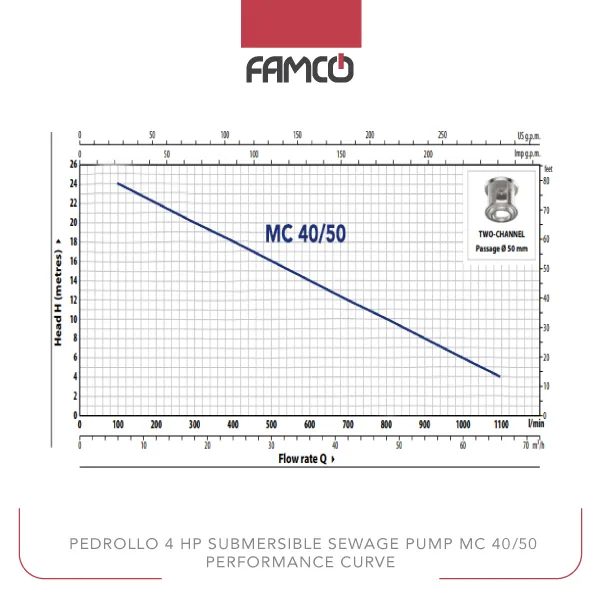

Pedrollo 4 HP Submersible Sewage Pump MC 40/50 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 |
| H metres | 25 | 24 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | 8 | 6 | 4 |

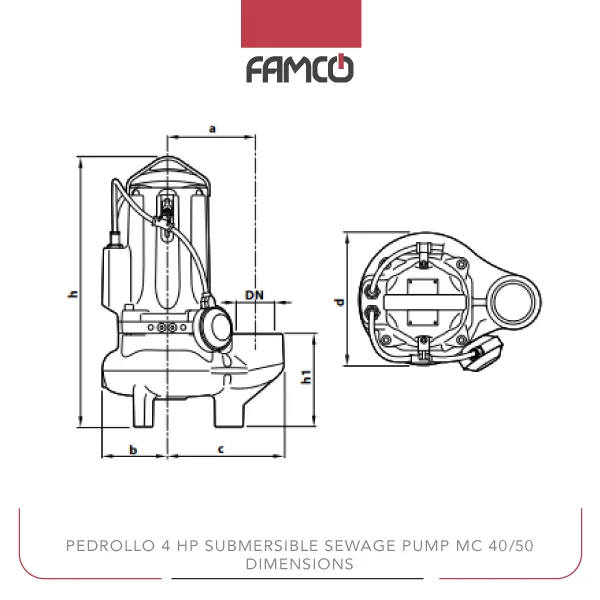

Pedrollo 4 HP Submersible Sewage Pump MC 40/50 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | |||||
| a | b | c | h | h1 | d | 3~ |
| 162 | 119 | 212 | 513 | 167 | 242 | 47.8 |
Pedrollo 4 HP Submersible Sewage Pump MC 40/50 Applications
- Water supply systems
- Irrigation and agriculture
- Industrial fluid transfer
- Building water circulation
Pedrollo 4 HP Submersible Sewage Pump MC 40/50 Benefits
- Durable cast iron construction for long life
- Corrosion-resistant stainless steel impeller
- Reliable double mechanical seals for safety
- High flow rate and strong head capacity
Pedrollo 4 HP Submersible Sewage Pump MC 40/50 Price List
| No. | Name | Price |
| 1 | Pedrollo 4 HP Submersible Sewage Pump MC 40/50 Price | Contact us |
