Pedrollo 30 HP Three-phase Submersible Pump 6SR 36/22 Specifications
This Pedrollo submersible pump is manufactured and built for efficient water extraction and transfer in various applications. It features a powerful 22 kW (30 HP) motor, capable of delivering a maximum head of 274 meters and a flow rate of up to 800 liters per minute. The pump can operate at liquid temperatures up to +35°C and handles sand content up to 100 grams per cubic meter, making it suitable for challenging water sources. It is compatible with well diameters of 6 inches (153 mm) and is built to operate continuously in a vertical position. The pump is equipped with durable Noryl™ impellers, coated with a special elastomer resistant to sand abrasion, and Noryl™ diffusers. The shaft is made from AISI 304 stainless steel, ensuring corrosion resistance and longevity. It can operate at depths of up to 200 meters with 6PD motors or 150 meters with 6PSR motors. The Pedrollo pump offered here starts approximately 20 times per hour at regular intervals, requiring a minimum cooling flow of 8 cm/s. It is suitable for applications requiring reliable, continuous operation, such as water supply systems, irrigation, and industrial processes. The pump’s design emphasizes durability, efficiency, and adaptability to demanding environments, with options for motor configurations including oil-filled or water-filled rewindable motors.
| Specification | Value |
| Liquid temperature | +35 °C |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth | 6PD motors: 200 m, 6PSR motors: 150 m |
| Operation | Vertical position |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power | kW: 22, HP: 30 |
| Head | 274 m |
| Max. flow rate | 800 l/min |
| Voltage | Three-phase configured |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight | PD: 123.5 kg, PSR: 143.9 kg |
| Extra | Motor options include 6PD rewindable and oil filled or 6PSR rewindable and water filled |

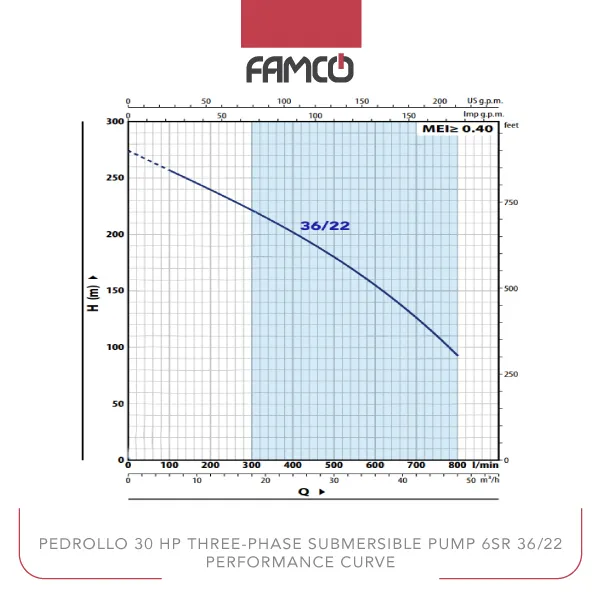

Pedrollo 30 HP Three-phase Submersible Pump 6SR 36/22 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| head (m) | 274 | 257 | 239 | 221 | 202 | 180 | 155 | 126 | 92 |
Pedrollo 30 HP Three-phase Submersible Pump 6SR 36/22 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Municipal water supply
Pedrollo 30 HP Three-phase Submersible Pump 6SR 36/22 Benefits
- High efficiency with 274-meter head capacity
- Durable construction with corrosion-resistant materials
- Handles sand content up to 100 g/m³
- Suitable for continuous operation in demanding environments
Pedrollo 30 HP Three-phase Submersible Pump 6SR 36/22 Price List
| No. | Name | Price |
| 1 | Pedrollo 30 HP Three-phase Submersible Pump 6SR 36/22 Price | Contact us |
