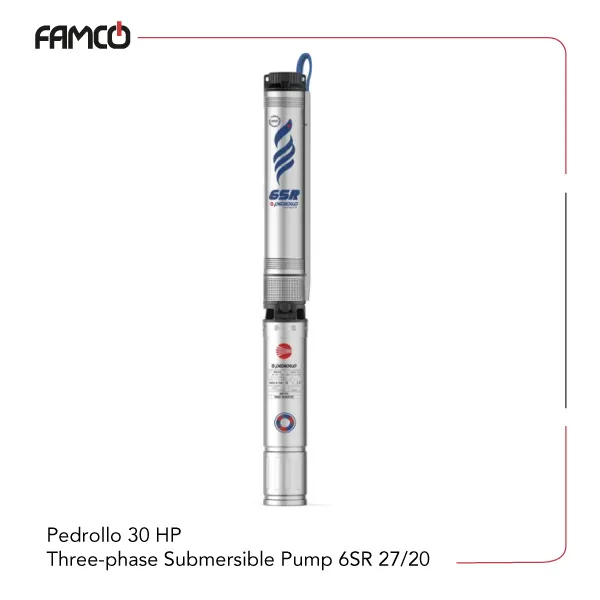

Pedrollo 30 HP Three-phase Submersible Pump 6SR 27/20 Specifications
This pump is designed for deep water applications, capable of operating at a maximum head of 272 meters and handling flow rates up to 600 liters per minute. It can work in water temperatures up to 35°C and is suitable for well diameters of 6 inches or 153 mm. The 27/20 Pedrollo submersible pump features impellers made from Noryl™ and coated with a special elastomer resistant to sand, ensuring durability in sandy environments. The diffusers are also made from Noryl™. The 6SR Pedrollo pump series has its shaft constructed from AISI 304 stainless steel for corrosion resistance. It can operate at depths of up to 200 meters with 6PD motors and 150 meters with 6PSR motors, depending on the motor type supplied. The pump is designed for vertical operation and can start up to 20 times per hour at regular intervals. It requires a minimum cooling flow of 8 cm/s to maintain optimal performance. The pump is powered by a three-phase system with a power of 22 kW or 30 HP, suitable for continuous duty (S1). It weighs approximately 106.9 kg with the PD motor and 127.3 kg with the PSR motor, making it robust and suitable for demanding water extraction tasks.
| Specification | Value |
| Liquid temperature | +35 °C |
| Head (m) | 272 |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth below water level | – 200 m with 6PD motors, – 150 m with 6PSR motors |
| Operation | in vertical position |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 22 |
| Power (HP) | 30 |
| Max. flow rate (l/min) | 600 |
| Voltage | three-phase configured |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ and coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight (kg) | 106.9 (PD), 127.3 (PSR) |

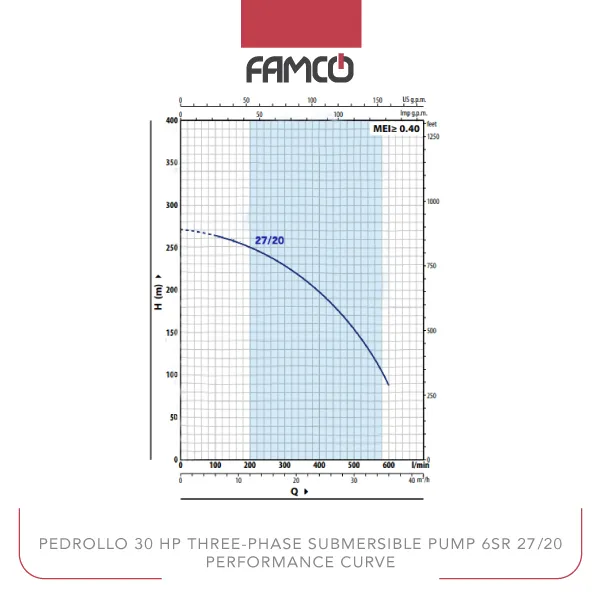

Pedrollo 30 HP Three-phase Submersible Pump 6SR 27/20 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 |
| head (m) | 272 | 264 | 248 | 228 | 200 | 148 | 88 |
Pedrollo 30 HP Three-phase Submersible Pump 6SR 27/20 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Municipal water supply projects
- Industrial water transfer
Pedrollo 30 HP Three-phase Submersible Pump 6SR 27/20 Benefits
- High head and flow rate for efficient water transfer
- Durable construction resistant to sand and corrosion
- Flexible motor options for different depths and conditions
- Suitable for continuous operation in demanding environments
Pedrollo 30 HP Three-phase Submersible Pump 6SR 27/20 Price List
| No. | Name | Price |
| 1 | Pedrollo 30 HP Three-phase Submersible Pump 6SR 27/20 Price | Contact us |
