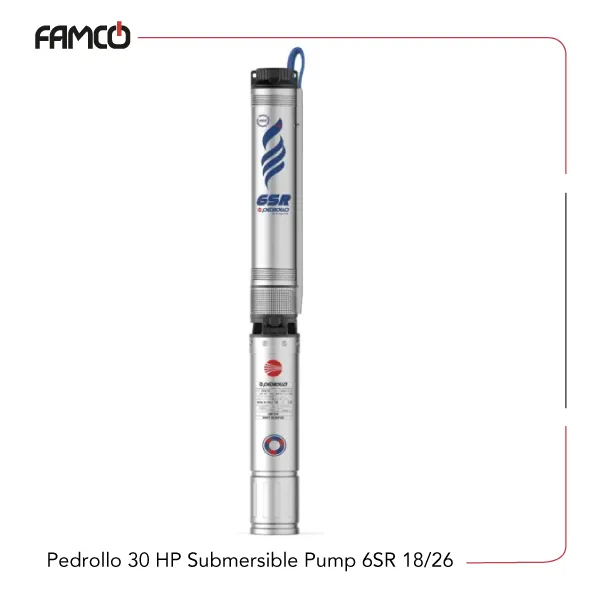

Pedrollo 30 HP Submersible Pump 6SR 18/26

Pedrollo 30 HP Submersible Pump 6SR 18/26 Specifications

This robust vertical pump is designed for efficient water extraction and transfer in various applications. This Pedrollo submersible pump operates at a maximum liquid temperature of +35°C, making it suitable for different water types. The pump can handle a maximum sand content of 100 grams per cubic meter, ensuring durability even in sandy environments. It is capable of operating at depths up to 200 meters with 6PD motors and 150 meters with 6PSR motors, making it ideal for deep well applications. The 6SR 18/26 Pedrollo pump runs continuously in an S1 duty cycle, with a maximum of 20 starts per hour at regular intervals, ensuring reliable operation. It requires a minimum cooling flow of 8 centimeters per second to maintain optimal performance. The pump features a powerful 22 kW (30 HP) motor, providing Pedrollo pump users with a head of 352 meters and a maximum flow rate of 450 liters per minute. It is designed to operate with a three-phase power supply and is suitable for well diameters of 6 inches or 153 millimeters. The impellers inside this Pedrollo submersible pump are made from Noryl™, coated with a special elastomer resistant to sand, which prolongs the lifespan of the pump. The diffusers are also made from Noryl™, contributing to the pump’s durability. The shaft is constructed from AISI 304 stainless steel, ensuring corrosion resistance. The dimensions vary slightly depending on the motor type, with the PD model measuring 1541 mm in height and the PSR model 1451 mm. The weight of the pump is 109.1 kg for the PD model and 130.5 kg for the PSR model, making it a sturdy and reliable choice for demanding water pumping tasks.



Specification	Value
Liquid temperature	+35 °C
Head (m)	352
Maximum sand content (g/m³)	100
Maximum operating depth below water level	6PD motors	200
	6PSR motors	150
Operation	Vertical position
Starts per hour	20
Minimum cooling flow (cm/s)	8
Power (kW)	22
Power (HP)	30
Max. flow rate (l/min)	450
Voltage	Three-phase configured
Continuous running duty	S1
Suitable well diameters	6 inches, 153 mm
Impellers	Noryl™ coated with special sand-resistant elastomer
Diffusers	Noryl™
Pump shaft	AISI 304 stainless steel



Pedrollo 30 HP Submersible Pump 6SR 18/26 Dimensions and Weight

Dimensions (mm)	Value	PD	PSR
	h1	1541	1541
	h2	953	975
	h3	2494	2516
Weight (kg)		109.1	130.5

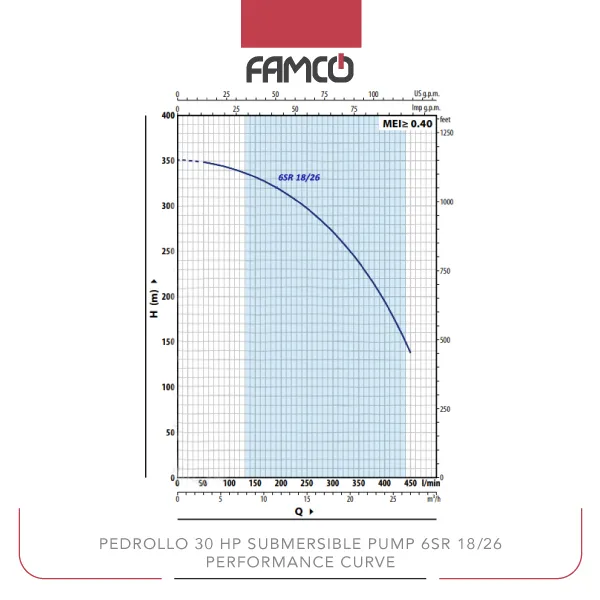

Pedrollo 30 HP Submersible Pump 6SR 18/26 Performance Data

m³/h	0	3	6	9	12	15	18	21	24	27
l/min	0	50	100	150	200	250	300	350	400	450
Head (m)	352	350	344	334	320	298	272	239	195	139





Pedrollo 30 HP Submersible Pump 6SR 18/26 Applications

• Deep well water extraction
• Irrigation systems
• Industrial water transfer
• Municipal water supply



Pedrollo 30 HP Submersible Pump 6SR 18/26 Benefits

• High durability with sand-resistant impellers
• Capable of operating at great depths
• Reliable continuous operation
• Suitable for sandy and challenging environments



Pedrollo 30 HP Submersible Pump 6SR 18/26 Price List

No.	Name	Price
1	Pedrollo 30 HP Submersible Pump 6SR 18/26 Price	Contact us
