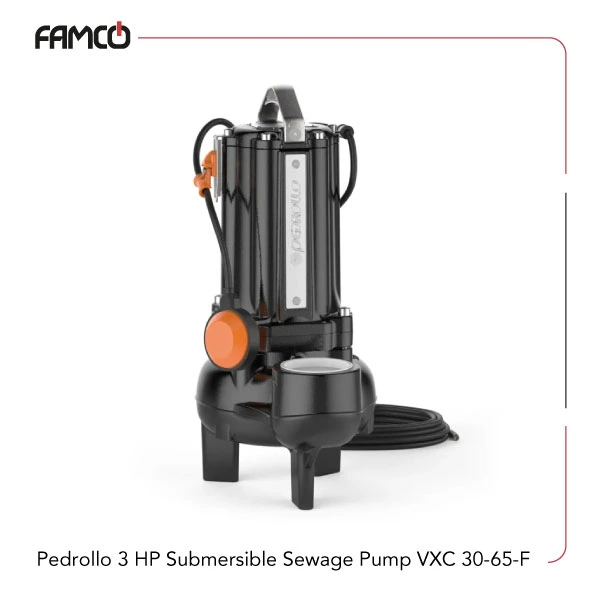

Pedrollo 3 HP Submersible Sewage Pump VXC 30/65-F Specifications
Pedrollo 3 HP submersible sewage pump VXC 30/65-F features a powerful 2.2 HP (3 kW) motor, designed for high efficiency and durability. It can handle a maximum flow rate of 72 cubic meters per hour, which translates to 1200 liters per minute, making it suitable for various demanding applications. The maximum head height is 12 meters, allowing it to lift water effectively over significant distances. It operates efficiently in liquid temperatures up to +40°C, ensuring versatility in different environments. This Pedrollo sewage pump is capable of processing suspended solids up to 50 mm in diameter for the VXC /50-F model and up to 65 mm for the VXC /65-F model. It can operate at depths of up to 10 meters below water level when connected with an appropriately sized power cable. The motor is a 2-pole type, providing reliable performance, and the pump has an ingress protection rating of IP 68, ensuring it is well-protected against dust and water ingress, suitable for outdoor and harsh conditions.
| Specification | Value |
| Power (HP) | 2.2 |
| Power (kW) | 3 |
| Maximum Flow rate (m3/h) | 72 |
| Maximum Flow rate (l/min) | 1200 |
| Maximum head (m) | 12 |
| Liquid temperature | up to +40° C |
| Capable of processing suspended solids | up to Ø 50 mm for VXC /50-F, up to Ø 65 mm for VXC /65-F |
| Maximum operating depth below water level | up to 10 m (with an appropriately sized power cable) |
| Motor | 2 poles |
| Ingress protection rating | IP 68 |

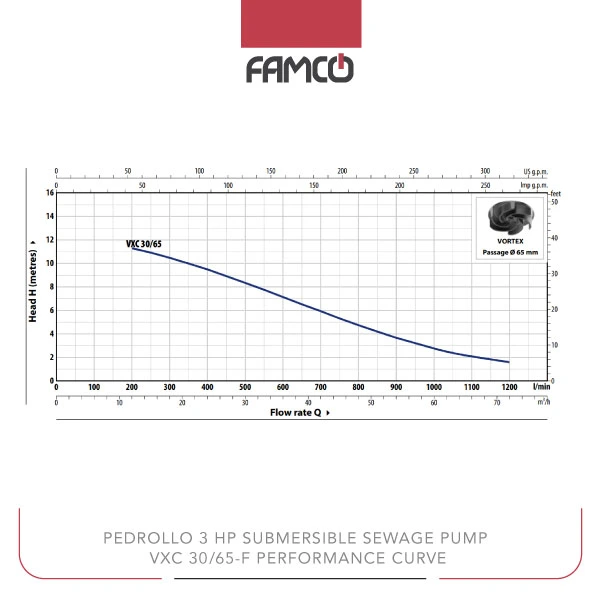

Pedrollo 3 HP Submersible Sewage Pump VXC 30/65-F Performance Curve
| Q (m3/h) | 0 | 12 | 18 | 24 | 30 | 36 | 42 | 51 | 60 | 63 | 72 |
| Q (l/min) | 0 | 200 | 300 | 400 | 500 | 600 | 700 | 850 | 1000 | 1050 | 1200 |
| Head (m) | 12 | 11 | 10.3 | 9.3 | 8.2 | 7 | 5.8 | 4 | 2.6 | 2.3 | 1.5 |
Pedrollo 3 HP Submersible Sewage Pump VXC 30/65-F Applications
- Drainage of construction sites
- Sewage and wastewater transfer
- Flood control and water removal
- Industrial water management
Pedrollo 3 HP Submersible Sewage Pump VXC 30/65-F Benefits
- High flow capacity for quick water transfer
- Handles solids up to 65 mm, reducing clogging issues
- Durable IP 68 protection for outdoor use
- Operates efficiently at depths up to 10 meters
Pedrollo 3 HP Submersible Sewage Pump VXC 30/65-F Price List
| No. | Name | Price |
| 1 | Pedrollo 3 HP Submersible Sewage Pump VXC 30/65-F Price | Contact us |
