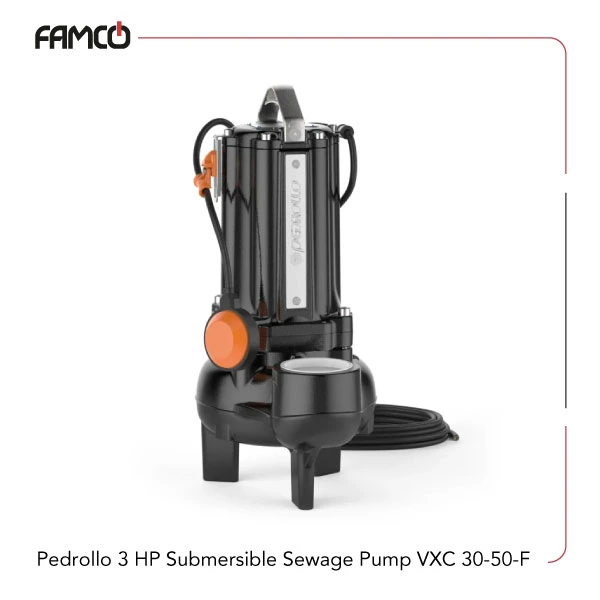

Pedrollo 3 HP Submersible Sewage Pump VXC 30/50-F Specifications
Pedrollo 3 HP submersible sewage pump VXC 30/50-F features a powerful 3 HP (2.2 kW) motor designed for efficient water pumping. It can handle a maximum flow rate of 51 cubic meters per hour, which translates to 850 liters per minute, making it suitable for various water transfer tasks. This Pedrollo sewage pump can generate a maximum head of 16.5 meters, allowing it to lift water effectively over considerable heights. It operates reliably in water temperatures up to +40°C, ensuring versatility in different environments. The device is capable of processing suspended solids up to 50 mm in diameter for the VXC /50-F model and up to 65 mm for the VXC /65-F model, making it suitable for handling dirty or debris-laden water. It can operate at depths of up to 10 meters below water level, provided an appropriate power cable is used. The motor is a 2-pole type, which offers a good balance of power and efficiency. Its ingress protection rating of IP 68 ensures it is dust-tight and protected against continuous immersion in water, making it highly durable and suitable for demanding applications.
| Specification | Value |
| Power (HP) | 3 |
| Power (kW) | 2.2 |
| Maximum Flow rate (m3/h) | 51 |
| Maximum Flow rate (l/min) | 850 |
| Maximum head (m) | 16.5 |
| Liquid temperature | up to +40°C |
| Capable of processing suspended solids | up to Ø 50 mm for VXC /50-F, up to Ø 65 mm for VXC /65-F |
| Maximum operating depth below water level | up to 10 m (with an appropriately sized power cable) |
| Motor | 2 poles |
| Ingress protection rating | IP 68 |

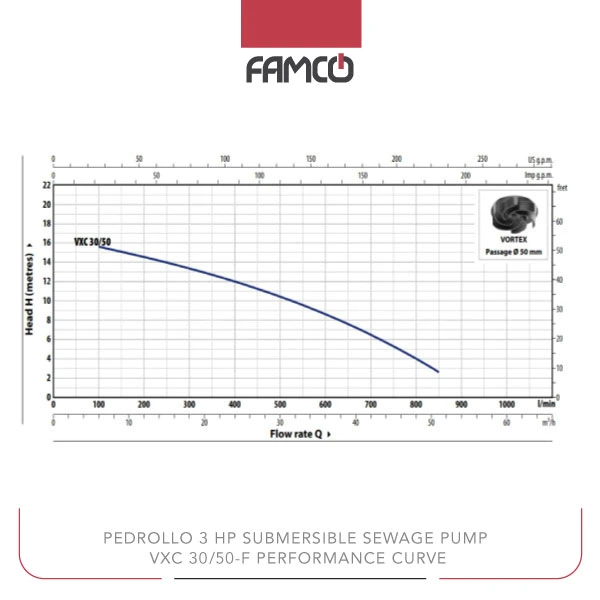

Pedrollo 3 HP Submersible Sewage Pump VXC 30/50-F Performance Data
| Q (m3/h) | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 51 |
| Q (l/min) | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 850 |
| Head (m) | 16.5 | 15.5 | 14.4 | 13.2 | 11.9 | 10.3 | 8.5 | 6.4 | 2.5 |
Pedrollo 3 HP Submersible Sewage Pump VXC 30/50-F Applications
- Drainage of flooded areas
- Emptying water tanks and reservoirs
- Water transfer in construction sites
- Handling dirty water with suspended solids
Pedrollo 3 HP Submersible Sewage Pump VXC 30/50-F Benefits
- High flow rate for quick water transfer
- Capable of processing solids up to 65 mm
- Durable with IP 68 protection rating
- Operates efficiently at depths up to 10 meters
Pedrollo 3 HP Submersible Sewage Pump VXC 30/50-F Price List
| No. | Name | Price |
| 1 | Pedrollo 3 HP Submersible Sewage Pump VXC 30/50-F Price | Contact us |
