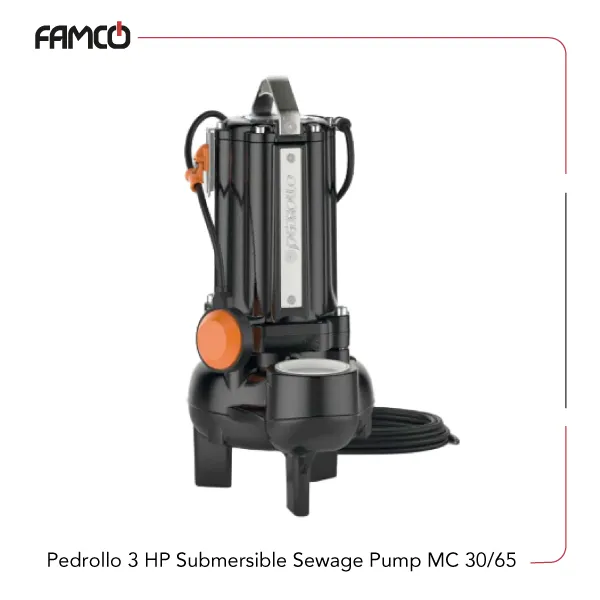

Pedrollo 3 HP Submersible Sewage Pump MC 30/65 Specifications
This pump features a durable cast iron body and a high-quality two-channel impeller made from micro-cast AISI 304 stainless steel, ensuring this Pedrollo submersible pump has satisfying corrosion resistance and longevity. It is equipped with double mechanical seals on both the pump and motor sides, utilizing silicon carbide, ceramic, graphite, and NBR materials for reliable sealing and minimal leakage. Operating at approximately 2900 RPM, it delivers 2.2 kW (3 HP) of power, with a maximum head of 13 meters and a flow rate of 1600 liters per minute. The device supports both single-phase and three-phase power supplies, compatible with voltages of 230V and 400V. Its weight varies slightly depending on the configuration, weighing 50 kg or 46 kg. This Pedrollo sewage pump has you covered in commercial and domestic sewage management tasks.
| Specification | Value |
| Pump body | Cast iron |
| Impeller | TWO-CHANNEL type in micro-cast AISI 304 stainless steel |
| Double mechanical seal on pump side | Silicon carbide/Silicon carbide/NBR |
| Double mechanical seal on motor side | Ceramic / Graphite / NBR |
| Speed (rpm) | ≈ 2900 |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Head (m) | 13 |
| Flow rate (l/min) | 1600 |
| Voltage (V) | 230, 400 |
| Weight (kg) | 50, 46 |

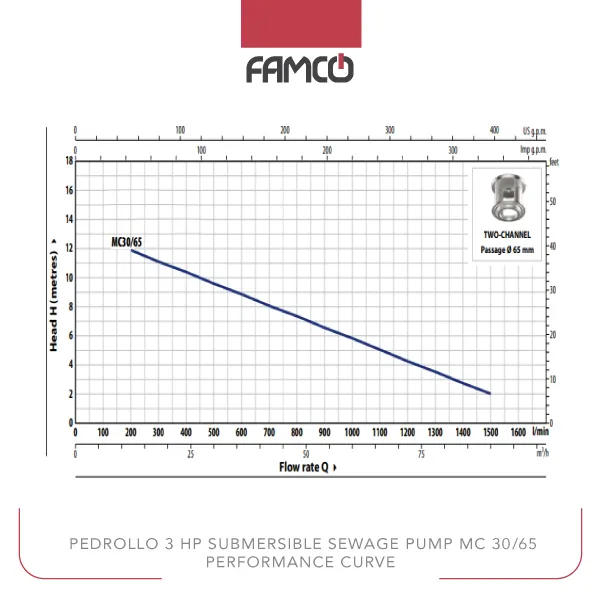

Pedrollo 3 HP Submersible Sewage Pump MC 30/65 Performance Data
| m³/h | 0 | 12 | 24 | 36 | 48 | 54 | 60 | 66 | 72 | 90 |
| l/min | 0 | 200 | 400 | 600 | 800 | 900 | 1000 | 1100 | 1200 | 1500 |
| H metres | 13 | 12 | 10.5 | 9 | 7.5 | 6.5 | 6 | 5 | 4.5 | 2 |

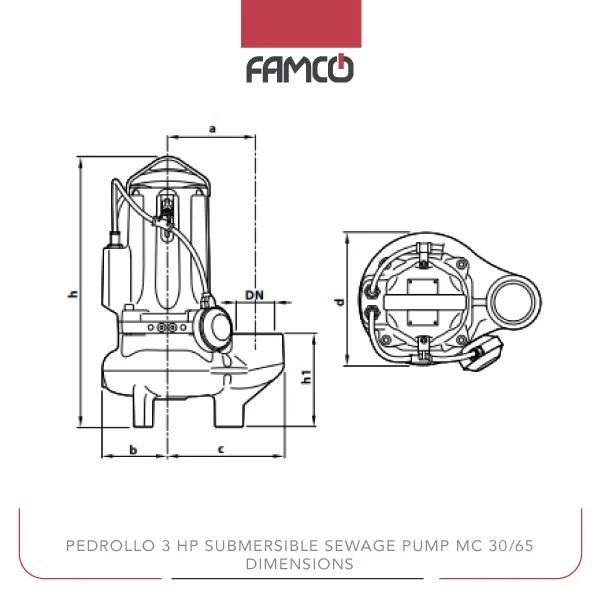

Pedrollo 3 HP Submersible Sewage Pump MC 30/65 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||||
| a | b | c | h | h1 | d | 1~ | 3~ |
| 180 | 120 | 240 | 547 | 521 | 201 | 50 | 46 |
Pedrollo 3 HP Submersible Sewage Pump MC 30/65 Applications
- Water circulation in industrial plants
- Irrigation systems for agriculture
- Fluid transfer in commercial buildings
- Cooling systems in manufacturing processes
Pedrollo 3 HP Submersible Sewage Pump MC 30/65 Benefits
- Durable cast iron construction for long-term use
- Corrosion-resistant stainless steel impeller
- Reliable double mechanical seals prevent leaks
- Versatile voltage options for different power supplies
Pedrollo 3 HP Submersible Sewage Pump MC 30/65 Price List
| No. | Name | Price |
| 1 | Pedrollo 3 HP Submersible Sewage Pump MC 30/65 Price | Contact us |
