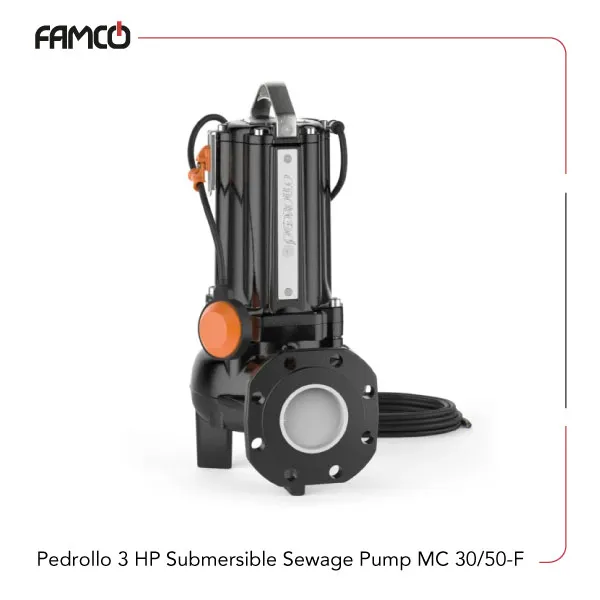

Pedrollo 3 HP Submersible Sewage Pump MC 30/50-F

Pedrollo 3 HP Submersible Sewage Pump MC 30/50-F Specifications

This product features a powerful 3 HP (2.2 kW) motor capable of delivering a maximum flow rate of 66 cubic meters per hour, which is equivalent to 1100 liters per minute. It can generate a maximum head of 24 meters, making it suitable for various pumping needs. This Pedrollo sewage pump is designed to operate efficiently at depths up to 10 meters below water level, provided an appropriately sized power cable is used. It handles liquid temperatures up to +40 °C, ensuring versatility in different environments. Additionally, it can transfer suspended solids up to 50 mm in diameter, making it effective for handling debris and solids in liquids. The minimum immersion required for optimal operation is 320 mm, ensuring proper submersion for effective pumping performance.

Specification	Value
Power (HP)	3
Power (kW)	2.2
Maximum Flow rate (m3/h)	66
Maximum Flow rate (l/min)	1100
Maximum head (m)	24
Depth below water level	up to 10 m (with an appropriately sized power cable)
Liquid temperature	up to +40 °C
Suspended solids transfer	up to Ø 50 mm
Minimum immersion	320 mm

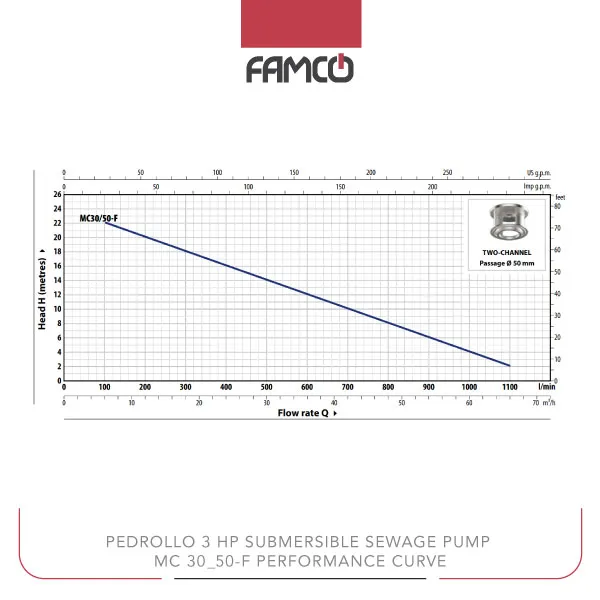

Pedrollo 3 HP Submersible Sewage Pump MC 30/50-F Performance Data

Q (m3/h)	0	6	12	18	24	30	36	42	48	54	60	66
Q (l/min)	0	100	200	300	400	500	600	700	800	900	1000	1100
Head (m)	24	22	20	18	16	14	12	10	8	6	4	2

Pedrollo 3 HP Submersible Sewage Pump MC 30/50-F Applications

• Water transfer in construction sites
• Irrigation in agriculture
• Drainage of flooded areas
• Handling of wastewater with solids



Pedrollo 3 HP Submersible Sewage Pump MC 30/50-F Benefits

• High flow rate for quick liquid transfer
• Capable of handling solids up to 50 mm
• Suitable for deep water applications up to 10 meters
• Operates efficiently with liquids up to +40 °C



Pedrollo 3 HP Submersible Sewage Pump MC 30/50-F Price List

No.	Name	Price
1	Pedrollo 3 HP Submersible Sewage Pump MC 30/50-F Price	Contact us
