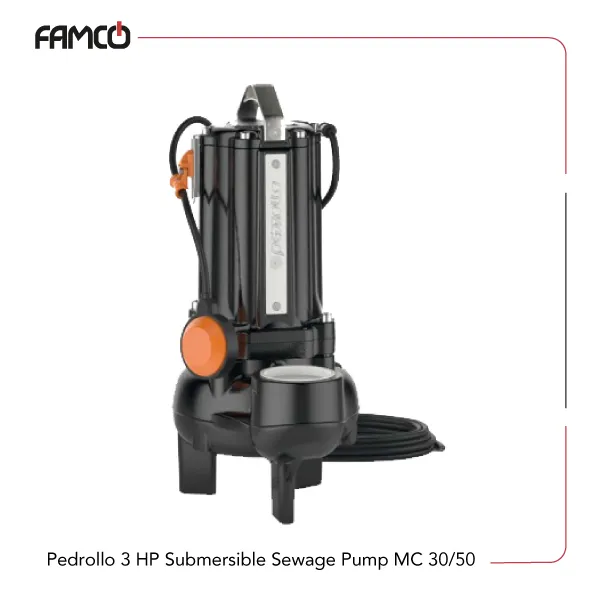

Pedrollo 3 HP Submersible Sewage Pump MC 30/50 Specifications
This pump features a durable cast iron body and a high-quality two-channel impeller made from micro-cast AISI 304 stainless steel, ensuring corrosion resistance and efficiency. It is equipped with double mechanical seals on both the pump and motor sides, utilizing silicon carbide, ceramic, graphite, and NBR materials for enhanced sealing and longevity. Operating at approximately 2900 RPM, the 30/50 Pedrollo submersible pump delivers a power output of 2.2 kW (3 HP), with a maximum head of 24 meters and a flow rate of 1100 liters per minute. The device supports both single-phase and three-phase power supplies, compatible with voltages of 230V and 400V. Its weight varies slightly depending on the phase type, with 47.8 kg for single-phase and 44 kg for three-phase models. Designed for reliable performance, this Pedrollo sewage pump is suitable for various industrial and domestic applications requiring efficient fluid transfer and high durability.
| Specification | Value |
| Pump body | Cast iron |
| Impeller | TWO-CHANNEL type in micro-cast AISI 304 stainless steel |
| Double mechanical seal on pump side | Silicon carbide/Silicon carbide/NBR |
| Double mechanical seal on motor side | Ceramic / Graphite / NBR |
| Speed (rpm) | ≈ 2900 |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Head (m) | 24 |
| Flow rate (l/min) | 1100 |
| Voltage (V) | Single and three-phase: 230, 400 |
| Weight (kg) | Single-phase: 47.8, Three-phase: 44 |

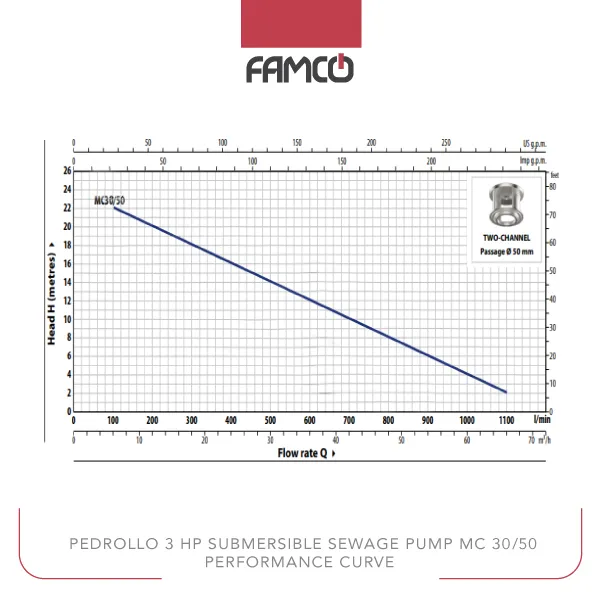

Pedrollo 3 HP Submersible Sewage Pump MC 30/50 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 |
| H metres | 24 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | 8 | 6 | 4 | 2 |
Pedrollo 3 HP Submersible Sewage Pump MC 30/50 Applications
- Water transfer in industrial settings
- Irrigation systems for agriculture
- Domestic water supply systems
- Fluid handling in factories
Pedrollo 3 HP Submersible Sewage Pump MC 30/50 Benefits
- High durability with cast iron body and stainless steel impeller
- Efficient performance with a flow rate of 1100 l/min
- Long-lasting double mechanical seals for reliability
- Flexible voltage options for different power supplies
Pedrollo 3 HP Submersible Sewage Pump MC 30/50 Price List
| No. | Name | Price |
| 1 | Pedrollo 3 HP Submersible Sewage Pump MC 30/50 Price | Contact us |
