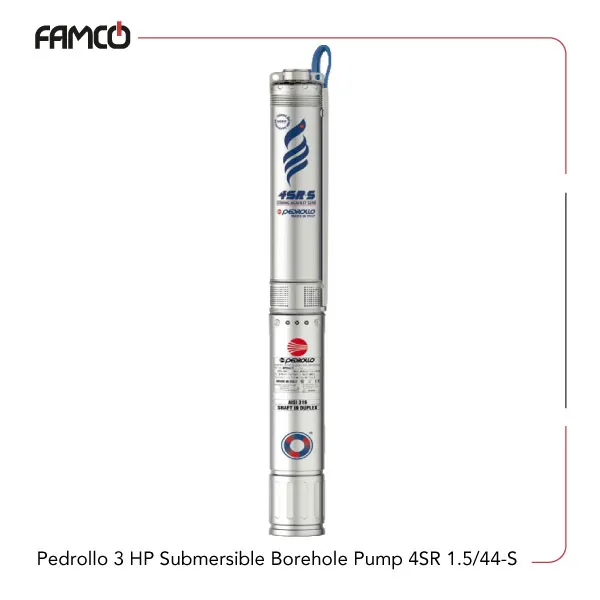

Pedrollo 3 HP Submersible Borehole Pump 4SR 1.5/44-S

Pedrollo 3 HP Submersible Borehole Pump 4SR 1.5/44-S Specifications

Pedrollo submersible borehole pump 4SR 1.5/44-S features a robust 2.2 kW (3 HP) motor, delivering a maximum flow rate of 2.7 m³/h (45 L/min) and a maximum head of 304 m. Equipped with a 1¼‑inch (DNM) connection, it is compatible with standard piping systems. Weighing 26.6 kg, the pump is durable yet easy to handle and install. It operates efficiently with liquids up to 40 °C and can be submerged to depths of up to 15 m. This Pedrollo submersible pump is capable of handling sand content up to 200 g/m³, ensuring reliable operation in environments with particulate matter. It supports both single-phase and three-phase power supplies, offering flexibility for various electrical setups and applications.

Specification	Value
Power (kW)	2.2
Power (HP)	3
Maximum Flow rate (m3/h)	2.7
Maximum Flow rate (l/min)	45
Maximum Head (m)	304
DNM	1″ 1/4
Weight (kg)	26.6
Liquid temperature	up to 40°C
Submersion depth	15 meters
Sand content	200 g/m3
Phase	Single- and three-phase

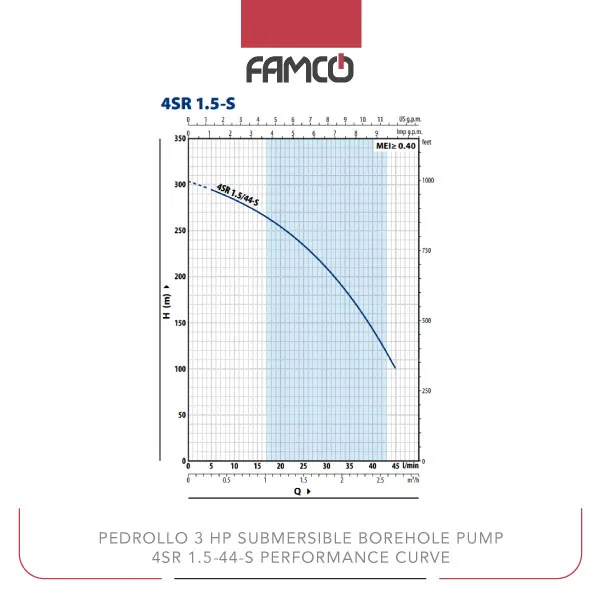

Pedrollo 3 HP Submersible Borehole Pump 4SR 1.5/44-S Performance Data

Q (m3/h)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
Q (l/min)	0	5	10	15	20	25	30	35	40	45
H (m)	304	295	284	271	255	235	210	180	144	100

Pedrollo 3 HP Submersible Borehole Pump 4SR 1.5/44-S Applications

• Water transfer in industrial facilities
• Drainage and flood control
• Irrigation systems
• Wastewater management



Pedrollo 3 HP Submersible Borehole Pump 4SR 1.5/44-S Benefits

• High flow rate and powerful head for demanding tasks
• Flexible power options with single and three-phase support
• Durable construction suitable for harsh environments
• Operates efficiently with moderate sand content and high submersion depth



Pedrollo 3 HP Submersible Borehole Pump 4SR 1.5/44-S Price List

No.	Name	Price
1	Pedrollo 3 HP Submersible Borehole Pump 4SR 1.5/44-S Price	Contact us
