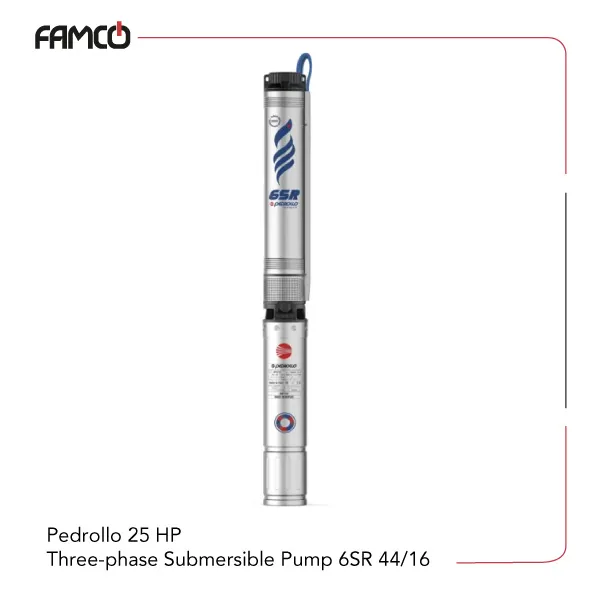

Pedrollo 25 HP Three-phase Submersible Pump 6SR 44/16 Specifications
This pump is designed for efficient water extraction and transfer in various applications. It features a powerful 18.5 kW (25 HP) motor, capable of delivering a maximum head of 198 meters and a flow rate of up to 1000 liters per minute. The pump operates in a vertical position and is suitable for continuous duty (S1), making it ideal for long-term use. It is compatible with well diameters of 6 inches (153 mm) and is equipped with durable Noryl™ impellers coated with a special elastomer resistant to sand, ensuring longevity in sandy environments. The diffusers are also made of Noryl™, and the pump shaft is constructed from corrosion-resistant AISI 304 stainless steel. Most Pedrollo pumps from the 6SR series, including this one, operate with liquid temperatures up to +35 °C and handle sand content up to 100 g/m³. The maximum depth below water level varies depending on the motor type, with 200 meters for 6PD motors and 150 meters for 6PSR motors. Since each motor type suits a unique usage pattern, you can ask our experts first to get the one suiting your needs. The 44/16 Pedrollo submersible pump starts approximately 20 times per hour at regular intervals, with a minimum cooling flow of 8 cm/s to prevent overheating. It can be powered by two motor options: 6PD rewindable and oil-filled or 6PSR rewindable and water-filled, providing flexibility for different operational environments. The weight of the pump is 107 kg for the PD model and 124 kg for the PSR model, ensuring sturdy construction and reliable performance in demanding conditions.
| Specification | Value |
| Power (kW) | 18.5 |
| Power (HP) | 25 |
| Head (m) | 198 |
| Max. flow rate (l/min) | 1000 |
| Voltage | three-phase configured |
| Operation | in vertical position |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ and coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Liquid temperature | up to +35 °C |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth | – 200 m with 6PD motors, – 150 m with 6PSR motors |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Motor options | 6PD rewindable and oil filled, 6PSR rewindable and water filled |
| Weight | 107 kg (PD), 124 kg (PSR) |

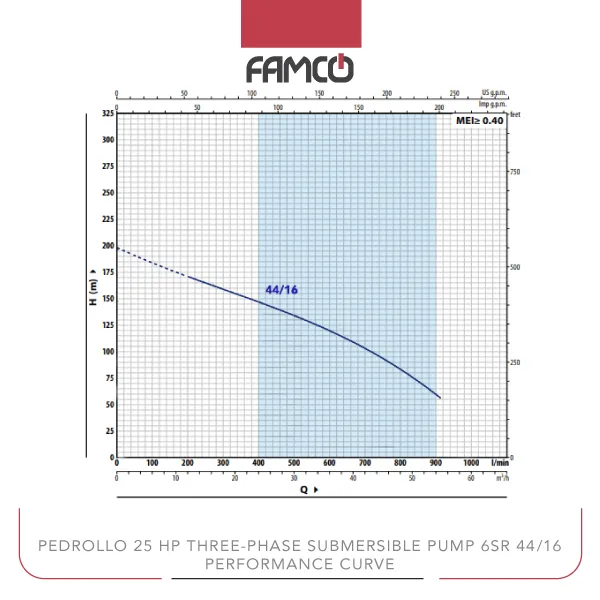

Pedrollo 25 HP Three-phase Submersible Pump 6SR 44/16 Performance Data
| m³/h | 0 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 |
| l/min | 0 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| head (m) | 198 | 171 | 159 | 147 | 134 | 120 | 103 | 83 | 59.5 | 31 |
Pedrollo 25 HP Three-phase Submersible Pump 6SR 44/16 Applications
- Groundwater extraction for irrigation
- Industrial water supply systems
- Deep well water pumping
- Municipal water management
Pedrollo 25 HP Three-phase Submersible Pump 6SR 44/16 Benefits
- High efficiency with powerful 25 HP motor
- Durable construction with corrosion-resistant materials
- Flexible motor options for different environments
- Suitable for deep water applications up to 200 meters
Pedrollo 25 HP Three-phase Submersible Pump 6SR 44/16 Price List
| No. | Name | Price |
| 1 | Pedrollo 25 HP Three-phase Submersible Pump 6SR 44/16 Price | Contact us |
