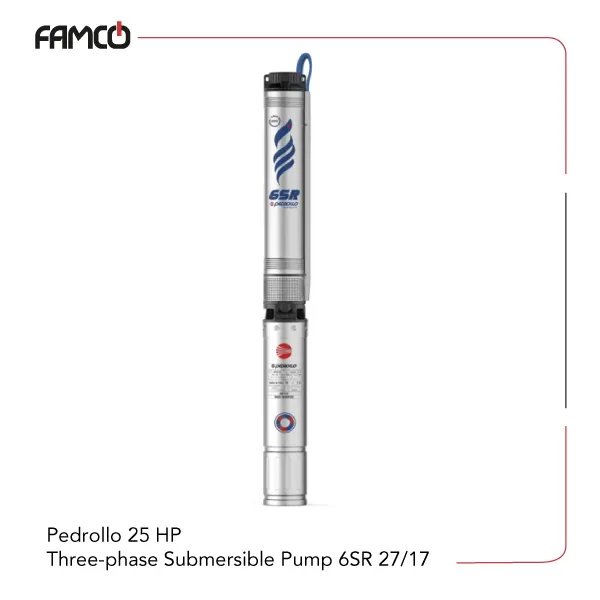

Pedrollo 25 HP Three-phase Submersible Pump 6SR 27/17 Specifications
This robust vertical pump is designed for demanding applications, featuring a powerful 18.5 kW (25 HP) motor. It can operate at a maximum head of 231 meters and handle a flow rate of up to 600 liters per minute. The pump is suitable for well diameters of 6 inches (153 mm) and is built for continuous duty (S1). It is equipped with durable Noryl™ impellers coated with a special elastomer resistant to sand, ensuring longevity in abrasive environments. The diffuser is also made of Noryl™, and the pump shaft is crafted from AISI 304 stainless steel, providing corrosion resistance. It can operate at depths up to 200 meters with 6PD motors or 150 meters with 6PSR motors, making it ideal for deep well applications. The pump can be supplied with two motor types: 6PD rewindable and oil filled or 6PSR rewindable and water filled, offering flexibility based on operational needs. It is designed to run continuously in a vertical position, with a maximum of 20 starts per hour at regular intervals. The minimum cooling flow required is 8 cm/s, ensuring proper thermal management during this Pedrollo submersible pump‘s operation. The maximum sand content it can handle is 100 g/m³, suitable for environments with moderate sand presence. The Pedrollo pump 6SR 27/17 weighs 97 kg with the PD motor and 114.6 kg with the PSR motor, indicating a sturdy build for heavy-duty use.
| Specification | Value |
| Power (kW) | 18.5 |
| Power (HP) | 25 |
| Head (m) | 231 |
| Max. flow rate (l/min) | 600 |
| Voltage | three-phase configured |
| Operation | in vertical position |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ and coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth | 200 m with 6PD motors, 150 m with 6PSR motors |
| Liquid temperature | up to +35 °C |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Motor options | 6PD rewindable and oil filled, 6PSR rewindable and water filled |
| Weight | 97 kg (PD), 114.6 kg (PSR) |

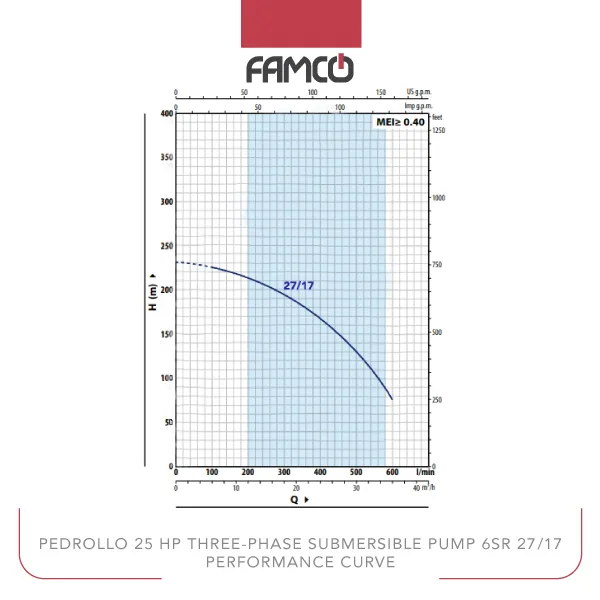

Pedrollo 25 HP Three-phase Submersible Pump 6SR 27/17 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 |
| head (m) | 231 | 224 | 211 | 194 | 170 | 126 | 75 |
Pedrollo 25 HP Three-phase Submersible Pump 6SR 27/17 Applications
- Deep well water extraction
- Industrial water supply systems
- Municipal water treatment plants
- Agricultural irrigation systems
Pedrollo 25 HP Three-phase Submersible Pump 6SR 27/17 Benefits
- High efficiency with 231-meter head capacity
- Durable construction with corrosion-resistant materials
- Flexible motor options for different environments
- Reliable continuous operation for demanding tasks
Ebara 25 HP Wastewater Lift Pump 150DL518.525 HP Three-phase Submersible Pump 6SR 27/17 Price List
| No. | Name | Price |
| 1 | Pedrollo 25 HP Three-phase Submersible Pump 6SR 27/17 Price | Contact us |
