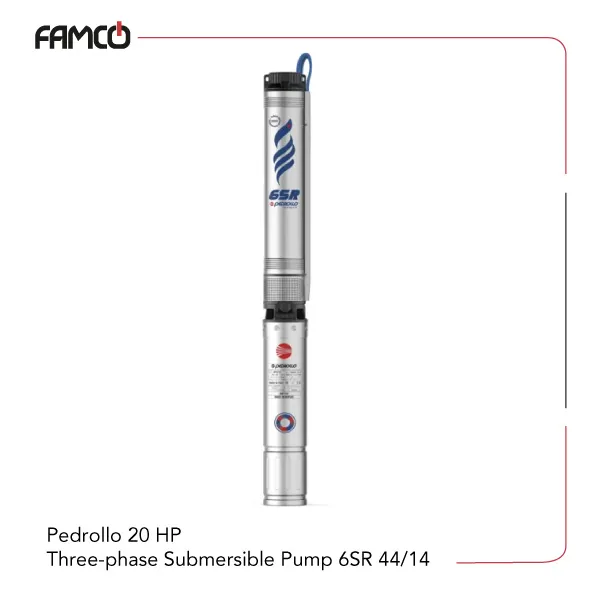

Pedrollo 20 HP Three-phase Submersible Pump 6SR 44/14 Specifications
This pump is designed for efficient water extraction in challenging conditions. It can operate at a maximum liquid temperature of +35 °C and handle water with sand content up to 100 grams per cubic meter. The pump’s maximum head is 174 meters, making it suitable for deep water applications. It can operate at depths up to 200 meters when equipped with 6PD motors, or up to 150 meters with 6PSR motors. The pump is designed to work in a vertical position and can start up to 20 times per hour at regular intervals, ensuring reliable performance. It requires a minimum cooling flow of 8 centimeters per second to prevent overheating. The power supply is three-phase, with a power output of 15 kW (20 HP). The maximum flow rate is 1000 liters per minute, making it suitable for high-volume water extraction. Built for continuous operation (S1 duty cycle), you can use this Pedrollo pump for every day and future tasks. It fits well in wells with a diameter of 6 inches or 153 millimeters. The impellers are made from Noryl™ and coated with a special elastomer resistant to sand, which helps prevent damage from abrasive particles. The diffusers are also made from Noryl™, contributing to the pump’s durability. The shaft is constructed from AISI 304 stainless steel, providing corrosion resistance and strength to this Pedrollo submersible pump‘s design. The pump’s weight varies depending on the motor type, with 95.1 kg for PD models and 115.5 kg for PSR models, ensuring stability during operation. Each of these motors suits exact usage patterns and materials, so be sure to contact our sales specialists to get advice before making your purchase.
| Specification | Value |
| Liquid temperature | +35 °C |
| Head (m) | 174 |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth below water level | – 200 m with 6PD motors, – 150 m with 6PSR motors |
| Operation | in vertical position |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 15 |
| Power (HP) | 20 |
| Max. flow rate (l/min) | 1000 |
| Voltage | three-phase configured |
| Continuous running duty | S1 |
| Suited for well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ and coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight (kg) | 95.1 (PD), 115.5 (PSR) |
Pedrollo 20 HP Three-phase Submersible Pump 6SR 44/14 Performance Data
| m³/h | 0 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 |
| l/min | 0 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| head (m) | 174 | 150 | 139 | 129 | 118 | 105 | 90 | 73 | 52.5 | 27.5 |
Pedrollo 20 HP Three-phase Submersible Pump 6SR 44/14 Applications
- Deep well water extraction
- Agricultural irrigation systems
- Municipal water supply
- Industrial water transfer
Pedrollo 20 HP Three-phase Submersible Pump 6SR 44/14 Benefits
- High durability with sand-resistant impellers and stainless steel shaft
- Suitable for deep water applications up to 200 meters
- Reliable continuous operation for long-term use
- Flexible motor options for different needs
Pedrollo 20 HP Three-phase Submersible Pump 6SR 44/14 Price List
| No. | Name | Price |
| 1 | Pedrollo 20 HP Three-phase Submersible Pump 6SR 44/14 Price | Contact us |
There are no reviews yet.
