Pedrollo 20 HP Three-phase Submersible Pump 6SR 36/15 Specifications
This pump is designed for efficient water extraction in various conditions. It operates at a maximum liquid temperature of +35°C and can handle a head height of up to 187 meters. The pump is suitable for water with sand content up to 100 grams per cubic meter, making it ideal for well applications with some sand presence. It can operate at depths of 200 meters with 6PD motors and 150 meters with 6PSR motors, providing flexibility based on the motor type. The pump runs vertically and can start up to 20 times per hour at regular intervals, ensuring reliable operation. It requires a minimum cooling flow of 8 centimeters per second to prevent overheating. Power-wise, this Pedrollo submersible pump has a 15 kW (20 HP) motor, and it can pump water at a maximum flow rate of 800 liters per minute. The device is configured for three-phase voltage, suitable for industrial or large-scale use. It is built for continuous operation (S1 duty cycle), making it reliable for long-term use. The pump fits well in wells with a diameter of 6 inches (153 mm). Its impellers are made from Noryl™ and coated with a special elastomer resistant to sand abrasion, while the diffusers are also made from Noryl™. The pump shaft of this Pedrollo pump is constructed from durable AISI 304 stainless steel, ensuring corrosion resistance. The weight varies depending on the motor type, with the PD version weighing 96.7 kg and the PSR version 117.1 kg. The pump can be supplied with either a 6PD rewindable, oil-filled motor or a 6PSR rewindable, water-filled motor, providing options based on operational needs.
| Specification | Value |
| Liquid temperature | +35 °C |
| Head (m) | 187 |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth | 6PD motors: 200 m, 6PSR motors: 150 m |
| Operation | Vertical position |
| Starts per hour | 20 |
| Minimum cooling flow | 8 cm/s |
| Power | kW: 15, HP: 20 |
| Flow rate | 800 l/min |
| Voltage | Three-phase configured |
| Duty cycle | Continuous running duty (S1) |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight | PD: 96.7, PSR: 117.1 |
| Extra | Motor options include 6PD rewindable and oil-filled or 6PSR rewindable and water-filled |

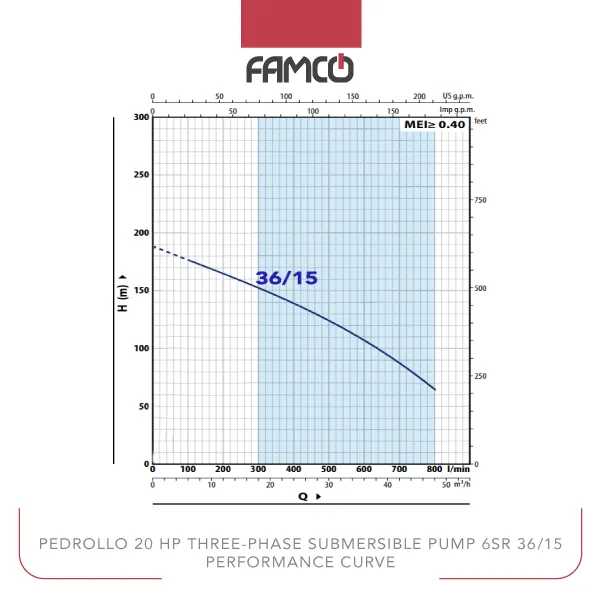

Pedrollo 20 HP Three-phase Submersible Pump 6SR 36/15 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| head (m) | 187 | 175 | 163 | 151 | 138 | 123 | 105 | 86 | 63 |
Pedrollo 20 HP Three-phase Submersible Pump 6SR 36/15 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Industrial water supply
- Municipal water management
Pedrollo 20 HP Three-phase Submersible Pump 6SR 36/15 Benefits
- High efficiency with a maximum flow rate of 800 l/min
- Durable construction with corrosion-resistant materials
- Flexible motor options for different depths and conditions
- Reliable continuous operation for long-term projects
Pedrollo 20 HP Three-phase Submersible Pump 6SR 36/15 Price List
| No. | Name | Price |
| 1 | Pedrollo 20 HP Three-phase Submersible Pump 6SR 36/15 Price | Contact us |
